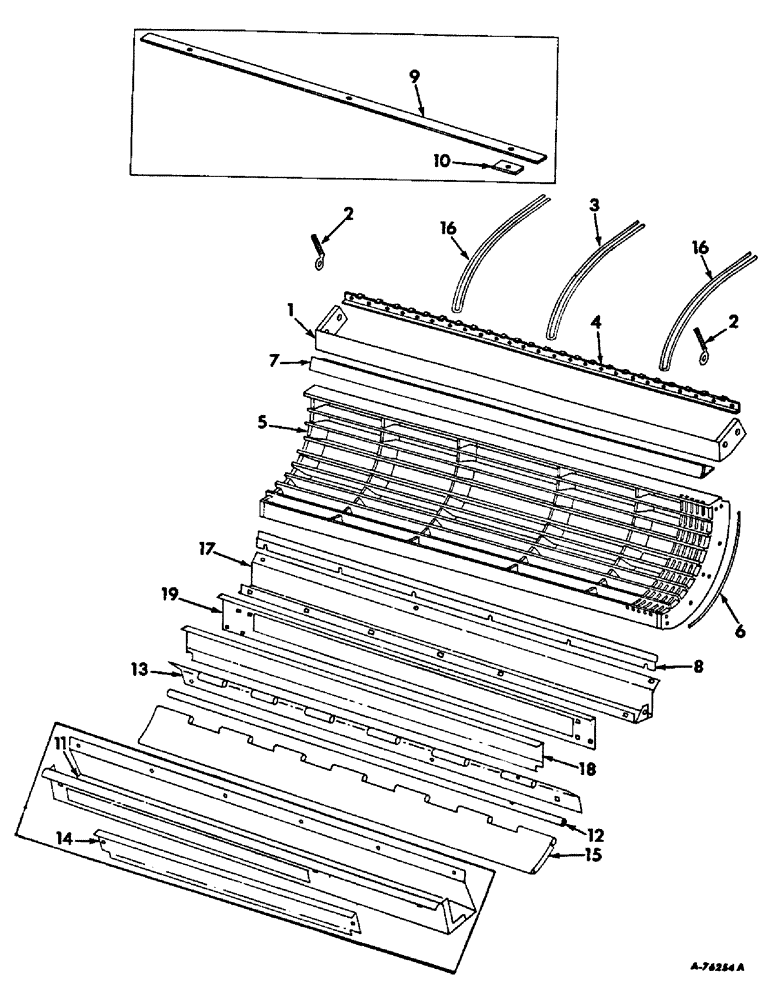

Запчасти Case IH 315 (R-19) - SEPARATOR, CYLINDER CONCAVE AND STONE RETARDER Separation

1

152091C91

ANGLE ASSY, finger grate

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

152094C1

BOLT, finger grate adjusting

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

168165C1

FINGER, grate, grain

25шт.

3

168166C1

FINGER, grate, rice

25шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

23шт.

120377

NUT,3/8" - 16, Gr 5

23шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

23шт.

4

619805R1

CLAMP, finger grate

1шт.

5

152212C91

CONCAVE ASSY, standard for grain hi wire

1шт.

5

152209C91

CONCAVE ASSY, grain low wire

1шт.

19574R1

BOLT, 3/8 x 5/8 hex-hd mach

6шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

3/8 x 7/8 C-Z hex-hd mach

3шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

3шт.

19420R1

BOLT, 7/16 x 3/4 C-Z hex-hd mach

2шт.

20717R1

BOLT, 7/16 x 7/8 C-Z hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

2шт.

6

152208C1

CONCAVE

WIRE, concave, grain hi wire standard

50шт.

6

152202C1

WIRE, conave, grain lo wire

50шт.

7

614793R1

REINFORCEMENT CONCAVE WIRE GRATE EXTENSION

1шт.

19574R1

BOLT, 3/8 x 3/4 C-Z hex-hd mach

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

8

619848R1

STRAP, concave wire retainer, special

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga

1шт.

9

153149C1

STRIP, concave filler, special

3шт.

10

935157R1

SPACER, concave filler strip, special

9шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

9шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

11

152219C91

SECTION ASSY, stone retarder, rasp bar cylinder, Serial no, Serial Range: 501-2297

1шт.

11

153377C91

RETARDER ASSY, stone, spike tooth cylinder, Serial no, Serial Range: 501-2297

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

19574R1

BOLT, 3/8 x 5/8 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

12

619740R1

ROD, feed plate hinge

1шт.

13

152225C11

HINGE ASSY, grain pan front seal plate extension, Serial no, Serial Range: 501-2297

1шт.

13

166408C11

HINGE ASSY, grain pan front seal plate extension, Serial no 2298 and above

1шт.

14

152223C1

REINFORCEMENT, stone retarder cover, Serial no, Serial Range: 501-2297

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

15

619776R1

PLATE, feed

1шт.

16

168647C1

FINGER, grate end, grain

2шт.

16

168650C1

FINGER, grate end, rice

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

161300C92

RETARDER ASSY, stone, rasp bar cylinder, Serial no 2298 and above

1шт.

17

166405C91

RETARDER ASSY, stone, spike tooth cylinder, Serial no 2298 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd whiz lock

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

166407C1

DOOR, stone retarder, Serial no 2298 and above

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

19

166406C1

REINFORCEMENT, stone retarder front

1шт.

19574R1

BOLT, 3/8 x 5/8 C-Z hex-hd mach

2шт.

142486

PIPE

PIN, 1/8 x 3/4 groove

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
