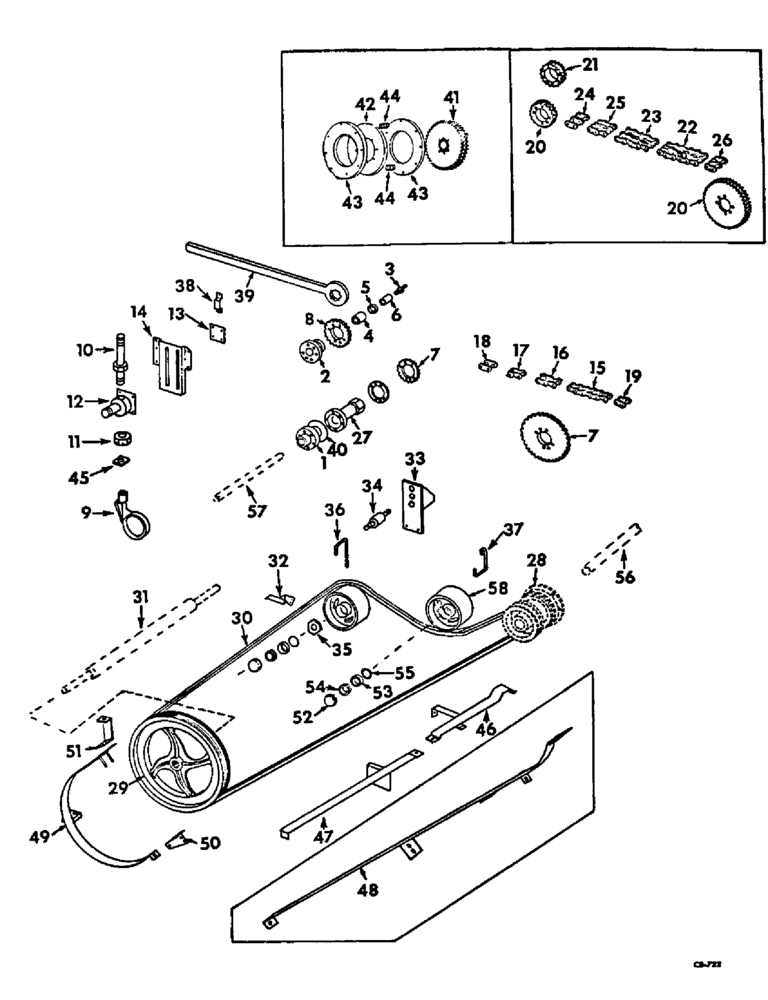

Запчасти Case IH 315 (R-12) - SEPARATOR, CYLINDER DRIVE, SLIP CLUTCH AND CYLINDER BEATER Separation

1

151716C1

HUB, cylinder shaft

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8 x 2-1/2 C-Z hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

152595C11

HUB, cylinder chain tightener sprocket

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 2-1/2 C-Z hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

4

152596C91

BEARING ASSY, cylinder drive chain tightener sprocket needle

2шт.

5

572826R91

SEAL ASSY, cylinder drive chain tightener sprocket oil

2шт.

6

152597C1

SLEEVE, cylinder drive tightener hub

1шт.

7

564474R2

SPROCKET ASSY.

SPROCKET, cylinder drive 43 T, grain, rice and perforated screen

1шт.

7

564476R2

SPROCKET, cylinder drive 25 T, grain, rice and perforated screen

1шт.

7

565376R2

SPROCKET ASSY.

SPROCKET, cylinder drive 30 T, grain, rice and perforated screen

1шт.

7

564475R2

SPROCKET ASSY.

SPROCKET, cylinder drive 20 T, special

1шт.

7

565377R2

SPROCKET, cylinder drive 30 T, special

1шт.

8

627886R1

SPROCKET, cylinder drive tightener 22 T, grain, rice and perforated

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

9

168532C1

SUPPORT, cylinder chain tightener

1шт.

10

153156C93

STUD ASSY, cylinder drive chain tightener

1шт.

125128

NUT, 5/8 C-Z slt hex

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

11

166961C1

NUT, 5/8 znp slt hex jam

1шт.

12

168597C1

PIVOT ASSY, cylinder drive tightener

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

4шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 C-Z hex jam

1шт.

231-1448

NUT,1/2"-13, GB

1/2 znd nylon insert lock

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

13

163639C2

PLATE, cylinder drive tightener

1шт.

14

163638C2

BRACKET, cylinder chain tightener

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

15

CHAIN ASSY, cylinder drive, grain, rice and perforated screen, Use 85 links from 10 ft roll marked 1793D, one connecting link 1786D and two offset links 1318D

1шт.

16

CHAIN ASSY, cylinder drive extension, grain, rice and perforated screen, Use 7 links from 10 ft roll marked 1793D and one connecting link 153863C91

1шт.

17

1316D

CHAIN LINK

LINK, roller

1шт.

18

153863C91

LINK, connecting

1шт.

19

1318D

LINK

offset

1шт.

20

569202R2

DRIVE SPROCKET

SPROCKET, cylinder drive double 43 T, double chain drive, edible bean

1шт.

20

153471C1

SPROCKET, cylinder drive double 25 T, double chain drive, edible bean

1шт.

20

569580R2

SPROCKET ASSY.

SPROCKET, cylinder drive double 30 T, double chain drive, edible bean

1шт.

20

569582R2

SPROCKET, cylinder drive double 48 T, double chain drive, edible bean

1шт.

20

569201R2

PINION

SPROCKET, cylinder drive double 20 T, special, double chain drive, edible bean

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8 x 1 C-Z hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

21

153470C1

SPROCKET, cylinder drive tightener double 22 T, double chain drive, edible bean

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

22

CHAIN ASSY, cylinder drive double roller, double chain drive, edible bean, Use 74 links from 10 ft roll marked 1355D and four connecting links 569206R91, one two pitch offset link 570988R91 and two plain links 1316D

1шт.

23

CHAIN ASSY, cylinder drive extension double roller, double chain drive, edible bean, Use 7 links from 10 ft roll marked 1355D and one connecting link 569206R91

1шт.

24

569206R91

CHAIN LINK

LINK, connecting

1шт.

25

1316D

CHAIN LINK

LINK, roller

1шт.

26

1313D

CHAIN LINK

LINK, offset

1шт.

27

152132C1

HUB, cylinder rocking

1шт.

28

PULLEY, separator drive, Refer to power take off unit for listing

1шт.

29

151717C1

PULLEY, beater driven, 21-1/2 OD, splined bore

1шт.

30

151730C2

V-BELT,0.49" W x 159.39" L

Cylinder Beater Drive 0.49" W x 159.39" L

1шт.

31

SHAFT W/SLEEVES, cylinder beater, Refer to cylinder beater unit for listing

1шт.

32

168840C1

SUPPORT ASSY, cylinder beater drive belt

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

33

168843C1

BRACKET ASSY, separator drive belt idler pulley

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

34

168763C1

SPINDLE, cylinder beater double idler pulley

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1/4 C-Z nylon insert

1шт.

21162R1

WASHER

1-1/32 x 2 x 3/16

1шт.

35

606546C1

NUT, 5/8-11 center lock

1шт.

36

168761C1

GUIDE, cylinder beater drive belt front

1шт.

120376

NUT,5/16"-18, G5

1шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 cdp hex lock

1шт.

37

168762C1

GUIDE, cylinder beater drive belt rear

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

38

153427C1

CLAMP, rocking bar support front

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

39

153389C91

TOOL ASSY, cylinder rocking wrench

1шт.

40

481540R1

WASHER

cylinder shaft

1шт.

41

570655R1

SPROCKET, cylinder drive double 48-T, cylinder slip clutch

1шт.

42

568854R2

RETAINER, slip clutch inner, cylinder slip clutch

1шт.

43

570607R1

RETAINER, slip clutch outer, cylinder slip clutch

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Elastic stop 3/8"-16, GB

8шт.

189303

SCREW, 3/8 x 3-1/8 C-Z hex-hd cap

8шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

8шт.

44

U13670

SPRING, slip clutch, cylinder slip clutch

8шт.

45

165674C2

PLATE, stud locking, cylinder slip clutch

1шт.

46

168012C1

GUIDE ASSY, cylinder beater drive belt rear, Serial no 2298 and above

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

47

168010C1

GUIDE ASSY, beater drive belt center, Serial no 2298 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

48

159750C91

GUIDE ASSY, cylinder beater drive belt rear, Serial no, Serial Range: 501-2297

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

49

152420C91

GUIDE ASSY, cylinder beater drive belt front

1шт.

50

152423C1

SUPPORT, belt guide

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

51

156170C2

BRACE, belt guide upper

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

52

602959R1

PLUG

CAP, cylinder beater idler pulley

1шт.

53

651814R1

BEARING CUP

BEARING, cylinder beater idler pulley tapered roller cup

2шт.

54

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, cylinder beater idler pulley tapered roller

2шт.

54

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

55

564405R1

RING, SNAP

RING, cylinder beater idler pulley snap

4шт.

56

SHAFT, main drive pulley, Refer to power take off unit for listing

1шт.

57

SHAFT, cylinder, Refer to rasp bar cylinder and adjusting lever for unit listing

1шт.

58

606555R1

PULLEY, cylinder beater idler, 8 in. OD, 1-3/4 in. bore

2шт.
