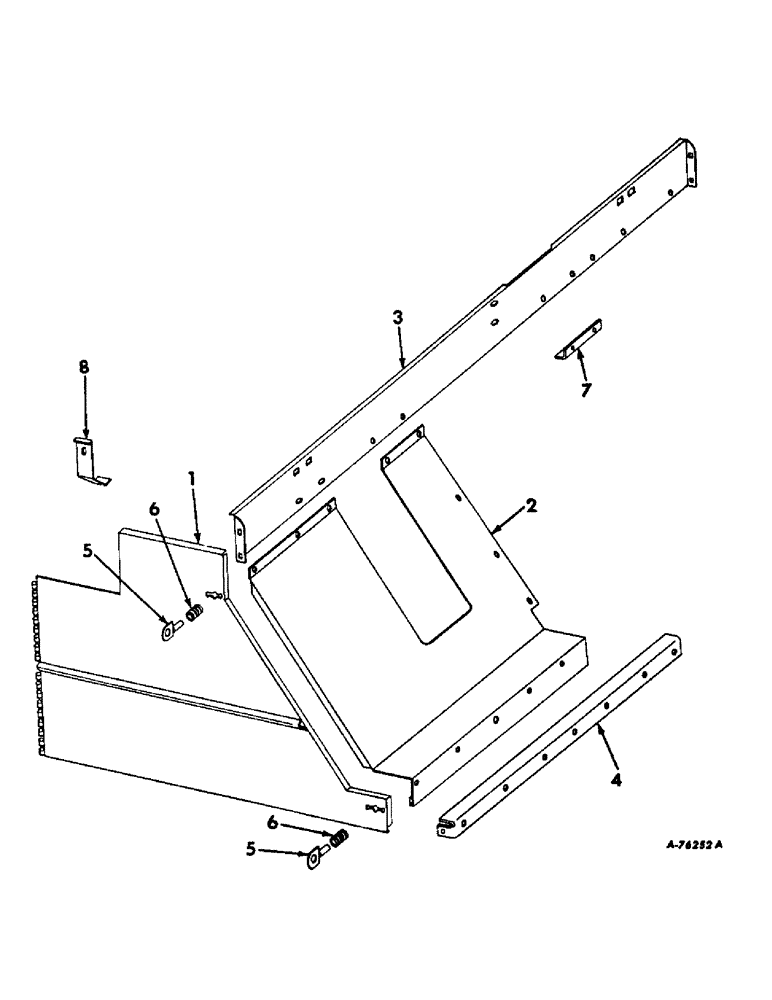

Запчасти Case IH 315 (R-06) - SEPARATOR, SEPARATOR SHIELDS Separation

1

152990C91

SHIELD ASSY, separator RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

5шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd whiz lock

5шт.

2

152996C1

SHIELD, front drive

1шт.

3

152998C1

REINFORCEMENT, shield support upper

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

12шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd whiz lock

12шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

152999C11

SUPPORT ASSY, RH front shield lower

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

1шт.

5

454502R1

LATCH

2шт.

6

M296

SPRING

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

2шт.

7

156384C11

ANGLE ASSY, shield upper reinforcement

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

166470C1

BAR, separator shield RH

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

935736R1

NUT, WING

NUT, 5/16 C-Z wing

1шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga C-Z

1шт.

134238R1

WASHER

111 x 1 x 16 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
