Запчасти Case IH 315 (R-05) - SEPARATOR, SEPARATOR HOOD Separation

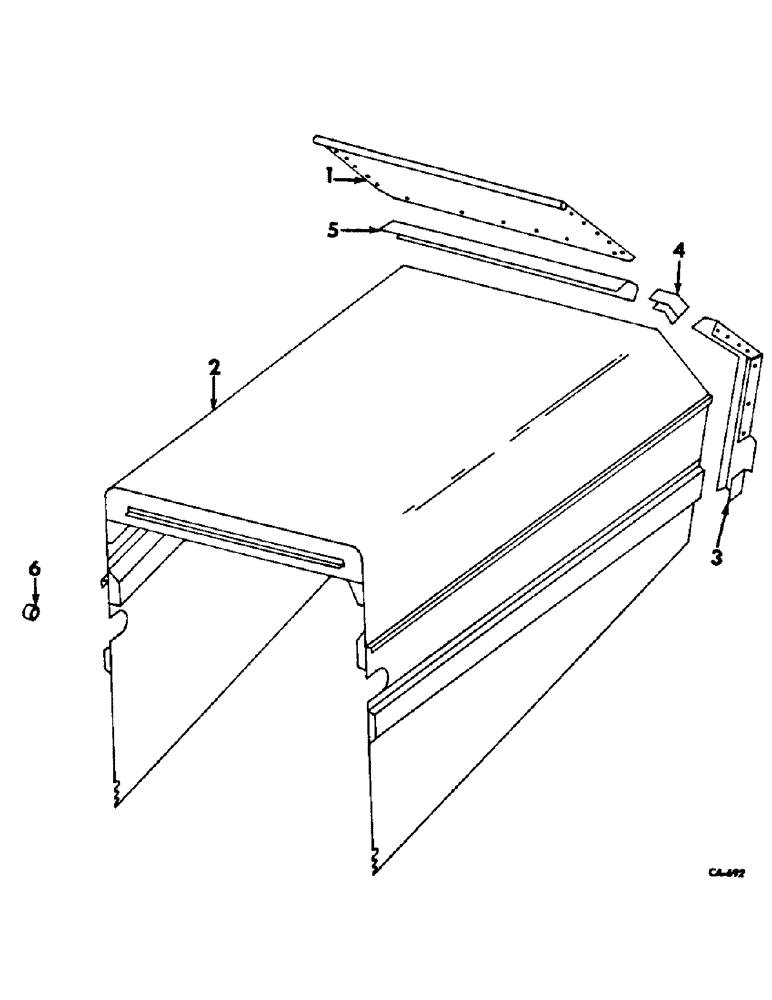

Схема запчастей Case IH 315 - (R-05) - SEPARATOR, SEPARATOR HOOD Separation
5
3
4
1
2
6

Артикул

Название

Примечание

Количество

1

152186C1

SECTION, separator hood back

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

2шт.

20816R1

BOLT, 3/8 x 1/2 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-pan-hd

16шт.

935874R1

SCREW, accommodation strip tap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

2

152136C91

HOOD ASSY, separator

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

3шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 C-Z hex-hd mach

16шт.

120376

NUT,5/16"-18, G5

3шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 C-Z slt-pan-hd mach

6шт.

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

SCREW, 5/16 x 1 C-Z hex-hd tapping

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

15шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

6шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

10шт.

3

155767C91

MOLDING ASSY, separator hood rear side trim LH

1шт.

3

155768C91

MOLDING ASSY, separator hood rear side trim RH

1шт.

152830C1

RIVET,Pop, 1/8" x 1/4"

1/8 pop

18шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd whiz lock

6шт.

4

152184C1

BRACKET, separator hood corner trim molding LH

1шт.

4

152185C1

BRACKET, separator hood corner trim molding RH

1шт.

445117

DIODE

1/4-20 flat spring

4шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

4шт.

5

152149C1

MOLDING, separator hood rear top trim

1шт.

152830C1

RIVET,Pop, 1/8" x 1/4"

1/8 pop

8шт.

6

M22657

SPACER, 3/8 x 3/4 std pipe

3шт.

Выбрано товаров: 32
