Запчасти Case IH 315 (R-02) - SEPARATOR, SEPARATOR AND RELATED PARTS Separation

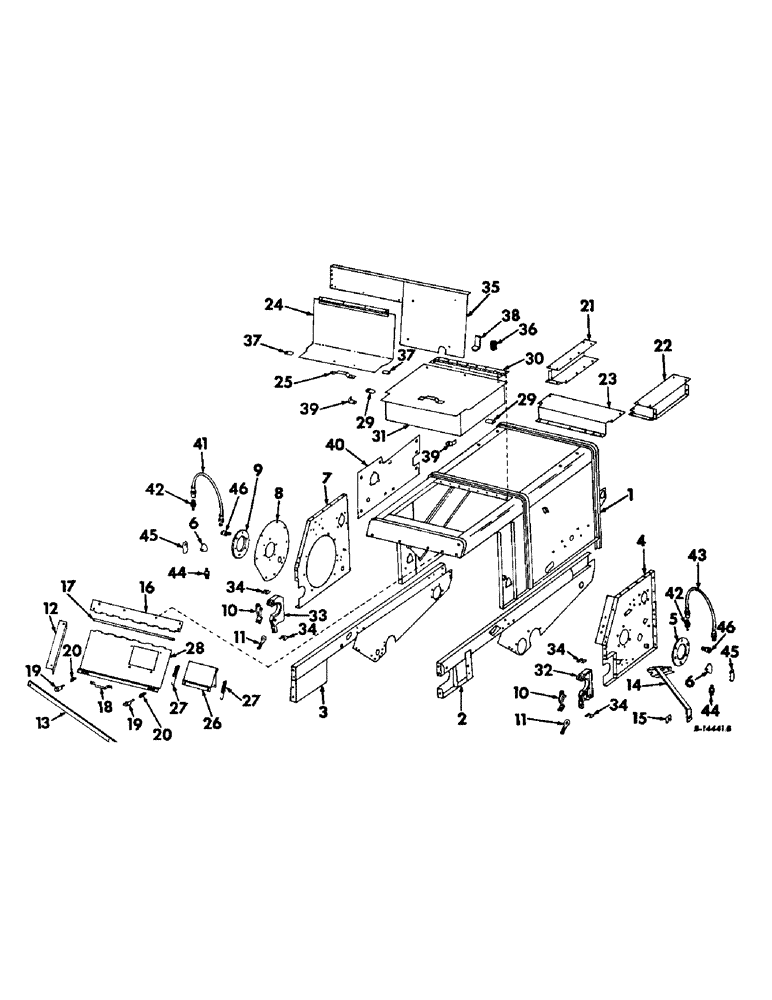

Схема запчастей Case IH 315 - (R-02) - SEPARATOR, SEPARATOR AND RELATED PARTS Separation
39
45
7
11
40
8
5
19
31
13
46
10
44
27
25
10
3
22
44
21
29
34
36
24
20
45
34
28
2
23
43
19
34
29
14
11
6
32
30
27
15
46
37
18
39
42
6
20
41
12
26
35
34
4
33
36
1
42
17
16
9

Артикул

Название

Примечание

Количество

1

152831C91

BODY ASSY, separator upper half

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

3шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd

25шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd

10шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

Q26

KEY,1/4" Sq x 1 1/4", Par

1/4 x 1-1/4 sq parallel

1шт.

120376

NUT,5/16"-18, G5

35шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

610069R1

NUT, 1/4 Tinnerman

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

935874R1

SCREW, no. 10 x 1/2 C-Z slt-hex-hd tapping

4шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 C-Z slt-truss hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

35шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

11шт.

2

152832C92

SIDE ASSY, separator lower LH

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

1шт.

21335R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 C-Z hex-hd type 4

15шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

4шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8 x 1-3/4 type 4 C-Z hex-hd

2шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8 x 2-1/4 type 4 znd hex-hd cap 2

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

10шт.

3

152833C92

SIDE ASSY, separator lower RH

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

3шт.

21335R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 C-Z hex-hd type 4

17шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

5шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

5шт.

21333R1

NUT,3/8"-16, G8

3/8 C-Z hex. type 4

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8 x 2-1/4 type 4 znd hex-hd cap

1шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8 x 2 type 4 C-Z hex-hd cap

3шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

SCREW, 3/8 x 1 znd hex-hd cap type 4

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

19шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

4

152391C91

SIDE ASSY, separator front LH, Serial no 700 and below

1шт.

4

163589C92

SIDE ASSY, separator front LH, Serial no, Serial Range: 701-2297

1шт.

4

168857C1

SIDE ASSY, separator front LH, Includes ref. nos. 6 and 9, Serial no 2298 and above

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach.

17шт.

21335R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 C-Z hex-hd type 4

4шт.

120376

NUT,5/16"-18, G5

17шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

17шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

153586C1

RETAINER, cylinder bearing housing, Serial no, Serial Range: 501-700

1шт.

5

163586C1

RETAINER, cylinder bearing housing, Serial no 701 and above

1шт.

20357R1

BOLT, 3/8 x 1-1/4 C-Z hex-hd type 4

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

13991R1

RIVET, 5/16 x 1-1/16 csk-hd

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

10659K

COVER, cyl and concave adj.

2шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

2шт.

7

152392C92

SIDE ASSY, separator front RH, Serial no, Serial Range: 501-2297

1шт.

7

168858C1

SIDE ASSY, separator front RH, Serial no 2298 and above

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

17шт.

21335R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 C-Z hex-hd type 4

4шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 C-Z hex-hd type 4

1шт.

120376

NUT,5/16"-18, G5

16шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

17шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

617065R1

WASHER, front grain pan hanger arm

1шт.

8

163590C91

RETAINER ASSY, cylinder

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

9

153586C1

RETAINER, cyl brg housing, Serial no 700 and below

1шт.

9

163586C1

RETAINER, cyl brg housing, Serial no 701 and above

1шт.

13991R1

RIVET, 5/16 x 1-1/16 csk-hd

6шт.

10

159262C1

RETAINER, feeder pivot

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

21880R1

PIN

5/8 x 1-5/8 C-Z st-hd

2шт.

11

935114R1

EYEBOLT, feeder pivot retainer cap.

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

4шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

21880R1

PIN

5/8 x 1-5/8 C-Z std-hd

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

12

152973C1

ANGLE, diagonal sway brace

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

152407C1

BAR, diagonal sway brace

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach.

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

152430C91

BRACE ASSY, sway

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1 znd hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

15

610434R1

SHIM, between axle flange and sway bar

1шт.

16

152450C1

HINGE, front cyl door

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

5шт.

17

568725R1

ROD, front cyl door hinge

1шт.

18

614920R1

HANDLE, cyl front door

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

454502R1

LATCH

cyl front door

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

20

M296

SPRING

cyl front door latch

2шт.

21

152624C92

SECTION ASSY, separator top door RH

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

13шт.

120376

NUT,5/16"-18, G5

13шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

22

154734C92

REINFORCEMENT ASSY, separator top door LH

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

13шт.

120376

NUT,5/16"-18, G5

13шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

23

152834C1

SECTION, separator front top

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

6шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 C-Z hex-hd tapping

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

619855R1

WASHER

11/32 x 3/4 x 1L ga C-Z

6шт.

24

168415C1

DOOR ASSY, separator front

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

25

614920R1

HANDLE, separator front door

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 104 x 1/2 C-Z sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

154309C91

DOOR ASSY, tailing inspection

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

2шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

578092R1

SPRING, tailings inspection door

2шт.

117923

PIN, SPLIT (COTTER)

PIN, 1/8 x 3/4 C-Z cot.

2шт.

28

164510C91

DOOR ASSY, cyl front

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd whiz lock

3шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

Whiz-lock Hex Flg, 5/16"-18 x 1", Serr

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

168327C1

CLIP, separator front top cover, Serial no 2298 and above

4шт.

939927R1

SCREW, thumb

4шт.

142619R1

WASHER, 13/32 x 3/4 x 11 ga C-Z

4шт.

30

153814C91

HINGE ASSY, separator door inner

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4-14 x 1/2 C-Z hex-hd tap.

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

31

153810C91

DOOR ASSY, separator top

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss hd lock

3шт.

32

155656C1

SUPPORT, feeder pivot LH, Serial no, Serial Range: 501-2297

1шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z type 4 hex

5шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 C-Z type 4 hex-hd cap

2шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2 x 1-3/4 C-Z type 4 hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

32

168747C1

SUPPORT, feeder pivot LH, Serial no 2298 and above

1шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex. type 4

5шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2 x 1-3/4 C-Z hex-hd cap type 4

4шт.

236485R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

SCREW, 1/2 x 2-1/4 znd hex-hd cap type 4

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

22245R1

WASHER, 17/32 x 1 x 7 ga C-Z

5шт.

33

155657C1

SUPPORT, feeder pivot RH, Serial no, Serial Range: 501-2297

1шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z type 4 hex

5шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 C-Z type 4 hex-hd cap

2шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2 x 1-3/4 C-Z type 4 hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

33

168748C1

SUPPORT, feeder pivot RH, Serial no 2298 and above

1шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z type 4 hex.

5шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2 x 1-3/4 C-Z hex-hd cap type 4

4шт.

236485R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

SCREW, 1/2 x 2-1/4 C-Z hex-hd cap type 4

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

178373

WASHER, 17/32 x 1 x 16 ga C-Z

1шт.

22245R1

WASHER, 17/32 x 1 x 7 ga C-Z

5шт.

34

155713C1

STRIP, feeder pivot support .06

1шт.

35

155912C91

SECTION ASSY, front

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach.

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

3шт.

120376

NUT,5/16"-18, G5

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss hd lock

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

36

7422T

SPRING

front door

1шт.

37

168327C1

CLIP, separator top door

2шт.

159840R1

SCREW, 5/16 thumb

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

38

583353R1

CLIP, front door hold-up, Serial no 2298 and above

1шт.

18768R1

BOLT,Hex, 5/16"-18 x 2 1/4", G2

5/16 x 2-1/4 znd hex-hd mach

1шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 cdp prevailing torque type hex. lock

1шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

39

583353R1

CLIP, separator front top cover

2шт.

40

168708C1

PLATE, separator RH side, Serial no 2298 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

9шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/l8 x 1 znd sq-nk crg

3шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

9шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

41

937773R91

HOSE,3.56 mm ID x 304.80 mm,

Right-Hand Cylinder Bearing Housing Retainer, Serial No. 2298 and Above 3.56 mm ID x 304.80 mm

1шт.

144574

RIGID TUBE

NUT, 1/8 pipe lock

1шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub, S/N 2298 and above

2шт.

43

168361C1

HOSE,0.14" ID x 19.00"

- LH cylinder bearing housing retainer, S/N 2298 and above 0.14" ID x 19.00"

1шт.

144574

RIGID TUBE

NUT, 1/8 pipe lock

1шт.

44

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 NS 45 deg angle lub, S/N 2298 and above

2шт.

45

163514C1

CLIP, cylinder and concave adjusting door

2шт.

46

20204R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1/4-28 taper 90 deg angle lub fitting 2, lub fitting 1, Serial no 2298 and above

1шт.

Выбрано товаров: 233
