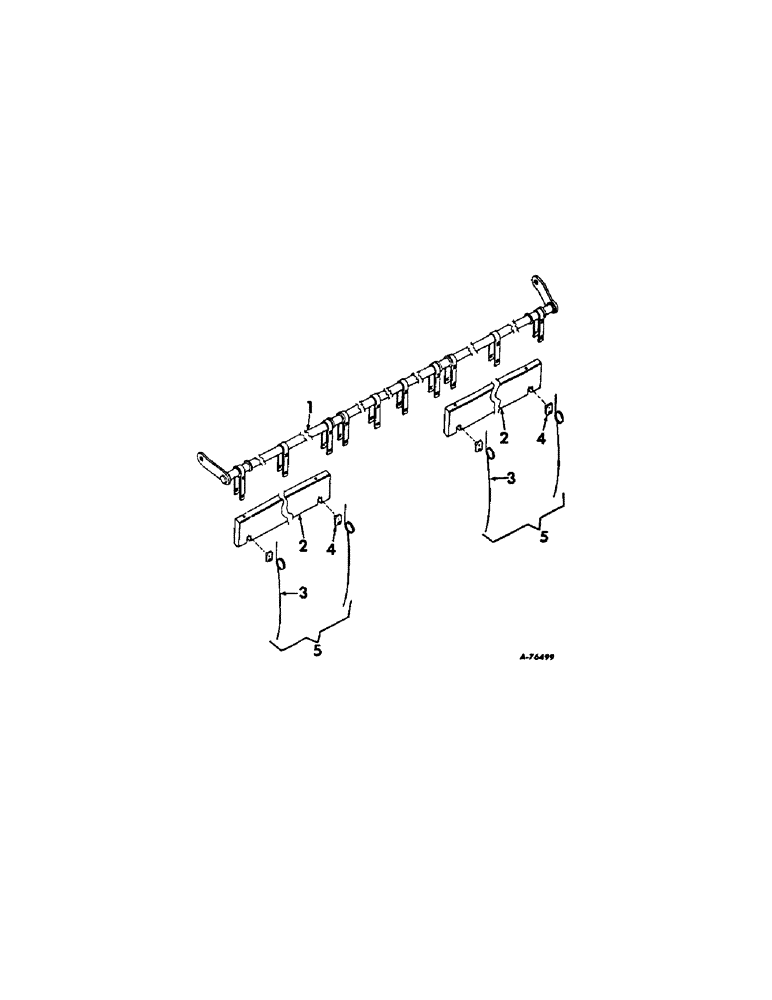

Запчасти Case IH 315 (Q-39) - PLATFORMS, BAT ASSY, 10-FOOT Platforms

167631C91

BAT ASSY, batshaft 10-ft, Consists of the following

1шт.

1

167640C1

BATSHAFT

1шт.

23687R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1 3/8", Gr 2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1 3/8", G2

16шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4-20 C-Z hex. lock

16шт.

2

BAT, wood, Not serviced separately order bat assy 598196R91

2шт.

3

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat

24шт.

4

592616R1

CLIP

riveted tine

24шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

truss-hd tubular

24шт.

5

598196R91

BAT

ASSY, Includes ref nos. 2, 3 and 4

1шт.
