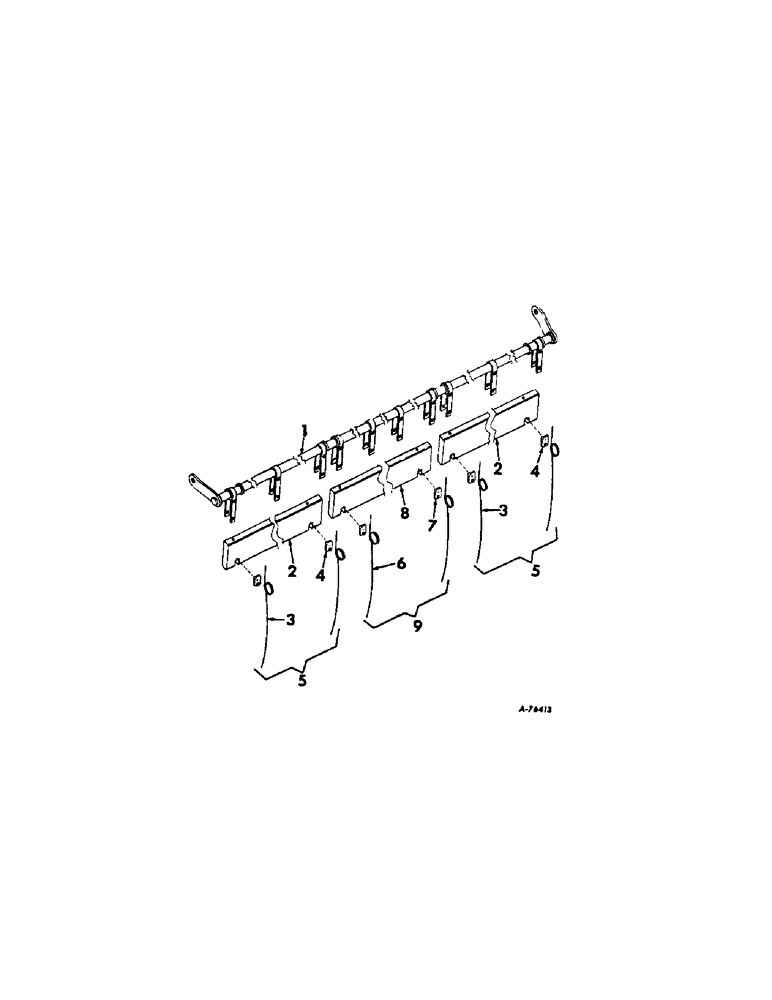

Запчасти Case IH 315 (Q-39[A]) - PLATFORMS, BAT ASSY, 13-FOOT Platforms

167600C91

BAT

ASSY, batshaft 13-ft, Consists of the following

1шт.

1

167682C1

SHAFT ASSY.

BATSHAFT

1шт.

23687R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1 3/8", Gr 2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1 3/8", G2

20шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4-20 C-Z hex. lock

20шт.

2

BAT, wood, Not serviced separately order bat assy 167681C91

2шт.

3

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat

20шт.

4

592616R1

CLIP

riveted tine

20шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

truss-hd tubular

20шт.

5

167681C91

BAT ASSY.

BAT ASSY, Includes ref nos. 2, 3 and 4

2шт.

6

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat

11шт.

7

592616R1

CLIP

riveted tine

11шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

truss-hd tubular

11шт.

8

BAT, wood, Not serviced separately order bat assy 167677C91

1шт.

9

167677C91

BAT

ASSY, Includes ref nos, 6, 7 and 8

1шт.
