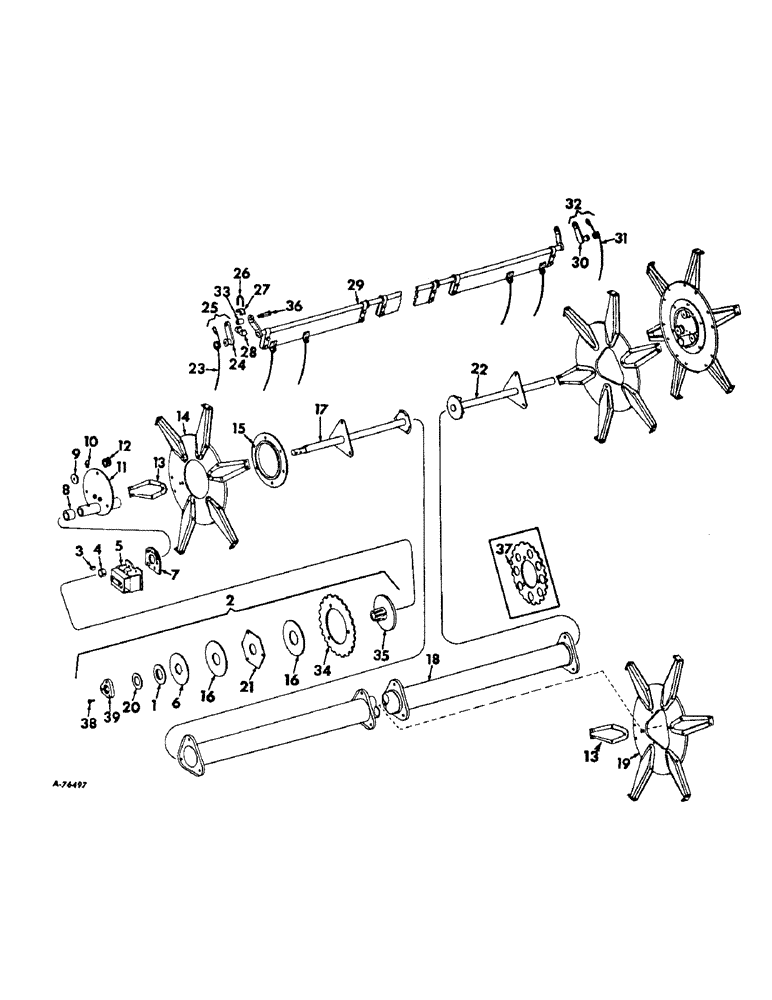

Запчасти Case IH 315 (Q-37) - PLATFORMS, PICKUP REELS, HART CARTER Platforms

1

167626C1

WASHER

2-1/8 x 4-1/4 Belleville

5шт.

2

165329C91

COVER ASSY

CLUTCH ASSY, reel drive slip 29T, Not for use w/hyd reel drive, Includes ref nos. 1, 3, 6, 16, 20, 21, 34, 35, 38 and 39

1шт.

3

117977

WOODRUFF KEY

KEY, 5/16 x 1 Woodruff, in reel driven sprocket hub

1шт.

4

598243R1

NO LONGER SERVICED

COLLAR

2шт.

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

SCREW, 3/8-24 x 5/16 hex-soc-hd cup pt set

4шт.

5

167635C1

BRACKET, eccentric adjusting LH

1шт.

5

167636C1

BRACKET, eccentric adjusting RH

1шт.

17087R1

SCREW, 7/16-14 x 1-1/2 C-Z sq-hd cup pt set

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

7/16-14 C-Z hex. jam

2шт.

20328

PIN, 3/16 x 1-1/2 C-Z cotter

1шт.

6

167627C1

WASHER

2 x 7 x 3/16 special hex.

1шт.

7

598217R1

PLATE

eccentric adjusting

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 znp hex-hd mach

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

8

167666C1

BUSHING

eccentric roller frame

4шт.

9

167685C1

KNOB

pitch adjustment

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

4шт.

11

598241R11

HUB ASSY.

FRAME ASSY, eccentric roller, Includes ref nos. 8 and 10

2шт.

12

598242R91

ROLLER BEARING,0.376" ID x 2.25" OD x 1"

BEARING ASSY, roller ball

6шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

13

167657C1

ARM

ASSY, eccentric reel

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 znp hex-hd mach

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znp hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

167658C1

PLATE

eccentric spider

2шт.

15

167661C1

RING,271.65mm ID x 320.68mm OD

eccentric control

2шт.

16

167625C1

FRICTION WASHER

friction 2-1/8 x 7

2шт.

17

167634C1

SHAFT, driving end

1шт.

18

167632C1

SHAFT, center 10-ft

1шт.

18

167601C1

SHAFT

center 13-ft

1шт.

18

167614C1

SHAFT, center 14-ft

1шт.

18

167649C1

SHAFT, center 16-ft

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

443335

BOLT

NUT, 3/8-16 cdp hex. lock

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

9шт.

19

167653C1

PLATE

spider

4шт.

20

167610C1

WASHER

2-1/8 x 3-1/2 x 1/4 special

1шт.

21

167628C1

WASHER

2-1/8 x 7 x 3/16 friction plate

1шт.

22

167608C1

SHAFT

driven end

1шт.

23

167652C1

TINE,Coiled, 1 Prong, 437mm L

FINGER, aux pickup LH

6шт.

24

592627R21

STRAP

ASSY, finger LH

6шт.

25

167605C91

TINE

FINGER ASSY, aux pickup LH, Includes ref nos. 23 and 24

6шт.

26

598236R1

U-BOLT,U, 1/4" - 20

1/4-20 x 2

1шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4-20 cdp hex. lock

1шт.

27

598235R1

BEARING CAP,1.025"

bearing

1шт.

28

598234R1

BASE

bearing

1шт.

29

167631C91

BAT ASSY, batshaft, 10-ft, For components see list of parts under bat assy, 10-ft

6шт.

29

167600C91

BAT

ASSY, batshaft, 13-ft, For components see list of parts under bat assy, 13-ft

6шт.

29

167613C91

BAT

ASSY, batshaft, 14-ft, For components see list of parts under bat assy, 14-ft

6шт.

29

167647C91

BAT ASSY, batshaft, 16-ft, For components see list of parts under bat assy, 16-ft

6шт.

30

592627R21

STRAP

ASSY, finger RH

6шт.

31

167651C1

TORSION SPRING

FINGER, aux pickup RH

6шт.

32

167606C91

TINE

FINGER ASSY, aux pickup RH, Includes ref nos. 30 and 31

6шт.

33

598246R1

SPACER

tubing

12шт.

34

167623C1

SPROCKET ASSY.

SPROCKET, slip clutch 29T

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16 x 5/8 znd hex-hd cap

3шт.

35

167624C1

HUB

slip cluth

1шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16-18 x 3/8 C-Z hex-soc-hd cup pt set

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

36

592631R1

BOLT

1/2 x 2-11/16 hex. shank

12шт.

472154R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-20 hex. lock

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga C-Z

12шт.

37

168310C1

SPROCKET ASSY.

SPROCKET, reel driven 50T, slow speed special, Not used w/hyd reel drive

1шт.

38

20900R1

SET SCREW

1/2 x 1 C-Z sq-hd cup pt set

3шт.

39

167629C1

NUT

adjustment

1шт.
