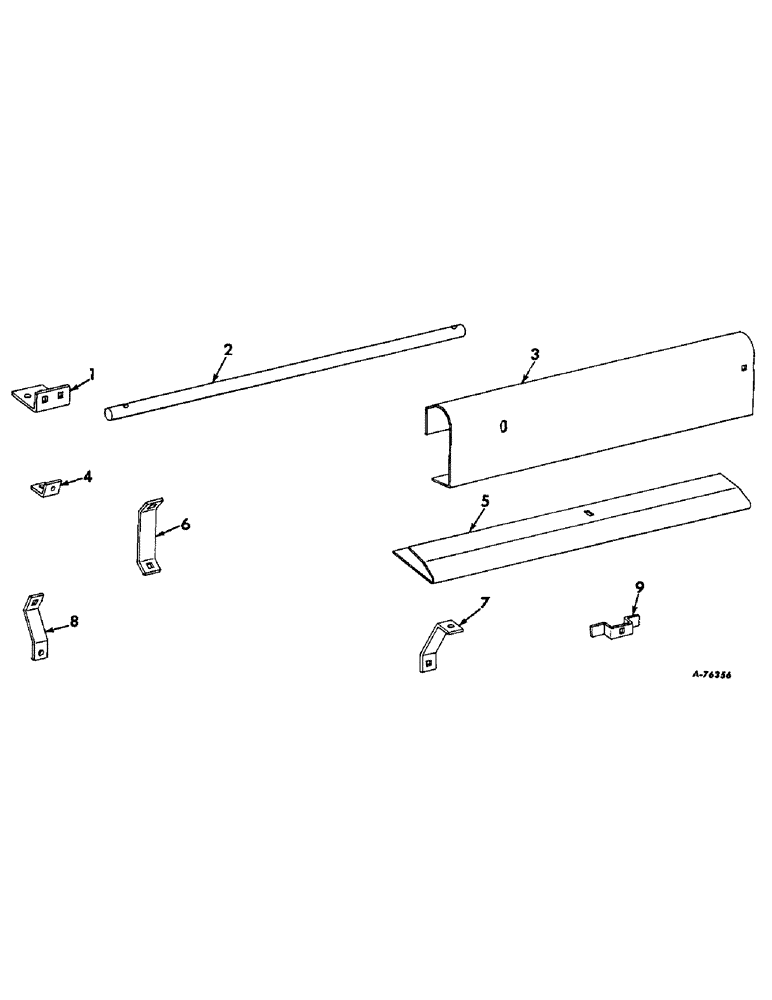

Запчасти Case IH 315 (Q-36) - PLATFORMS, WINDROW PICKUP, BELT TYPE, COMPLETING PARTS Platforms

1

161371C1

BRACKET, pickup support, 1 used 10-ft pickup for 13-ft platform, 2 used 10-ft pickup for 14-ft platform, 2 used 12-ft pickup for 14-ft platform

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

2

161356C1

JACKSHAFT, upper roll, 10-ft pickup for 13-ft platform, 10-ft pickup for 14-ft platform

1шт.

2

161355C1

JACKSHAFT, upper roll, 10-ft pickup for 10-ft platform

1шт.

3

161363C1

SHIELD, roll jackshaft, 10-ft pickup for 13-ft platform, 10-ft pickup for 14-ft platform

1шт.

4

161357C1

SUPPORT, jackshaft shield, 10-ft pickup for 13-ft platform, 10-ft pickup for 14-ft platform

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

161361C1

SHIELD, knife guard, 10-ft pickup for 14-ft platform

1шт.

5

161362C1

SHIELD, knife guard, 10-ft pickup for 13-ft platform

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

161360C1

BRACE, jackshaft shield, platform w/cutting parts, Not 10-ft pickup for 10-ft platform

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

161358C1

BRACE, jackshaft shield, less cutting parts

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

161359C1

BRACE, jackshaft shield, less cutting parts

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

23658K

CLIP, guard shield, 10-ft pickup for 13-ft and 14-ft platforms and 12-ft pickup for 14-ft platform

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
