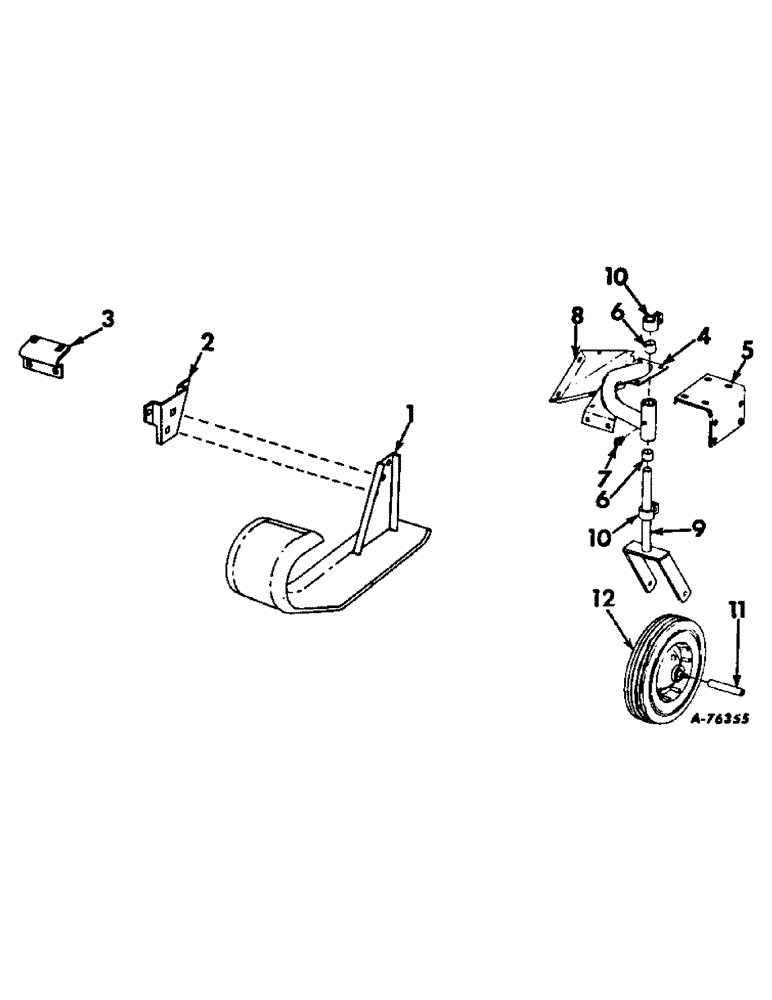

Запчасти Case IH 315 (Q-35) - PLATFORMS, WINDROW PICKUP, BELT TYPE, RUNNER AND GAUGE WHEELS Platforms

1

626658R91

RUNNER ASSY, LH

1шт.

1

626659R91

RUNNER ASSY, RH

1шт.

2

626638R1

BRACKET, rear support LH

1шт.

2

626639R1

BRACKET, rear support RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

626680R1

BRACKET, runner pivot

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

155261C91

SUPPORT W/BUSHING, gauge wheel LH

1шт.

4

155262C91

SUPPORT W/BUSHING, gauge wheel RH, Includes ref no 6

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

632998R91

STIFFENER ASSY, wheel anchor

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

6

454172R1

BUSHING

wheel pivot shaft housing

4шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 ptf str lub

2шт.

8

633002R1

SHIELD, wheel support LH

1шт.

8

633003R1

SHIELD, wheel support RH

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

9

632993R91

YOKE ASSY, gauge wheel

2шт.

19279R1

BOLT, 1/2 x 5-3/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga C-Z

4шт.

10

955250R1

COLLAR, yoke pivot shaft

1шт.

20314

BOLT, 1/2 x 2-1/2 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

11

632990R1

BUSHING

SLEEVE, gauge wheel hub

2шт.

16066R1

WASHER

25/32 x 1-1/2 x 16 ga

4шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

4шт.

551658R1

WASHER

25/32 x 1-1/2 x 22 ga

4шт.

12

633001R92

WHEEL W/TIRE, gauge

2шт.
