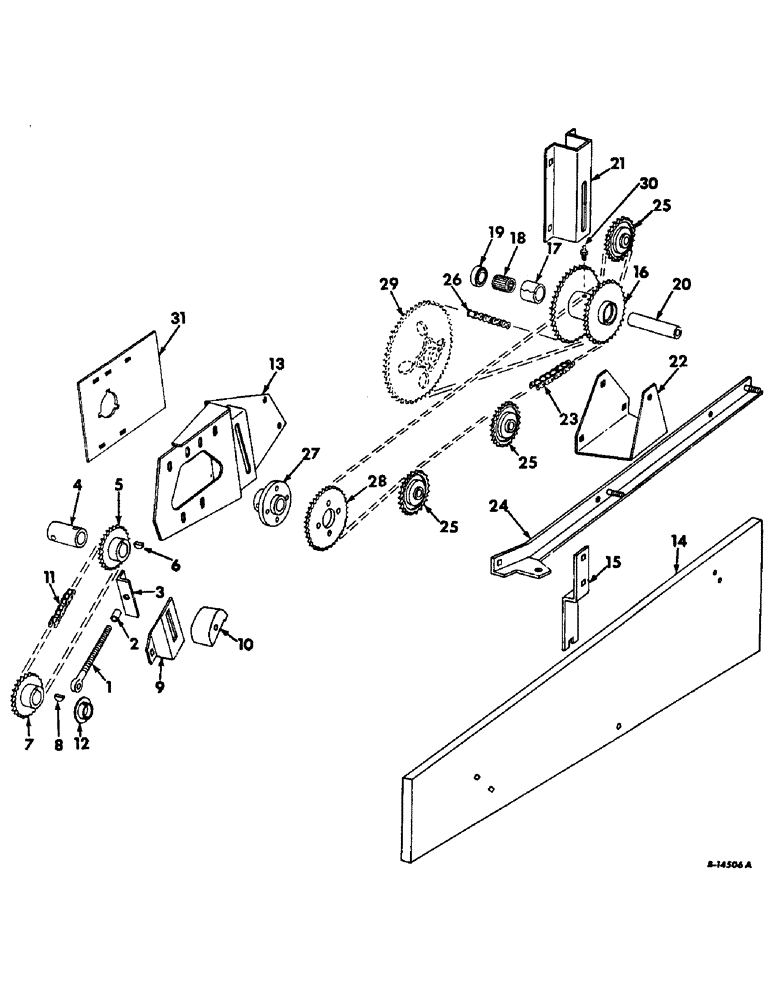

Запчасти Case IH 315 (Q-33) - PLATFORMS, WINDROW PICKUP, BELT TYPE, DRIVE Platforms

1

935380R1

BOLT,1/2" - 13 x 5.50"

roller tightener

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

2

585389R1

SPACER, roller tightener bolt

2шт.

3

935379R1

BRACKET

ANGLE, lower roller tightener

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

626627R1

COUPLING, drive shaft, 10-ft

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

566137R1

PIN, 5/16 x 1-7/8 std-hd

2шт.

5

631594R91

SPROCKET ASSY, lower roller drive, 10-ft

1шт.

5

155088C91

SPROCKET ASSY, lower roller drive, 12-ft

1шт.

648002

KNIFE

1/8" x 3/4", 12-ft

1шт.

21891R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2 C-Z std-hd, 12-ft

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

KEY, 1/4 x 1 Woodruff, 10-ft

1шт.

7

631590R91

SPROCKET ASSY, lower roller driven

1шт.

8

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

KEY, 1/4 x 1 Woodruff

1шт.

9

631593R1

BRACKET, drive chain tightener

1шт.

10

575874R1

BLOCK

drive chain tightener

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

11

CHAIN, lower roller drive, Use 83 links from 10-ft roll marked 1791D, one roller link 11309D, two connecting links 1310D and one offset link 1315D

1шт.

12

16290K

CONCAVE

COLLAR, lower LH shaft

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

13

161382C91

BRACKET ASSY, outer brg

1шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 C-Z sq-hd crg

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach.

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

8шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq hole x 1-1/4 x 11 ga

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

8шт.

14

161373C1

SHIELD, main drive

1шт.

15

163453C1

BRACKET, main drive shield

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

16

161374C91

SPROCKET ASSY, idler 22-T and 27-T

1шт.

17

561479R1

BEARING

RACE, idler sprocket

2шт.

18

568029R91

BEARING ASSY,25.4mm ID x 35mm OD x 25.4mm W

BEARING ASSY, idler sprocket

2шт.

19

557189R91

SEAL

ASSY, idler sprocket oil

2шт.

20

161378C91

SPACER, double idler

1шт.

22012R1

CARRIAGE BOLT,Hex, 1/2" - 13 x 5 1/4", Gr 2

BOLT, 1/2 x 5-1/4 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

9шт.

21

161364C1

BRACKET, chain idler

1шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 C-Z sq-hd crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq x 1-1/4 x 11 ga C-Z

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

8шт.

22

161379C1

BRACKET, double idler

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach.

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23

CHAIN, main drive, Use 121 links from 10-ft roll marked 1793D, three connecting links 1786D, and two offset links 1318D

1шт.

24

161370C91

BRACE ASSY, idler

1шт.

18821R1

BOLT

5/8 x 1-1/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

2шт.

25

565442R91

SPROCKET

ASSY, chain idler 17-T

3шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

13шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

591714R1

WASHER

23/32 x 1-1/4 x 16 ga C-Z

2шт.

26

CHAIN, auger drive, Use 27 links from 10-ft roll marked 1791D, one connecting link 1310D, and one offset link 1315D

1шт.

27

162231C91

HUB ASSY, pickup driven sprocket

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21891R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2 std-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

28

162248C1

SPROCKET ASSY.

SPROCKET, pickup driven 24-T

1шт.

28

162249C1

SPROCKET ASSY.

SPROCKET, pickup driven 27-T

1шт.

28

162251C1

SPROCKET ASSY.

SPROCKET, pickup driven 22-T

1шт.

28

162252C1

SPROCKET ASSY.

SPROCKET, pickup driven 30-T

1шт.

29

SPROCKET, auger drive 52-T, standard, Refer to platform auger unit for listing

1шт.

30

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

31

626633R1

BRACKET, brg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.
