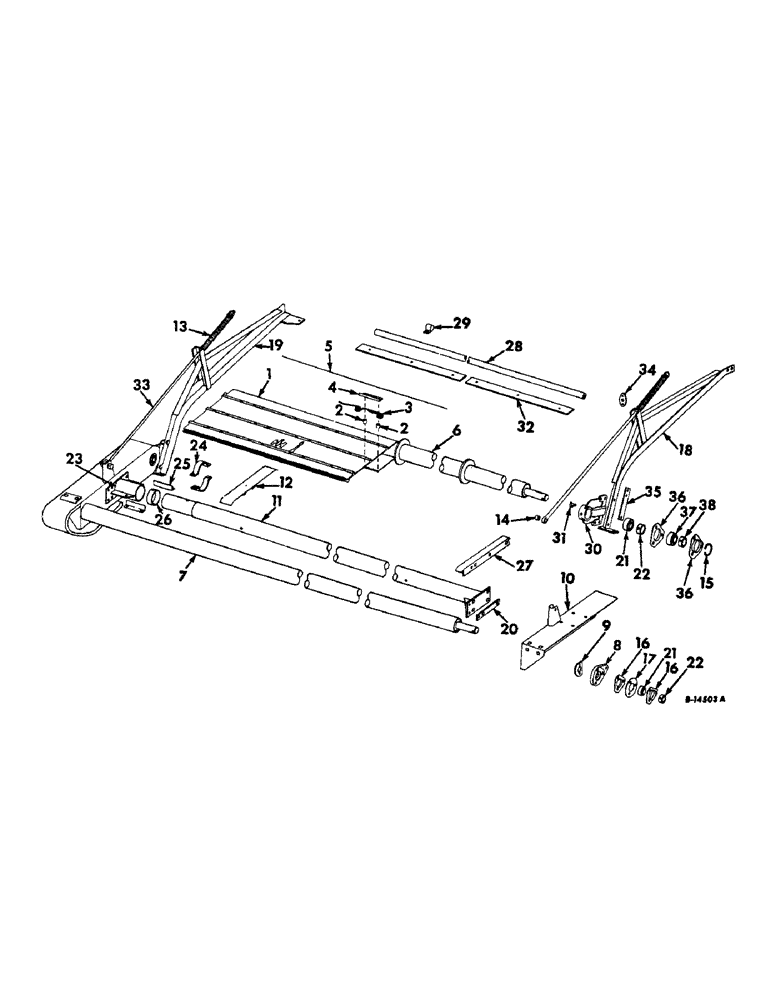

Запчасти Case IH 315 (Q-31) - PLATFORMS, WINDROW PICKUP, BELT TYPE, BASIC UNIT Platforms

1

155772C91

APRON

DRAPER ASSY, pickup, 3 used 10-ft, 4 used 12-ft

1шт.

180018

CONNECTING LINK

1/4 x 5/8 C-Z hex-hd mach

1шт.

631652R1

NUT

spring anchor

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

626632R1

SPRING WASHER

SPACER, spring bolt

1шт.

3

626742R1

SPRING

FINGER, pickup

1шт.

4

626741R1

CLAMP

BRACKET, finger retainer

1шт.

5

626679R1

ELECTRICAL WIRE

PIN, draper lacing, 3 used 10-ft, 4 used 12-ft

4шт.

6

155097C91

ROLLER ASSY, upper, 12-ft

1шт.

6

626645R91

ROLLER ASSY, upper, 10-ft

1шт.

22440R1

WASHER

1-1/32 x 1-3/4 x 22 ga C-Z

4шт.

7

935712R91

ROLLER ASSY, lower, 12-ft

1шт.

7

935903R91

ROLLER ASSY, lower, 10-ft

1шт.

22440R1

WASHER

1-1/32 x 1-3/4 x 22 ga C-Z

3шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

3шт.

8

935377R1

RETAINER

HOUSING, lower roller brg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120376

NUT,5/16"-18, G5

6шт.

21780R1

SCREW

3/8 x 1-1/2 C-Z slt-f-hd mach

2шт.

133837

SCREW, 5/16 x 1 C-Z slt-f-hd mach

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

935378R1

RETAINER, lower roller brg housing

2шт.

18763

BOLT, 5/16 x 1/2 C-Z hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

935380R1

BOLT,1/2" - 13 x 5.50"

roller tightener

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

10

626682R92

PLATE ASSY, side LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

134238R1

WASHER

11/32 x 1-1/4 x 16 ga C-Z

2шт.

10

626683R92

PLATE ASSY, side RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

134238R1

WASHER

11/32 x 1-1/4 x 16 ga C-Z

2шт.

11

935381R91

PIPE ASSY, center stiffener, 10-ft

1шт.

11

935714R91

PIPE ASSY, center stiffener, 12-ft

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

12

935390R91

GUIDE

ASSY, draper, 5 used 10-ft, 7 used 12-ft

1шт.

21959R1

HEADED PIN,5/16" x 3 1/2"

PIN, 5/16 x 3-1/2 C-Z std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

13

155311C1

SPRING

balance, 12-ft

2шт.

13

624160R1

SPRING

balance, 10-ft

2шт.

14

626630R1

BUSHING, balance spring rod

2шт.

15

583564R1

SNAP RING,#250, 2.356, Ext

RING, upper roller snap

2шт.

16

571424R1

FLANGE

lower roller brg

4шт.

17

573535R1

SHIM, lower roller brg flange

2шт.

18

161365C91

SUPPORT ASSY, pickup LH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 C-Z sq-nk crg

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

19

161366C91

SUPPORT ASSY, pickup RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 C-Z sq-nk crg

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

20

626631R1

FILLER, stiffener frame end plate

1шт.

21

455101R91

BEARING

ASSY, upper and lower roller ball

4шт.

22

455102R11

COLLAR

W/SET SCREW LKG

4шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

4шт.

23

935383R91

SUPPORT ASSY, center stiffener

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

24

935388R1

CLAMP, center stiffener

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

25

935387R1

ANGLE, craddle support

2шт.

26

935389R1

COLLAR, center stiffener

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

Q1490

PIN, 3/8 x 3-3/8 std-hd

1шт.

27

626641R1

GUIDE, outer belt LH

1шт.

27

626642R1

GUIDE, outer belt RH

1шт.

28

633130R1

STRIPPER, pickup finger, 10-ft

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

12шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 sq-nk crg

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

28

935732R1

STRIPPER, pickup finger

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

15шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 C-Z sq-nk crg

15шт.

120377

NUT,3/8" - 16, Gr 5

15шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

15шт.

29

633131R1

CLIP, finger stripper, 12 used 10-ft and 15 used 12-ft

1шт.

30

626636R1

HOUSING, pickup pivot

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 C-Z hex-hd mach

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

31

16964R1

FITTING

1/4-28 ptf 90 deg lub

2шт.

32

633140R1

PAD, finger wear, 10-ft

1шт.

32

935733R1

PAD, finger wear, 12-ft

1шт.

33

626629R1

ROD, balance spring

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

4шт.

22825R1

WASHER

15/32 x 1-1/4 x 7 ga

4шт.

34

935402R1

GUIDE, balance spring rod

2шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 C-Z hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

35

935401R1

STRAP, pivot bracket

2шт.

36

571424R1

FLANGE

upper roller LH brg

2шт.

37

455965R1

BEARING ASSY, upper roller LH ball

1шт.

38

455102R11

COLLAR

W/SET SCREW, lkg

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

1шт.
