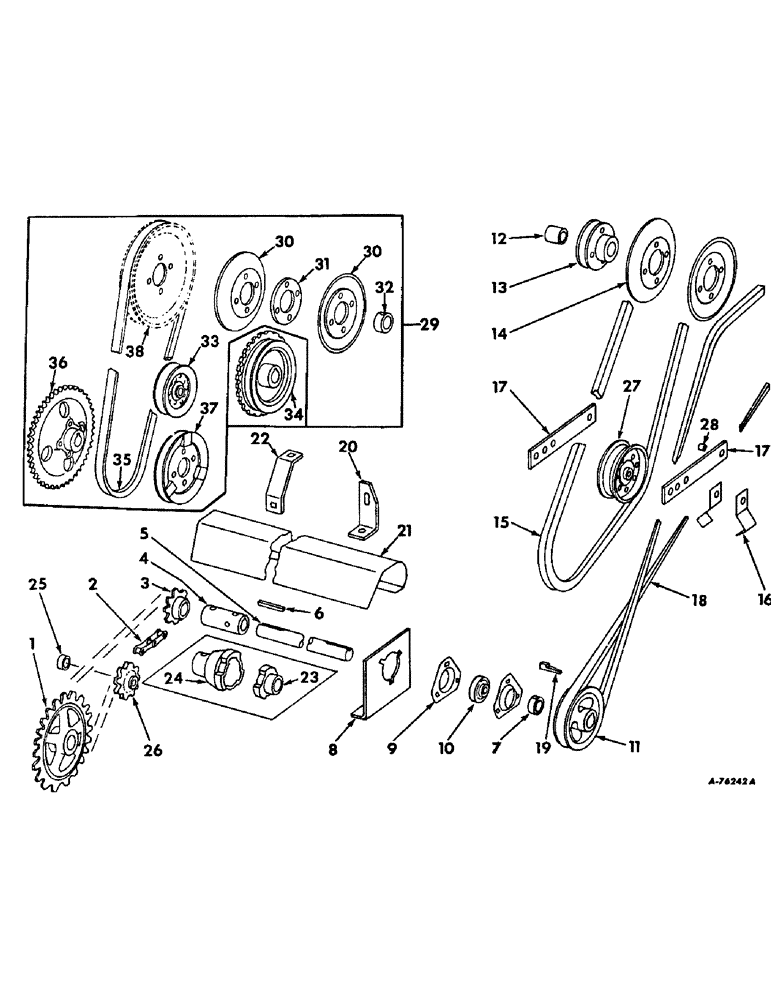

Запчасти Case IH 315 (Q-29) - PLATFORMS, WINDROW PICKUP DRIVE, ROTARY TYPE Platforms

1

552271R1

SPROCKET, main shaft driven

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

633921R1

PIN, 5/16 x 2-1/2 C-Z std-hd

2шт.

2

CHAIN, pickup drive, Use 43 links from 10-ft roll marked 569088R91 one offset connecting links 457114R91 and one connecting link 457113R91

1шт.

3

2562KA

SPROCKET, roller drive, regular, 8-T

1шт.

3

2474KC

SPROCKET, roller drive, slow speed, 7-T

1шт.

4

588633R11

COUPLING ASSY, jackshaft, 13-ft and 14-ft

1шт.

137

KEY, 1/4 x 5/16 x 1-5/16 str-dld

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21896R1

PIN, 1/4 x 1-7/8 C-Z std-hd

1шт.

13942R1

RIVET, no. 9 x 5/8 csk-hd

2шт.

5

936466R1

JACKSHAFT, drive, 10-ft

1шт.

5

935050R1

JACKSHAFT, drive, 13-ft and 14-ft

1шт.

4

Q480

KEY, 5/16 x 1/4 x 1 straight

1шт.

7

455102R11

COLLAR

ASSY, jackshaft bearing

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 HDLS CUP-PT SET SCREW

1шт.

8

614060R1

BRACKET, jackshaft bearing

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

3шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

571424R1

FLANGE

jackshaft bearing

2шт.

19576R1

BOLT,Short NK, 5/16"-18 x 7/8", G2, Full Thd

5/16 x 7/8 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

10

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY, jackshaft

1шт.

11

613717R1

PULLEY, jackshaft driven, 1-3/4 in OD, 1-3/4 bore

1шт.

12

610517R1

BUSHING

jackshaft hub

2шт.

13

613716R11

HUB ASSY, reel jackshaft, Includes ref no. 12

1шт.

14

21666K

PULLEY ASSY, jackshaft drive

2шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

27131K

BELT,0.66" W x 111.72" L

V-BELT , Jackshaft drive 0.66" W x 111.72" L

1шт.

16

611092R1

LOCK PLATE, Pitman arm

2шт.

17

613718R1

ARM, main drive tightener pulley

2шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

M83536

WASHER

17/32 x 1-1/4 x 11 ga sq

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

3шт.

18

611930R1

V-BELT,0.63" W x 65.10" L

Pickup drive 0.63" W x 65.10" L

1шт.

19

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 5/16 x 2 gib

1шт.

20

567852R1

STRAP, jackshaft drive shield left, 13-ft and 14-ft

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

935145R1

SHIELD, jackshaft drive, 13-ft & 14-ft

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

584228R1

STRAP, jackshaft drive shield right, 13-ft and 14-ft

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23

550532R11

COUPLING ASSY, jackshaft, male, 10-ft

1шт.

137

KEY, 1/4 x 5/16 x 1-5/16 str-dld

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21896R1

PIN, 1/4 x 1-7/8 C-Z std hd

1шт.

13958R1

RIVET, no. 9 x 13/16 74 deg csk-hd

1шт.

24

550533R11

COUPLING ASSY, jackshaft, female, 10-ft

1шт.

137

KEY, 1/4 x 5/16 x 1-5/16 str-dld

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21896R1

PIN, 1/4 x 1-7/8 C-Z std hd

1шт.

13942

HANDBOOK

RIVET, no. 9 x 5/8 csk-hd

1шт.

25

576271R1

SPACER

drive chain tightener sprocket

1шт.

26

565336R91

BEARING

SPROCKET ASSY, drive chain tightener

1шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

3шт.

27

559292R93

PULLEY

ASSY, jackshaft tightener, 4-1/2 OD, 17/32 bore

1шт.

570640R1

BOLT (SPREADER),Adj, Hex, 1/2" - 13 x 4", Full Thd

BOLT, 1/2 x 4 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

7шт.

28

48193K

SPACER, tightener pulley arm

1шт.

29

163616C91

PICKUP DRIVE PARTS FOR COMBINES ORIGINALLY EQUIPPED W/PICKUP REEL, Serial no 700 and below

1шт.

29

164515C91

PICKUP DRIVE PARTS FOR COMBINES ORIGINALLY EQUIPPED W/PICKUP REEL, Serial no 701 and above

1шт.

30

21666K

PULLEY ASSY, drive half, 6-3/4 OD, 2 bore

2шт.

31

21659K

RING

spacer

5шт.

32

610513R1

COLLAR

COLLAR, pulley retainer

1шт.

22214R1

SCREW, 5/16 x 3/8 C-Z sq-hd set

1шт.

33

559087R92

PULLEY

ASSY, tightener, 5-5/8 OD, 1/2 bore

1шт.

34

936891R1

PULLEY, auger drive sprocket and reel countershaft 26-T standard, 7 in. OD pulley, 26-T sprocket, tapered bore, For use w/countershafts 936888R91 and 936890R91, Serial no 700 and below

1шт.

34

936892R1

SPROCKET, platform auger driven 21-T, special fast speed, 5-13/16 in. OD pulley tapered bore, For use w/countershafts 936888R91 and 936890R91, Serial no 700 and below

1шт.

35

610521R1

V-BELT

Countershaft drive

1шт.

36

164110C1

SPROCKET ASSY.

SPROCKET, auger drive 52-T standard, For use w/countershafts 164108C91 and 164107C91, Serial no 701 and above

1шт.

36

164114C1

SPROCKET, auger drive 42-T, special fast speed, For use w/countershafts 164108C91 and 164107C91, Serial no 701 and above

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

37

164112C1

PULLEY, reel drive, standard, 7 OD, 2 bore, For use w/countershafts 164108C91 and 164107C91, Serial no 701 and above

1шт.

37

164115C1

PULLEY, reel drive, special fast speed, 5-13/16 OD, 2 bore, For use w/countershafts 164108C91 and 164107C91, Serial no 701 and above

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

38

PULLEY ASSY, countershaft driven, Refer to reel drive and support arms for listing

1шт.
