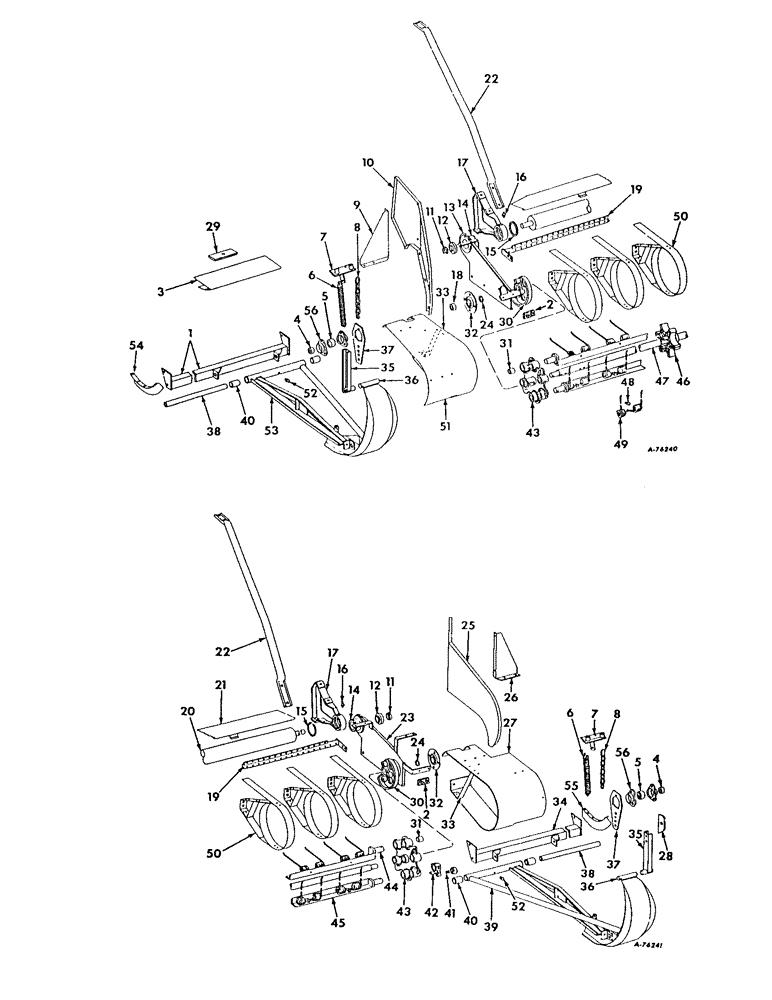

Запчасти Case IH 315 (Q-25) - PLATFORMS, WINDROW PICKUP BASIC UNIT, ROTARY TYPE Platforms

1

935045R91

SUPPORT ASSY, right runner pivot, 13-ft

1шт.

1

936465R91

SUPPORT ASSY, right runner pivot, 10-ft

1шт.

1

156908C91

SUPPORT ASSY, right runner pivot, 14-ft

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

2

936354R1

PAD, tine cup

2шт.

3

936467R1

SHIELD, knife guard left, 10-ft.

1шт.

3

936543R1

SHIELD, knife guard right, 10-ft.

1шт.

3

935146R1

SHIELD, knife guard, 13-ft and 14-ft

1шт.

4

455102R11

COLLAR

ASSY

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 cup-pt set

2шт.

5

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY, main shaft

2шт.

6

NLS

NO LONGER SERVICED

balance, 2 used 10-ft, 4 used 13-ft and 14-ft

1шт.

7

584205R91

BRACKET ASSY, retainer chain anchor

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 C-Z sq-nk crg

2шт.

18515R1

BOLT, 3/8 x 2-1/2 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

557950R1

WASHER

13/32 x 1 x 7 ga

8шт.

8

583598R91

CHAIN, runner retaining, 10-ft

2шт.

8

567983R91

CHAIN, runner retaining 13-ft and 14-ft

2шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 C-Z sq-nk crg

2шт.

18797R1

BOLT

7/16 x 1-3/4 C-Z hex-hd mach

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

61252H

WASHER

15/32 x 3/4 x 11 ga

12шт.

9

568036R1

STIFFENER, right divider

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

567769R1

DIVIDER, end shield right

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

4шт.

11

455102R11

COLLAR

ASSY

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 cup-pt set

2шт.

12

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY, roller shaft

2шт.

13

584280R91

BRACKET ASSY, main shaft right, Includes ref. no. 14

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13995R1

RIVET

1/4 x 3/4

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

3шт.

14

584075R1

HOUSING, roller shaft bearing

2шт.

15

583564R1

SNAP RING,#250, 2.356, Ext

roller shaft bearing

2шт.

16

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

17

632962R1

BRACKET, pivot, 10-ft

2шт.

17

583511R1

BRACKET, pivot, 13-ft and 14-ft

2шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach

2шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 C-Z hex-hd mach, 13-ft and 14-ft

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

584114R1

SPACER

main shaft right bearing, 10-ft

1шт.

19

632956R91

ANCHOR ASSY, grain deck strip, 10-ft

1шт.

19

584190R93

ANCHOR ASSY, grain deck strip, 13-ft and 14-ft

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg, 13-ft and 14-ft

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

20

632958R91

ROLLER ASSY, 10-ft

1шт.

20

584193R91

ROLLER ASSY, 13-ft and 14-ft

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

4шт.

13907R1

RIVET, 1/4 x 1-7/8 csk-hd

4шт.

21

632960R91

EXTENSION ASSY, platform, 10-ft

1шт.

21

584272R91

EXTENSION ASSY, platform, 13-ft & 14-ft

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 C-Z sq-nk crg, 10-ft

2шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

22

935053R1

BRACE, pickup support

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

23

584274R91

BRACKET ASSY, main shaft left, Includes ref. no. 14

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

13955R1

RIVET, 1/4 x 3/4 csk-hd

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

583976R1

SNAP RING,#125, 1.179", Ext

main shaft, 13 ft & 14-ft

2шт.

25

567768R1

DIVIDER, end shield left

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

5шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

4шт.

26

583615R1

STIFFENER, left divider

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

587889R1

SHIELD, left end, 10-ft

1шт.

27

584196R1

SHIELD, left end, 13-ft and 14-ft

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg, 10-ft

2шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 C-Z hex-hd mach, 13-ft and 14-ft

2шт.

120376

NUT,5/16"-18, G5

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW, no. 10 x 3/8 C-Z slt-pan-hd mach

4шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

28

935144R1

STOP, runner

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

29

612628R2

RETAINER, knife guard shield, 2 used 10-ft, 1 used 13-ft and 14-ft

2шт.

18657R1

BOLT,Hex, 1/4"-20 x 1-1/2", G2

1/4 x 1-1/2 C-Z hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

935602R3

CAM

tine control, 1 used 10-ft, 2 used 13-ft and 14-ft

1шт.

18515R1

BOLT, 3/8 x 2-1/2 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga

1шт.

31

584377R1

BUSHING

spider

12шт.

32

584147R91

BEARING ASSY,1.258" ID x 4.4375" OD x 0.9"

ASSY, main shaft inner

2шт.

33

584198R1

STIFFENER, end shield

2шт.

34

935044R91

SUPPORT ASSY, left runner pivot, 13-ft and 14-ft

1шт.

34

936463R91

SUPPORT ASSY, left runner pivot, 10-ft

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

35

583530R91

BRACKET ASSY, runner lower adjusting

2шт.

36

583529R1

PIN

runner pivot

2шт.

37

583528R1

BRACKET, runner upper adjusting

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

38

583520R1

TUBE, runner pivot 0.656" ID, 0.875" OD, 12.156" Length

2шт.

20211R1

BOLT, 5/8 x 14 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

39

583532R92

RUNNER ASSY, left, Includes ref no. 40

1шт.

18658R1

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 2

1/4 x 1-3/4 C-Z hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

40

551957R1

BUSHING, runner tube pivot

4шт.

41

584301R91

CRANKSHAFT BEARING

BEARING ASSY, cam, 6 used 10-ft, 12 used 13-ft and 14-ft

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

42

584189R1

ARM, cam, 6 used 10-ft, 12 used 13-ft and 14-ft

1шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16 x 2 C-Z sq-nk crg

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

43

584376R1

SPIDER, main shaft

2шт.

117923

PIN, SPLIT (COTTER)

PIN, 1/8 x 3/4 C-Z cot.

4шт.

663921R1

PIN

5/16 x 2-1/2 C-Z std-hd

4шт.

44

632953R91

HOLDER ASSY, right tine, 10-ft

3шт.

44

584281R91

HOLDER ASSY, right tine, 13-ft and 14-ft

3шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , 10-ft 1/4" x 1 1/2"

3шт.

22769R1

WASHER

1-3/32 x 1-1/2 x 16 ga C-Z

1шт.

45

632952R91

HOLDER ASSY, left tine, 10-ft

3шт.

45

584278R91

HOLDER ASSY, left tine, 13-ft and 14-ft

3шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , 10-ft 1/4" x 1 1/2"

3шт.

22769R1

WASHER

1-3/32 x 1-1/2 x 16 ga C-Z

1шт.

46

561090R1

SPIDER, half main shaft center, 10-ft

2шт.

18770R1

BOLT,Hex, 5/16"-18 x 2 3/4", G2

5/16 x 2-3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

46

584271R1

SPIDER, half main shaft center, 13-ft and 14-ft

2шт.

18771R1

BOLT,Hex, 5/16"-18 x 3", G2

5/16 x 3 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

47

632950R91

SHAFT ASSY, main, 10-ft

1шт.

47

584294R91

SHAFT ASSY, main, 13-ft and 14-ft

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z, 10-ft

4шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z, 13-ft and 14-ft

4шт.

22050R1

WASHER

1-9/32 x 1-3/4 x 16 ga C-Z

1шт.

48

27513K

CUP WASHER

WASHER, tine cup, 54 used 10-ft, 72 used 13-ft and 14-ft

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

49

588735R1

TOOTH

TINE, 54 used 10-ft, 72 used 13-ft and 14-ft

1шт.

50

584184R92

STRIP ASSY, grain deck, 47 used 13-ft and 14-ft, 35 used 10-ft

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

BOLT, 5/16 x 2-1/2 C-Z sq-nk crg, 13-ft and 14-ft

47шт.

120376

NUT,5/16"-18, G5

1шт.

436729

SCREW,Slotted Pan Hd, #10-24 x 5/16"

no. 10 x 5/16 C-Z slt-pan-hd

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619885R1

WASHER, 11/32 x 3/4 x 16 ga C-Z 13-ft and 14-ft

47шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

106884

RIVET

3/16 x 1/2 wagon-box-hd

1шт.

51

587890R1

SHIELD, right end, 10-ft

1шт.

51

584197R1

SHIELD, right end, 13-ft and 14-ft

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg, 10-ft

2шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 C-Z hex-hd mach, 13-ft and 14-ft

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120376

NUT,5/16"-18, G5

4шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW, no. 10 x 3/8 C-Z slt-pan-hd

4шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

52

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-27 PTF str-lub

2шт.

53

583533R92

RUNNER ASSY, right, Includes ref no. 40

1шт.

18658R1

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 2

1/4 x 1-3/4 C-Z hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

54

935052R1

BASE, pivot support right

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

55

935051R1

BASE, pivot support left

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

56

571424R1

FLANGE

bearing

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

3шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

3шт.
