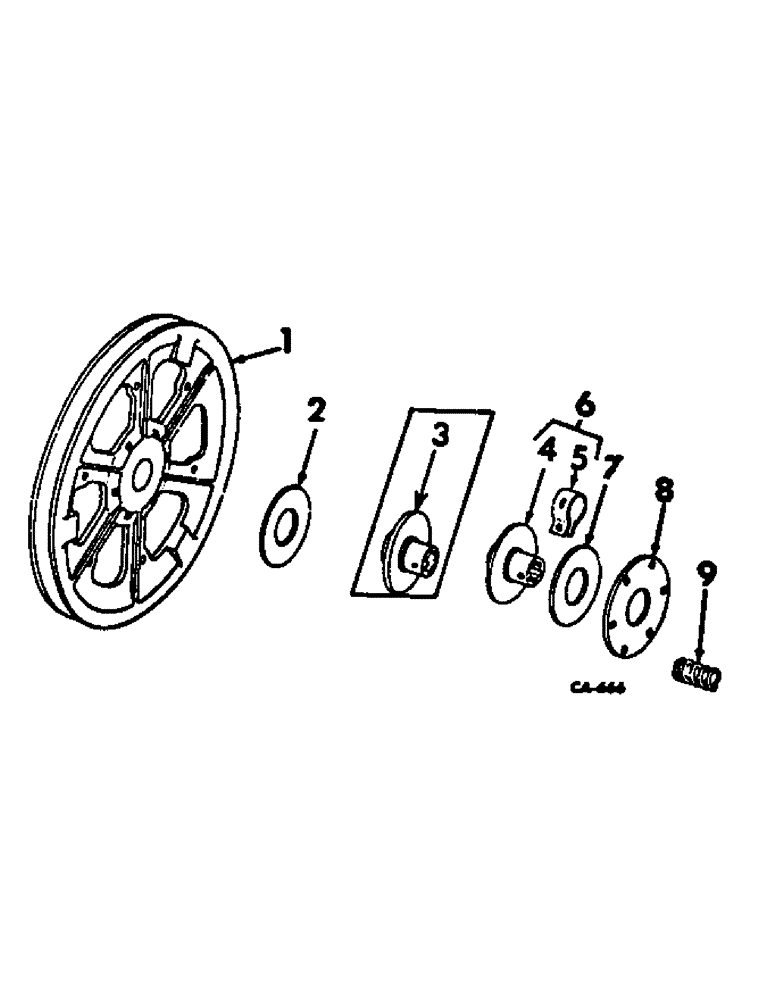

Запчасти Case IH 315 (Q-24) - PLATFORMS, FEEDER DRIVE SLIP CLUTCH Platforms

1

155780C11

PULLEY ASSY, feeder drive slip clutch, 21 in. OD x 2 in. bore

1шт.

18687R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 2

BOLT, 3/8 x 2-3/4 C-Z sq-nk crg

6шт.

18253R1

LOCK NUT,3/8"-16, GB

NUT, 3/8 elastic stop

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

6шт.

2

617486R1

PLATE, feeder drive slip clutch backing

1шт.

3

935424R1

HUB, feeder drive slip clutch, Order 168125C91 hub and clamp assy service package ref no. 6

1шт.

4

168107C1

HUB, feeder drive slip clutch

1шт.

5

168108C1

CLAMP, feeder drive slip clutch hub

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21992R1

HEADED PIN,5/16" x 2 3/4"

PIN, 5/16 x 2-3/4 C-Z std-hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

168125C91

HUB AND CLAMP ASSY, feeder drive slip clutch

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21992R1

HEADED PIN,5/16" x 2 3/4"

PIN, 5/16 x 2-3/4 C-Z std-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

617486R1

PLATE, feeder drive slip clutch backing

1шт.

8

617619R1

FACING

feeder drive slip clutch

1шт.

9

611420R1

SPRING

feeder drive slip clutch

6шт.
