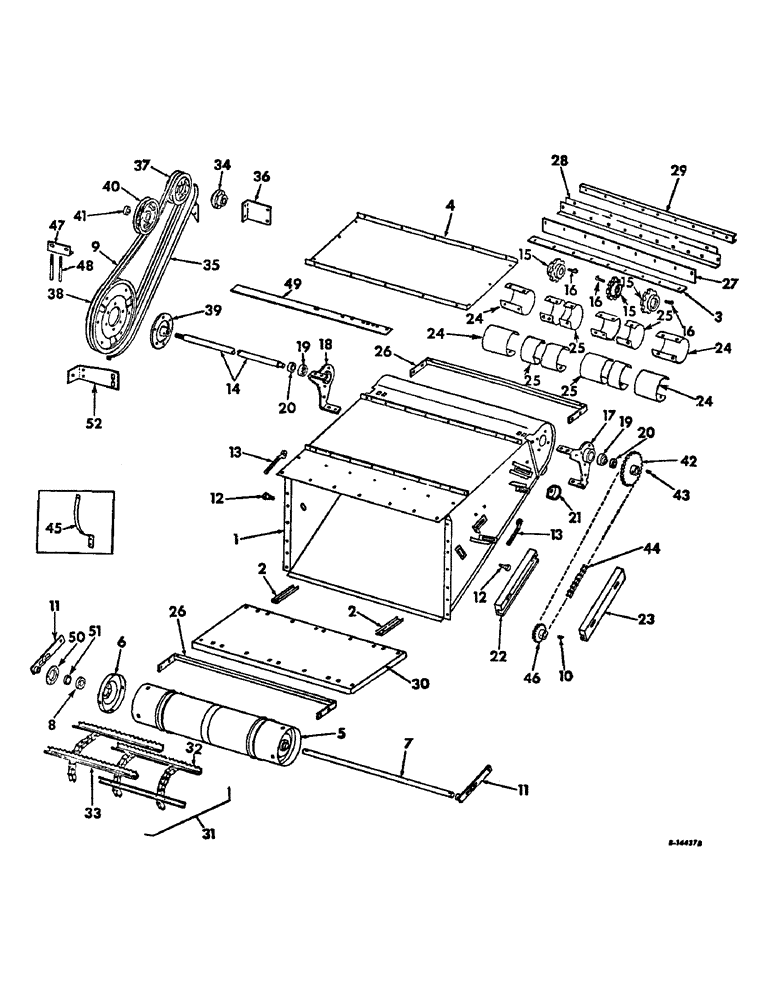

Запчасти Case IH 315 (Q-21) - PLATFORMS, FEEDER, CHAIN AND DRIVE Platforms

1

152549C91

SHELL ASSY, feeder conveyor, extra long, Serial no 700 and below

1шт.

1

163557C91

SHELL ASSY, feeder conveyor, extra long, Serial no 701 and above

1шт.

1

152540C91

SHELL ASSY, feeder conveyor, long, Serial no 700 and below

1шт.

1

163537C91

SHELL ASSY, feeder conveyor, long, Serial no 701 and above

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4 x 5/8 C-Z sq-nk crg

9шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

4шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

4шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

12шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

SCREW, 1/2 x 3/4 C-Z hex-hd cap type 2

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

9шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

85шт.

120423

LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"

WASHER, LOCK, Int Tooth, 1/4"

9шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

16шт.

20601R1

WASHER

17/32 x 1 x 11 ga C-Z

4шт.

2

610168R1

GUIDE, feed plate

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

154282C1

SEAL, feeder lower

1шт.

4

159358C1

COVER, feeder top

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd machine

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

5

152559C91

TUBE ASSY, feed conveyor

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

168319C1

HUB ASSY, lower drum

2шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

7

610196R1

SHAFT, feeder lower

1шт.

8

160314C91

BALL BEARING,22.23mm ID x 52.05mm OD x 16.56mm W

BEARING ASSY, feeder lower shaft ball

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

2шт.

9

152579C1

V-BELT,0.63" W x 114.50" L

Feeder Drive 0.63" W x 114.50" L

1шт.

10

113879

KEY

5/16 x 1-1/4 Woodruff

1шт.

11

935123R11

LEVER

ARM ASSY, conveyor lower drum adj

2шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 C-Z sq-nk crg

2шт.

9413939

NUT, 7/16 torque hex lock

2шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

2шт.

496-21047

WASHER

.47 x .92 x .06

2шт.

188755R1

WASHER

15/32 x 1-1/2 x 11 ga C-Z

2шт.

21760R1

WASHER,0.47" ID x 0.88" OD x 0.19" Thk

15/32 x 7/8 x 7 ga C-Z

2шт.

21904R1

WASHER, 15/32 x 7/8 x 11 ga C-Z

2шт.

12

169200C1

BOLT, adjusting arm locking

2шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

2шт.

13

619199R1

BOLT,7/16" - 14 x 3 3/8"

conveyor chain tightener

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

14

152558C1

SHAFT, feeder pivot

1шт.

15

937493R1

SPROCKET ASSY.

SPROCKET, feeder pivot shaft

3шт.

16

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2 gib

3шт.

17

152563C2

HUB, pivot LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

475954R1

NUT

3/8 C-Z whiz lock

6шт.

18

152564C2

HUB, pivot RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

475954R1

NUT

3/8 C-Z whiz lock

6шт.

19

256557R91

BEARING

ASSY, feeder pivot shaft ball

2шт.

20

557113R11

COLLAR

W/SET SCREW, lkg

2шт.

120592

SCREW, 3/8 x 3/8 hex-soc-hd cup-pt set

2шт.

21

936878R1

BLOCK

countershaft drive chain tightener

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq x 1-1/4 x 11 ga C-Z

1шт.

22

152561C1

GUIDE, countershaft drive chain upper

1шт.

23

152562C1

GUIDE, countershaft drive chain lower, long feeders

1шт.

23

152575C1

GUIDE, countershaft drive chain lower, extra long feeders

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

24

168657C1

SHIELD, feeder pivot shaft outer

4шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 C-Z slt-pan-hd tapping

8шт.

25

168659C1

SHIELD, feeder pivot shaft inner

4шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 C-Z slt-pan-hd tapping

12шт.

26

152554C91

BRACE ASSY, pivot shaft guard and feed conveyor sheel sheet, Serial no, Serial Range: 501-2297

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

28шт.

120376

NUT,5/16"-18, G5

28шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

28шт.

27

154283C1

SEAL

feeder housing

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

9шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

9шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

21871R1

WASHER

9/32 x 1 x 18 ga C-Z

9шт.

28

153172C1

REINFORCEMENT, feeder top seal

1шт.

29

158740C1

CHANNEL, feeder upper seal

1шт.

30

152959C1

SHEET, feed conveyor shell, Serial no, Serial Range: 501-2297

1шт.

30

169221C1

SHEET, feeder center, Serial no 2298 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

31

152565C91

CONVEYOR ASSY, feed conveyor, long

1шт.

31

152569C91

CONVEYOR ASSY, feed conveyor, ext long

1шт.

32

153631C91

CONVEYOR

SLAT ASSY, feed conveyor chain LH

1шт.

33

153632C91

CONVEYOR

SLAT ASSY, feed conveyor chain RH

1шт.

34

151712C1

HUB, feeder drive pulley

1шт.

35

152636C92

GUIDE ASSY, feeder belt, Serial no, Serial Range: 501-2297

1шт.

35

168790C1

GUIDE ASSY, feeder belt, Serial no 2298 and above

1шт.

36

152716C1

SUPPORT, feeder belt guide rear inner

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

37

155743C1

PULLEY, feeder drive, 8-1/8 OD, 2-3/8 bore

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16-18 x 1-1/4 C-Z hex-hd cap, type 2

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

38

155744C1

PULLEY, feeder driven, Not edible bean, 21-1/16 OD, 6-7/16 bore

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

39

155745C1

HUB, feeder driven pulley, Serial no 700 and below

1шт.

39

163643C1

HUB, feeder driven pulley, Serial no 701 and above, Not edible bean

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21938R1

PIN

5/16 x 2-3/8 C-Z std-hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

40

155741C92

PULLEY ASSY, feeder drive belt tightener, Includes ref no. 41, 8-3/4 OD, 5/8 brg bore

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 hex-hd mach.

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex. jam

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

5шт.

41

626899R91

NYLON BEARING,16.13mm ID x 47mm OD x 18.29mm W

BEARING, feeder tightener pulley ball

1шт.

42

159499C91

SPROCKET ASSY, feeder countershaft, Not edible bean

1шт.

42

159501C91

SPROCKET ASSY, feeder countershaft drive 25-T, edible bean long feeders

1шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

1шт.

43

113879

KEY

5/16 x 1-1/4 Woodruff

1шт.

CHAIN, feeder countershaft drive, Use 71 links form 10 ft roll marked 569089R91, one roller link 456979R91, two connecting links 587372R91 and one offset connecting link 456929R91, long feeders for use w/12-26, 13-26 and 14-26 main wheel tires, 10 ft, 13 ft and 14 ft

1шт.

CHAIN, feeder countershaft drive, Use 85 links from 10 ft roll marked 569089R91, one roller link 456979R91, two connecting links 587372R91 and one offset connecting link 456929R91, extra long feeders for use w/15-26 and 18-26 main wheel tires, 10 ft, 13 ft and 14 ft

1шт.

44

CHAIN, feeder countershaft drive, Use 71 links from 10 ft roll marked 569089R91, one connecting link 1310D and two offset connecting links 456929R91, edible bean, long feeders

1шт.

44

CHAIN ASSY, feeder countershaft drive, Use 147 links from 10 ft roll marked 1791D, one connecting link 1310D and two offset links 1315D, long feeders, w/12-26, 13-26, 14-26 main wheel tires, 16 ft platform

1шт.

44

CHAIN ASSY, feeder countershaft drive, Use 175 links from 10 ft roll marked 1791D, one connecting link 1310D and two offset links 1315D, extra long feeders, w/15-26, 18-26 main wheel tires, 16 ft platform

1шт.

44

1310D

LINK

countershaft drive connecting

1шт.

45

159354C1

BRACE, feeder belt guide front, Serial no 700 and below

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

46

936886R91

SPROCKET ASSY.

SPROCKET ASSY, knife drive counter shaft driven, 20T

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

47

164482C1

GUIDE, feeder drive belt, Serial no 701 and above

1шт.

48

164495C1

STUD, belt guide, Serial no 701 and above

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

49

164731C1

SHIELD, pivot shaft slot, Serial no 701 and above

1шт.

50

476766R1

FLANGED BEARING

feeder lower shaft bearing

2шт.

51

565618R11

RETAINER

COLLAR W/SET SCREW, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

2шт.

52

163261C1

SUPPORT, feeder belt guide front

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 znd sq-nk crg

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22859R1

WASHER

11/32 x 3/4 x 7 ga C-Z

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.
