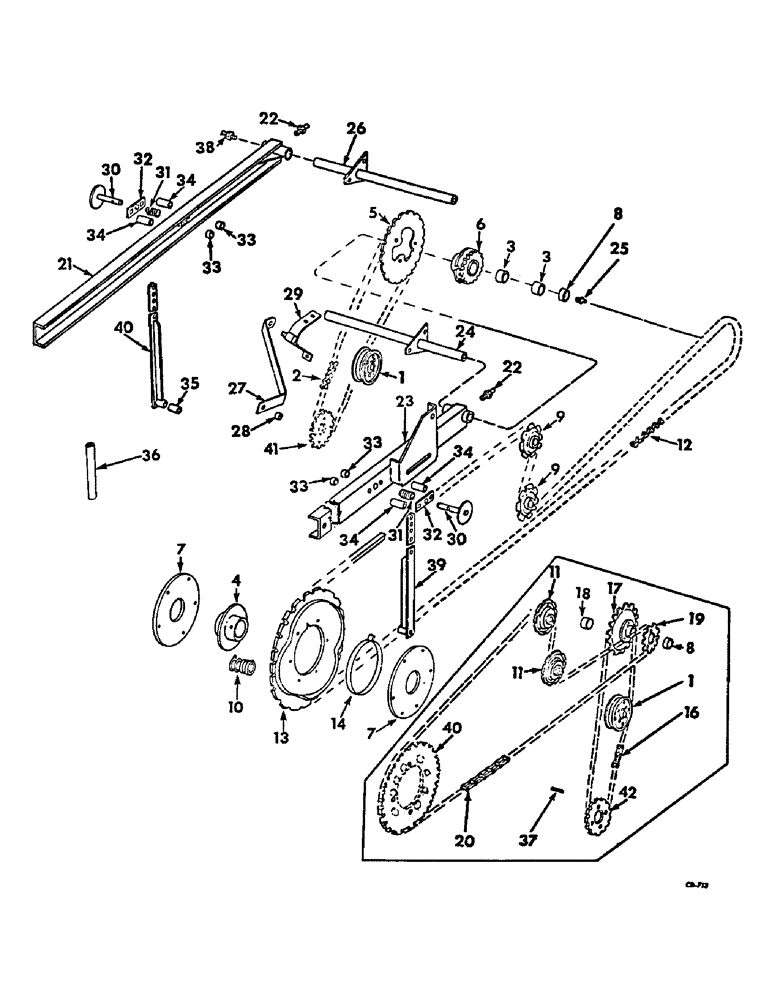

Запчасти Case IH 315 (Q-17) - PLATFORMS, REEL DRIVE AND SUPPORTS, 16 FT PLATFORM Platforms

1

559480R92

PULLEY ASSY, reel drive idler, 3-1/2 OD x 1/2 bore

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

6шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq x 1-1/4 x 11 ga C-Z

2шт.

2

CHAIN ASSY, countershaft drive, bat type, Use 45 links from 10 ft roll marked 569089R91, 1 connecting link 587372R91 and 4 offset links 456929R91

1шт.

3

466161R1

BUSHING, reel countershaft driven sprocket, bat type

2шт.

4

633173R1

HUB

friction clutch, bat type

1шт.

18801R1

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 2

7/16 x 2-3/4 C-Z hex-hd mach

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

5

569018R2

SPROCKET ASSY.

SPROCKET, reel drive 16T, bat type

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

3шт.

5

569019R2

DRIVE SPROCKET

SPROCKET, reel drive 14T, bat type

1шт.

5

569020R2

SPROCKET ASSY.

SPROCKET, reel drive 12T, bat type

1шт.

181610

SCREW,Hex, 5/16" - 24 x 1 1/4", Gr 5

5/16-24 x 1-1/4 C-Z hex-hd cap

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

6

165573R11

SPROCKET W/BUSHING, reel countershaft driven 18T, bat type, Includes ref no. 3

1шт.

7

569436R1

PLATE

friction clutch clamp, bat type

2шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

3шт.

8

610513R1

COLLAR

COLLAR, retainer

1шт.

22214R1

SCREW, 5/16 x 3/8 C-Z sq-hd cup-pt set

1шт.

9

564989R91

DRIVE SPROCKET

SPROCKET ASSY, reel drive idler, bat type

2шт.

10

568243R1

SPRING

friction clutch, bat type

3шт.

11

564989R91

DRIVE SPROCKET

SPROCKET ASSY, reel drive tightener 9T, pickup reel

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

21903R1

WASHER

17/32 x 3/4 x 16 ga C-Z

2шт.

12

CHAIN ASSY, reel drive, bat type, Use 115 links from 10 ft roll marked 569089R91 and 1 connecting link 587372R91 and 1 offset link 456929R91

1шт.

13

570032R1

SPROCKET ASSY.

SPROCKET, reel driven 2-T, bat type

1шт.

14

570029R1

BAND

friction clutch, bat type

1шт.

15

161472C91

BAR ASSY, reel lift arm RH, For used w/grain cutting parts

1шт.

16

CHAIN ASSY, reel countershaft drive, pickup reel, Use 49 links from 10 ft roll marked 569089R91, one connecting link 587372R91 and one offset connecting link 456029R91

1шт.

17

936994R11

SPROCKET ASSY, reel countershaft driven 18T, Includes ref no. 18, pickup reels

1шт.

18

610517R1

BUSHING

reel countershaft driven sprocket, pickup reels

2шт.

19

569137R1

SPROCKET, reel drive 10T, pickup reels

1шт.

181610

SCREW,Hex, 5/16" - 24 x 1 1/4", Gr 5

5/16-24 x 1-1/4 C-Z hex-hd cap

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

20

CHAIN ASSY, reel shaft drive, pickup reels, Use 109 links from 10 ft roll marked 569089R91, 3 connecting links 456980C91, 1 offset link 456929R91 and two roller links 456979R91

1шт.

21

154222C91

SUPPORT ASSY, reel right arm

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 str lub

2шт.

23

154221C91

SUPPORT ASSY, reel left arm

1шт.

24

610176R11

SHAFT ASSY, support arm lift pivot

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga C-Z

5шт.

25

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 deg lubrication

1шт.

26

607004R11

SHAFT ASSY, support arm right pivot

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga C-Z

5шт.

27

607010R1

BRACE, reel lift arm

2шт.

29

607011R91

PIVOT ASSY, reel arm brace

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

30

610232R11

PIN ASSY, lift arm retainer, 2 used w/cutting, 1 used less cutting

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

31

PO22

SPRING

lift arm retainer pin, 2 used w/cutting, 1 used less cutting

2шт.

32

610233R1

STRAP, lift arm retainer, 4 used w/cutting, 2 used less cutting

4шт.

18689R1

BOLT,Short NK, 3/8"-16 x 4 1/2", G2

3/8 x 4-1/2 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

33

27251K

SPACER,5/8" Tube x 7/16"

lift arm retainer inner

4шт.

34

N42827

SPACER

lift arm retainer outer, 4 used w/cutting, 2 used less cutting

4шт.

35

S4421

SPACER, lift arm lower

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2-1/2 C-Z std hd dld

1шт.

21814R1

HEADED PIN,1/2" x 3"

PIN, 1/2 x 3 C-Z std hd

1шт.

36

151049C1

PIPE, reel lift RH support

1шт.

19658R1

BOLT, 3/8 x 8-1/2 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

37

192

KEY,5/16" Sq x 1 5/8", Par

5/16 x 1-5/8 sq parallel

1шт.

38

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

39

161471C91

BAR ASSY, reel lift arm LH

1шт.

40

SPROCKET, reel driven, pickup reel, Refer to pickup reel unit for listing

1шт.

41

SPROCKET, plate 11T, bat type, Refer to platform auger unit for listing

1шт.

42

164113C1

SPROCKET, pickup reel drive 11T, pickup reel, For use w/countershafts 164107C91, 164108C91 and 165562C91 serial no 701 and above

1шт.
