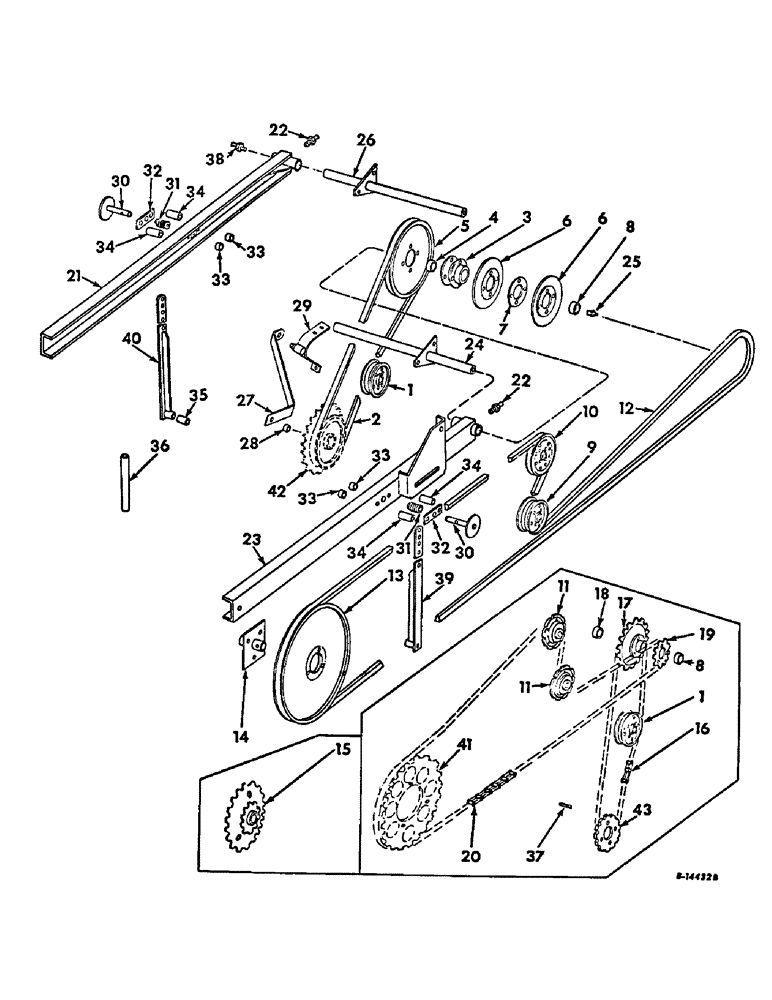

Запчасти Case IH 315 (Q-14) - PLATFORMS, REEL DRIVE AND SUPPORT ARMS, 10 FT, 13 FT AND 14 FT PLATFORMS Platforms

1

559292R93

PULLEY

ASSY, reel drive tightener rear 4-1/2 OD, 33/64 bore

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

3шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq x 1-1/4 x 11 ga C-Z

1шт.

2

610521R1

V-BELT

Reel countershaft drive, Bat type

1шт.

3

610512R11

HUB ASSY, countershaft driven pulley, bat type

1шт.

4

610517R1

BUSHING

countershaft driven pulley hub, bat type

2шт.

5

564697R21

PULLEY ASSY, countershaft driven, bat type, 10-3/8 OD, 2-17/64 bore

1шт.

18768R1

BOLT,Hex, 5/16"-18 x 2 1/4", G2

5/16 x 2-1/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

21666K

PULLEY ASSY, reel drive, bat type, 6-3/4 OD, 2 inch bore

1шт.

7

21659K

RING

drive pulley spacer loose, bat type

5шт.

8

610513R1

COLLAR

COLLAR, retainer

1шт.

22214R1

SCREW, 5/16 x 3/4 C-Z sq-hd cup-pt set

1шт.

9

559292R93

PULLEY

ASSY, reel drive tightener rear, bat type, 4-1/2 OD, 33/64 bore

1шт.

10

559087R92

PULLEY

ASSY, reel drive tightener front, bat type, 5-5/8 OD, 1/2 bore

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 C-Z hex-hd mach.

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

557268R1

WASHER

17/32 x 3/4 x 16 ga

2шт.

11

564989R91

DRIVE SPROCKET

SPROCKET ASSY, reel drive tightener 9-T, For pickup reels

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

21903R1

WASHER

17/32 x 3/4 x 16 ga C-Z

2шт.

12

554653R2

V-BELT,0.63" W

Reel drive, Bat type 0.63" W

1шт.

12

18884K

V-BELT,147.21" L

Reel drive, Bat type 147.21" L

1шт.

13

554575R91

PULLEY ASSY, reel driven, bat type, 17-1/2 OD, 7-1/4 bore

1шт.

13

588227R11

PULLEY

ASSY, reel driven, bat type, 21-1/2 OD, 2-7/8 bore

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach.

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

14

155511C91

HUB ASSY, reel driven pulley

1шт.

17083R1

COTTER PIN,3/16" x 3"

3/16" x 3"

2шт.

441015R1

LOCK PIN,5/16" x 2 1/4", Slotted

2шт.

15

936993R1

SPROCKET ASSY.

SPROCKET, auger and reel countershaft drive double, 11T and 26T, For pickup reels, For use w/countershaft 936888R91 or 936890R91, Serial no, Serial Range: 501-700

1шт.

16

CHAIN, reel countershaft drive, Use 49 links from 10-ft roll marked 569089R91, one connecting link 587372R91 and one offset connecting link 456929R91, For pickup reels

1шт.

17

936994R11

SPROCKET ASSY, reel countershaft driven 18-T, Includes ref no 18, For pickup reels

1шт.

18

610517R1

BUSHING

reel countershaft driven sprocket, For pickup reels

2шт.

19

569137R1

SPROCKET, reel drive, 10T, For pickup reels

1шт.

181610

SCREW,Hex, 5/16" - 24 x 1 1/4", Gr 5

5/16-25 x 1-1/4 C-Z hex-hd cap

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

20

CHAIN, reel shaft drive, Use 109 links from 10 ft roll marked 569089R91 three connecting links 456980C91 one offset connecting link 456929R91 and two roller links 456979R91, pickup reel

1шт.

21

154222C91

SUPPORT ASSY, reel right arm

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 str lub

2шт.

23

154221C91

SUPPORT ASSY, reel left arm

1шт.

24

610176R11

SHAFT ASSY, support arm left pivot

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga C-Z

5шт.

25

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 deg lube

1шт.

26

607004R11

SHAFT ASSY, support arm right pivot

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga C-Z

5шт.

27

607010R1

BRACE, reel lift arm

2шт.

28

PO11230

SPACER,3/8" Pipe x .406"

reel lift arm brace

2шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

2шт.

29

607011R91

PIVOT ASSY, reel arm brace

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

30

610232R11

PIN ASSY, lift arm retainer, 2 used w/cutting, 1 used less cutting

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

31

PO22

SPRING

lift arm retainer pin, 2 used w/cutting, 1 used less cutting

2шт.

32

610233R1

STRAP, lift arm retainer, 4 used w/cutting, 2 used less cutting

4шт.

18689R1

BOLT,Short NK, 3/8"-16 x 4 1/2", G2

3/8 x 4-1/2 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

33

27251K

SPACER,5/8" Tube x 7/16"

lift arm retainer inner

4шт.

34

N42827

SPACER

lift arm retainer outer, 4 used w/cutting, 2 used less cutting

4шт.

35

S4421

SPACER, lift arm lower

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2-1/2 C-Z std-hd dld

1шт.

21814R1

HEADED PIN,1/2" x 3"

PIN, 1/2 x 3 C-Z std hd

1шт.

36

151049C1

PIPE, reel lift RH support

1шт.

19658R1

BOLT, 3/8 x 8-1/2 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

37

192

KEY,5/16" Sq x 1 5/8", Par

5/16 x 1-5/8 sq. parallel

1шт.

38

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

39

161471C91

BAR ASSY, reel lift arm LH

1шт.

40

161472C91

BAR ASSY, reel lift arm RH, For use w/grain cutting parts

1шт.

41

SPROCKET, reel driven, pickup reel, Refer to pickup reel unit for listing

1шт.

42

PULLEY, reel countershaft drive

1шт.

42

SPROCKET, platform auger driven, Refer to platform auger unit for listing

1шт.

43

164113C1

SPROCKET, pickup reel drive, 11-T, pickup reel, For use w/countershaft 164107C91, 164108C91 and 165562C91 serial no 701 and above

1шт.
