Запчасти Case IH 315 (Q-12) - PLATFORMS, REEL SUPPORTS Platforms

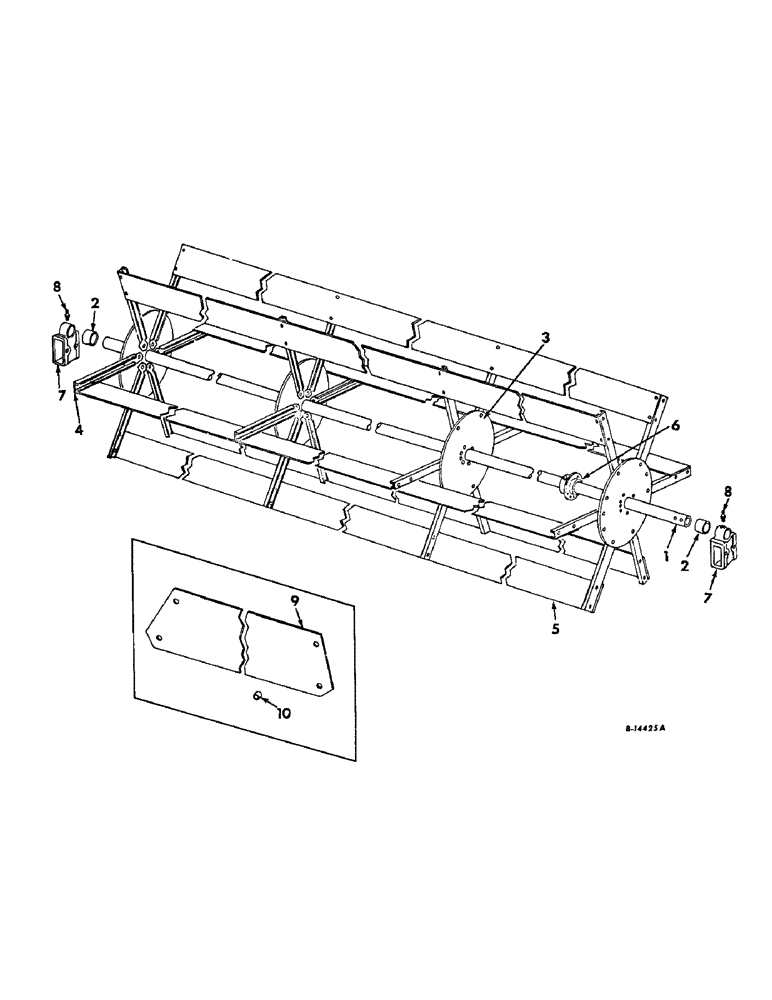

Схема запчастей Case IH 315 - (Q-12) - PLATFORMS, REEL SUPPORTS Platforms
3
8
9
2
1
6
10
2
4
7
5
7
8

Артикул

Название

Примечание

Количество

1

155947C1

PIPE, reel shaft, 13-ft

1шт.

1

155948C1

PIPE, reel shaft, 14-ft

1шт.

1

155946C1

PIPE, reel shaft, 10-ft

1шт.

1

165571C1

PIPE, reel shaft, 16-ft

1шт.

137308

DRIVEN PULLEY,1/4" x 2 1/2"

Split (Cotter), 1/4" x 2 1/2"

1шт.

22768R1

WASHER

1-25/32 x 2-3/4 x 18 ga C-Z

1шт.

2

155944C1

SPACER, reel shaft

2шт.

3

564841R1

RETAINER, reel bat arm, 4 used 13 ft, 14 ft and 16 ft, 3 used 10 ft

1шт.

4

633175R2

ARM, rel bat, 24 used 13 ft, 14 ft and 16 ft, 18 used 10 ft

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach, 24 used 13 ft, 14 ft and 16 ft, 18 used 10 ft

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, , 24 used 13 ft, 14 ft and 16 ft, 18 used 10 ft Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

939923R1

BAT, reel, 13 ft

6шт.

5

155513C1

BAT, reel, 14 ft

6шт.

5

939924R1

BAT, reel, 10 ft

6шт.

5

165572C1

BAT, reel, 16 ft

6шт.

21301R1

BOLT, 1/4 x 2-1/4 C-Z step, 48 used 13 ft, 14 ft and 16 ft, 36 used 10 ft

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

633172R1

HUB, reel bat arm support, 4 used 13 ft, 14 ft and 16 ft, 3 used 10 ft

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16 C-Z hex. jam

1шт.

19888R1

SCREW, 7/16 x 1 C-Z sq-hd set, 8 used 13 ft, 14 ft and 16 ft, 6 used 10 ft

1шт.

7

633181R1

BRACKET

SUPPORT, reel shaft

2шт.

425-147R1

NUT, 7/16 C-Z hex jam

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 C-Z hex. jam

2шт.

633184R1

SET SCREW

1/2 x 2-1/4 sq-hd cup pt set

2шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

9

565395R1

GUARD, reel end

12шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 C-Z hex-hd mach

24шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

24шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

24шт.

10

580295R1

SPACER

reel end guard

24шт.

Выбрано товаров: 33
