Запчасти Case IH 315 (Q-09) - PLATFORMS, KNIFE AND KNIFE DRIVE Platforms

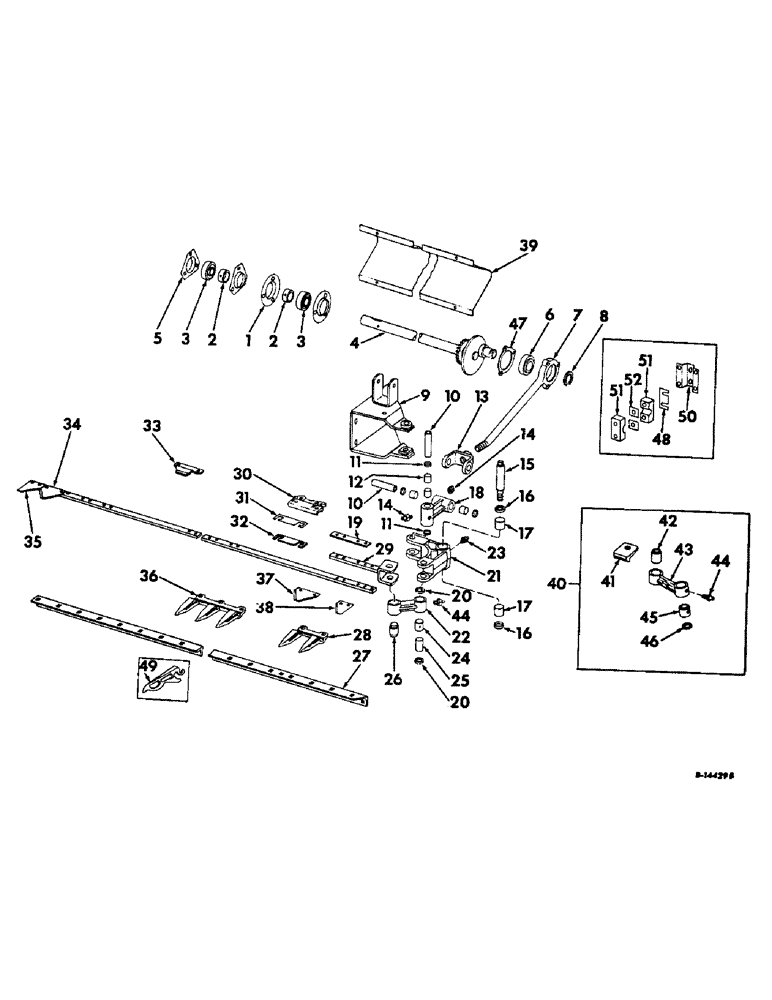

Схема запчастей Case IH 315 - (Q-09) - PLATFORMS, KNIFE AND KNIFE DRIVE Platforms
20
42
11
46
3
38
33
24
16
11
35
14
47
49
14
26
4
17
34
41
45
50
2
18
20
6
32
1
10
52
23
44
15
19
22
44
51
48
9
40
51
12
28
8
7
36
5
2
39
43
13
27
3
21
30
16
10
37
31
17
29
25

Артикул

Название

Примечание

Количество

1

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

knife countershaft brg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

557995R11

COLLAR

W/SET SCREW LKG

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup pt set

2шт.

3

617668R91

BALL BEARING

ASSY, knife drive countershaft

2шт.

4

936888R91

COUNTERSHAFT ASSY, feeder drive, 13-ft and 14-ft, Serial no, Serial Range: 501-700

1шт.

4

164108C91

COUNTERSHAFT ASSY, feeder drive, 13-ft and 14-ft, Serial no 701 and above

1шт.

4

936890R91

COUNTERSHAFT ASSY, feeder drive, 10-ft, Serial no, Serial Range: 501-700

1шт.

4

164107C91

COUNTERSHAFT ASSY, feeder drive, 10-ft, Serial no 701 and above

1шт.

4

165562C91

COUNTERSHAFT ASSY, feeder drive, 16-ft, Serial no 701 and above

1шт.

5

662649R1

RETAINER

FLANGE, knife drive countershaft brg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

6

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING ASSY, knife Pitman

1шт.

7

935605R91

PITMAN

ASSY, knife drive

1шт.

426899

NUT,Jam, 1"-8, G5

1 C-Z hex. jam

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

3шт.

8

26540D

RING, SNAP

RING, knife pitman stud snap

1шт.

9

935002R92

BRACKET ASSY, knife bellcrank support

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

4шт.

10

606802R1

BUSHING

Pitman arm bellcrank link

2шт.

11

459035R91

SEAL

SEAL ASSY, bellcrank link oil

4шт.

12

276574R91

NEEDLE BEARING

ASSY, bellcrank link needle

1шт.

13

606800R1

YOKE, Pitman arm front

1шт.

19677R1

BOLT, 3/8 x 4-1/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21872R1

WASHER

13/32 x 5/8 x 16 ga C-Z

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

14

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING 1/8-67-1/2 DEG ANGLE LUB

2шт.

15

610214R1

STUD, knife drive bellcrank

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21877R1

WASHER

1-5/32 x 2 x 22 ga C-Z

6шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

16

564808R91

WIPER

SEAL ASSY, bellcrank stud oil

2шт.

17

142929H

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 25.4mm W

BEARING ASSY, bellcrank stud

2шт.

18

606799R1

LINK, Pitman arm bellcrank

1шт.

18787R1

BOLT,Hex, 3/8"-16 x 4", G2

3/8 x 4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

19

560335R1

STRAP

SLIDE, knife head

1шт.

20

697494R91

OIL SEAL

SEAL ASSY, bellcrank link left end oil

2шт.

21

606801R11

BELLCRANK ASSY, knife drive

1шт.

18172R1

BOLT

3/4 x 3 C-Z hex-hd mach.

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

22

610212R11

LINK ASSY, knife head bellcrank, Includes ref nos 24 and 26

1шт.

23

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

24

565628R1

BUSHING,25.43mm ID x 31.75mm OD x 28.65mm L

bellcrank link left end

1шт.

25

565627R1

BUSHING

SLEEVE, bellcrank link left end

1шт.

26

560388R91

COMPOSITE RING

BUSHING, knife head

1шт.

27

606803R2

ANGLE, cutter bar, 13-ft

1шт.

27

936400R2

ANGLE, cutter bar, 10 ft

1шт.

27

155510C1

ANGLE, cutter bar, 14-ft

1шт.

27

165553C1

ANGLE, cutter bar, 16-ft

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120371

NUT,1/2"-20, G5

1шт.

181700

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 5

SCREW, 1/2-20 x 1-1/2 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

28

633098R1

GUARD

double, 3 used 13 ft, 4 used 10 ft, 2 used 14 ft and 6 used 16 ft

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, guard

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

29

610219R91

HEAD

ASSY, knife

1шт.

18172R1

BOLT

3/4 x 3 C-Z hex-hd mach.

1шт.

280954

NUT,3/4"-10, G5

1шт.

14767R1

RIVET,Oval Hd, .203" x 1"

no 6 x 1 small ov-hd

5шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

30

2164K

GUIDE

knife head

1шт.

495969R1

BOLT, 3/8 x 1-3/4 sq-nk crg type 2

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

31

28347KB

PLATE, LOCKING

SHIM, knife head guide

6шт.

32

611417R1

SHIM, knife head guide

1шт.

33

552082R1

GUIDE

CLIP, knife, 8 used 13 ft, 9 used 14 ft, 6 used 10 ft and 11 used 16 ft

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

34

154312C91

KNIFE ASSY, 13 ft

1шт.

34

154310C91

KNIFE ASSY, 13 ft chrome

1шт.

34

154313C91

KNIFE ASSY, 10 ft

1шт.

34

154311C91

KNIFE ASSY, 10 ft chrome

1шт.

34

155508C91

KNIFE ASSY, 14 ft

1шт.

34

155509C91

KNIFE ASSY, 14 ft chrome

1шт.

34

165560C91

KNIFE ASSY, 16 ft

1шт.

34

165593C91

KNIFE ASSY, 16 ft chrome

1шт.

35

634791R1

KNIFE SECTION

SECTION, serrated right half

1шт.

35

634792R1

KNIFE SECTION

SECTION, knife right half, chrome

1шт.

14755R1

RIVET,Oval Hd, .203" x 5/8"

no 6 x 5/8 small ov-hd

2шт.

36

633240R1

GUARD

triple, 15 used 13 ft 17 used 14 ft and 16 ft, 11 used 10 ft

1шт.

455967R1

BOLT, guard

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

37

634793R1

KNIFE SECTION

SECTION, serrated, 50 used 13 ft, 54 used 14 ft, 40 used 10 ft and 62 used 16 ft

1шт.

37

634794R1

KNIFE SECTION

SECTION, serrated, chrome, 50 used 13 ft, 54 used 14 ft, 40 used 10 ft and 62 used 16 ft

1шт.

14755R1

RIVET,Oval Hd, .203" x 5/8"

no 6 x 5/8 small ov-hd

1шт.

38

936562R1

SECTION, serrated left half

1шт.

38

936563R1

SECTION, knife left half, chrome

1шт.

39

617191R1

SHIELD, knife drive countershaft, 13 ft and 14 ft

1шт.

39

936398R1

SHIELD, knife drive countershaft, 10 ft

1шт.

39

165564C1

SHIELD, knife drive countershaft, 16 ft, Serial no 701 and above

1шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z pan-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

40

CUTTER BAR WEDGE ATTACH

1шт.

41

563840R1

SPACER, cutter bar, 18 used 13 ft and 14 ft, 15 used 10 ft, 20 used 16 ft

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

42

560388R91

COMPOSITE RING

BUSHING

1шт.

43

152957C11

ARM ASSY, knife bell crank, CP, Includes ref nos 42 and 45

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

44

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 UNF str-lub

2шт.

45

565628R1

BUSHING,25.43mm ID x 31.75mm OD x 28.65mm L

1шт.

46

697494R91

OIL SEAL

OIL SEAL

2шт.

47

572139R1

RETAINER

Pitman brg

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

48

628291R1

STRIP, clamp shim, 16 ft, Serial no 701 and above

3шт.

49

163417C91

GRAIN LIFTER

LIFTER ASSY, grain, special

1шт.

50

165565C1

BRACKET, countershaft center bearing, 16 ft, Serial no 701 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

51

936638R1

BEARING

BLOCK, countershaft center bearing, 16 ft, Serial no 701 and above

2шт.

18787R1

BOLT,Hex, 3/8"-16 x 4", G2

3/8 x 3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469688R1

WASHER, 13/32 x 3/4 x 16 gr C-Z

2шт.

52

936639R1

SHIM

countershaft center bearing, 16 ft, Serial no 701 and above

8шт.
