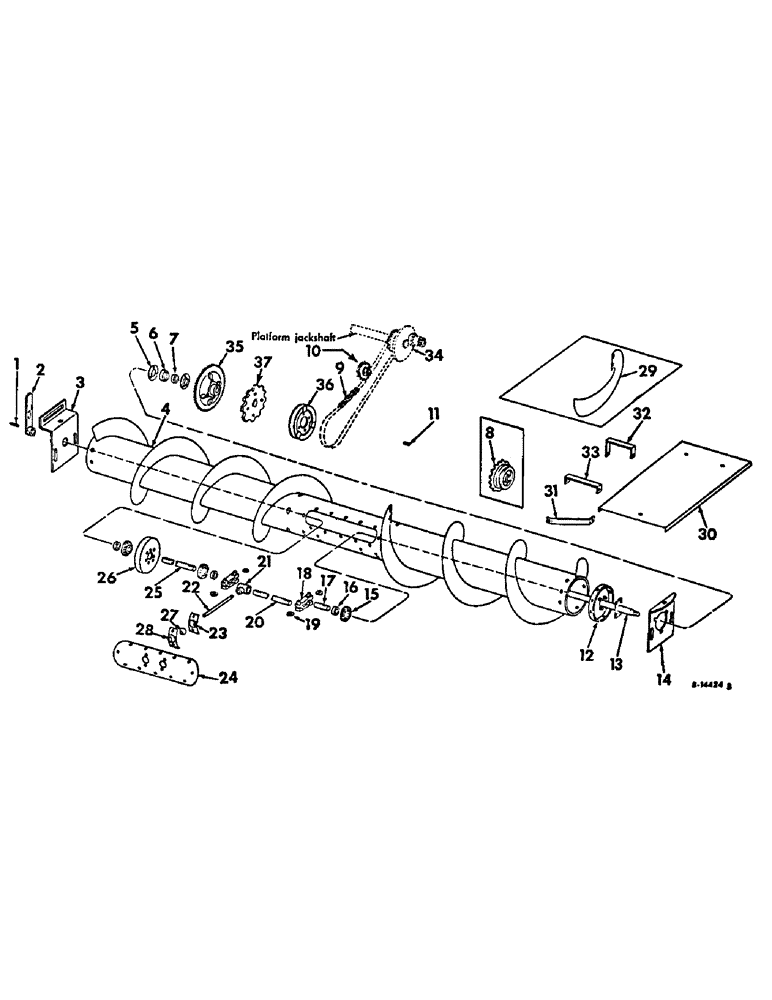

Запчасти Case IH 315 (Q-07) - PLATFORMS, PLATFORM AUGER Platforms

1

Q98

KEY, 1/4 x 1-7/8 sq parallel adj lever hub 1/4" Sq x 1 7/8", Par

1шт.

2

617179R91

LEVER ASSY, auger finger adj

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 C-Z hex jam

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16 x 1 sq-hd set cup-pt

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

3

610245R1

PLATE, auger right adj

1шт.

935032R1

BOLT, 3/8 x 3 C-Z sq-nk crg thread 2-3/4

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga

1шт.

4

152940C91

AUGER ASSY, 13-ft

1шт.

4

155558C91

AUGER ASSY, 14-ft

1шт.

4

152939C91

AUGER ASSY, 10-ft

1шт.

4

165567C91

AUGER ASSY, 16 ft, Serial no 701 and above

1шт.

5

662649R1

RETAINER

FLANGE, auger drive shaft brg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

617668R91

BALL BEARING

ASSY, auger drive shaft

1шт.

7

557995R11

COLLAR

W/SET SCREW LKG

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt set

1шт.

8

936891R1

PULLEY, auger drive sprocket and reel countershaft 26-T, standard, 7 in. OD pulley, tapered bore, For use w/countershafts 936888R91 and 936890R91, Serial no 501 to 700 (Replaces 936981R1)

1шт.

8

936892R1

SPROCKET, platform auger driven 21-T, special fast speed, 5-13/16 OD pulley, tapered bore, For use w/countershafts 936888R91 and 936890R91, Serial no 501 to 700 (Replaces 936982R1)

1шт.

9

CHAIN ASSY, auger drive, Use w/countershafts 936888R91 and 936890R91 serial no 501 to 700, Use 37 links from 10 ft roll marked 569089R91, three connecting links 587372R91 and one offset connecting link 456929R91

1шт.

9

CHAIN ASSY, auger drive, Use w/countershafts 164108C91, 164107C91 and 165562C91 serial no 701 and above, Use 83 links from 10-ft roll marked 1791D, one connecting link 1301D and two offset links 1315D

1шт.

10

565442R91

SPROCKET

ASSY, auger drive chain

1шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

4шт.

11

192

KEY,5/16" Sq x 1 5/8", Par

5/16 x 1-5/8 sq parallel

1шт.

12

565669R91

DISC ASSY, auger left support auger drive sprocket

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

13

617170R11

SHAFT ASSY, auger drive

1шт.

161387C1

NUT

7/8-14NF C-Z slt hex jam

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

21875R1

WASHER

29/32 x 2 x 16 ga C-Z

1шт.

14

610244R1

PLATE, auger left adj

1шт.

935032R1

BOLT, 3/8 x 3 C-Z sq-nk crg thread 2-3/4

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga

2шт.

15

564851R91

BALL BEARING,1.002" ID x 3.75" OD x 0.9"

ASSY, auger

3шт.

16

564853R11

COLLAR

W/SET SCREW LKG

3шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

3шт.

17

558353R1

SHAFT

auger stub

1шт.

18

566608R11

CLAMP

ARM ASSY, auger shaft

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW, 3/8 x 2-1/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

19

28459KA

WASHER

auger shaft arm

4шт.

20

150829C1

SHAFT

auger center

1шт.

21

150725C1

HUB CAP

HUB, auger finger

12шт.

22

150728C1

SHAFT

PIN, auger finger

12шт.

150724C1

SPLIT PIN/SAFETY PIN

PIN, QA cot.

12шт.

23

150723C1

RETAINER

auger finger inner

12шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

24шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1-1/2 C-Z slt-pan-hd

24шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

24шт.

24

150731C1

COVER

auger inspection

1шт.

20599R1

SCREW

5/16 x 3/4 C-Z slt-pan-hd tap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

25

617172R1

SHAFT, auger adj, 13-ft and 10-ft

1шт.

25

155557C1

SHAFT, auger adj, 14-ft

1шт.

25

165566C1

SHAFT, auger adjusting, 16 ft, Serial no 701 and above

1шт.

26

563246R1

FLANGE

DISC, auger right support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

27

150727C1

BUSHING

auger finger pin retainer

12шт.

28

150726C1

RETAINER

auger finger outer

12шт.

29

569586R91

FLIGHT ASSY, auger LH extension

1шт.

29

569587R91

EXTENSION

FLIGHT ASSY, auger RH extension

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

4шт.

459063R1

SPRING NUT

5/16 Tinnerman

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

6шт.

30

154220C1

CHANNEL, platform auger drive

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach.

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach.

2шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

31

150106C1

BRACE, auger drive shield front

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

32

150107C1

CHANNEL, auger drive shield rear

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

33

150108C1

CHANNEL, auger drive shield top

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

34

COUNTER SHAFT ASSY, feeder drive, Refer to knife and knife drive unit for listing

1шт.

164181C91

BUNDLE SPROCKET AND PULLEY, Includes 164114C1 sprocket and 164115C1 pulley

1шт.

35

164110C1

SPROCKET ASSY.

SPROCKET, auger driven 52-T, standard, For use w/countershafts 164108C91, 164107C91 and 165562C91 serial no 701 and above

1шт.

35

164114C1

SPROCKET, auger driven 42-T special fast speed, For use w/countershafts 164108C91, 164107C91 and 165562C91 serial no 701 and above

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

36

164112C1

PULLEY, reel countershaft drive, standard, 7 in. OD x 2 in. bore, 10-ft, 13-ft and 14-ft, For use w/countershafts 164108C91 and 164107C91 serial no 701 and above

1шт.

36

164115C1

PULLEY, reel countershaft drive, special fast speed, 5-13/16 in. OD x 2 in. bore, 10-ft, 13-ft and 14-ft, For use w/countershafts 164108C91 and 164107C91 serial no 701 and above

1шт.

37

164113C1

SPROCKET, plate 11-T, 16 ft platform, For use w/countershaft 165562C91, Serial no 701 and above

1шт.
