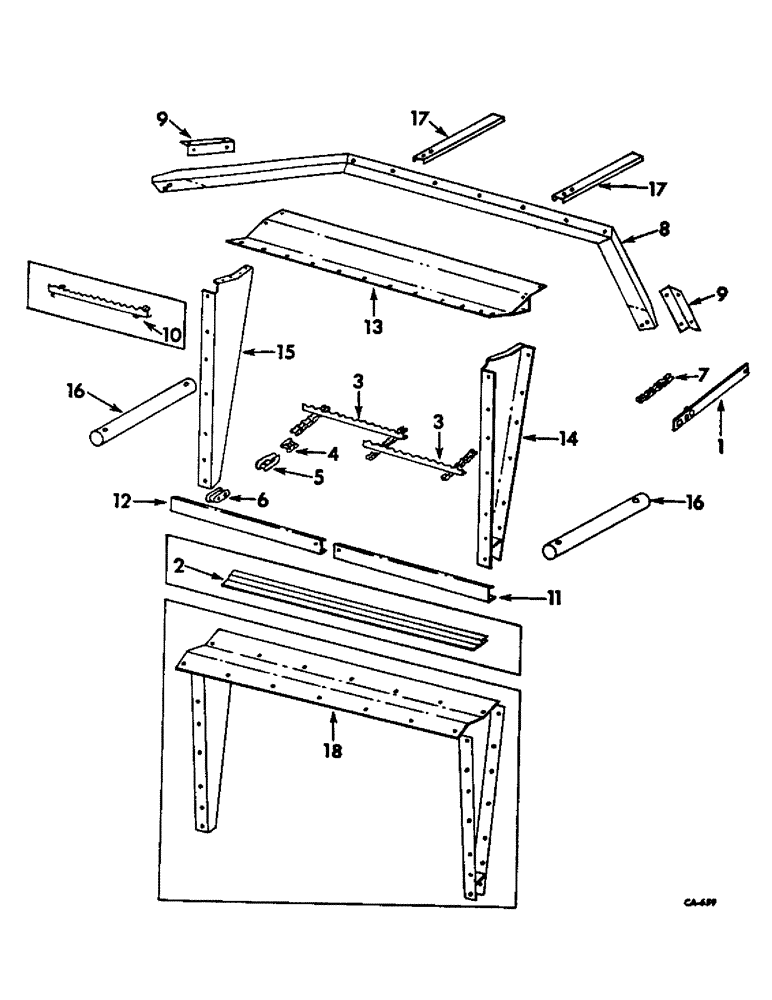

Запчасти Case IH 315 (Q-05) - PLATFORMS, PLATFORM WEDGE Platforms

1

612603R91

ARM ASSY, conveyor lower drum adjusting

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

21902R1

WASHER, 15/32 x 1-1/2 x 16 ga C-Z

2шт.

21904R1

WASHER, 15/32 x 7/8 x 11 ga C-Z

2шт.

2

612639R11

FILLER ASSY, Serial no, Serial Range: 501-700

1шт.

3

159633C91

CONVEYOR ASSY, feeder chain extension

1шт.

4

1369D

CHAIN LINK

LINK, 1-1/2 extended pitch roller

1шт.

5

1367D

LINK

1-1/2 extended pitch offset

1шт.

6

1368D

LINK

1-1/2 extended pitch connecting

1шт.

7

CHAIN ASSY, platform jackshaft drive, Use 3 roller links 456979R91 and 1 connecting link 456980R91

1шт.

8

159638C1

SUPPORT, platform brace, 13 ft and 14 ft platforms

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

9

159632C1

ANGLE, platform support, 13 ft and 14 ft platforms

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

4шт.

10

153631C91

CONVEYOR

ASSY, feeder LH

1шт.

10

153632C91

CONVEYOR

ASSY, feeder RH

1шт.

11

169437C1

CHANNEL, feeder bottom LH, Serial no 701 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

12

169438C1

CHANNEL, feeder bottom RH, Serial no 701 and above

1шт.

18494

BOLT, 3/8 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

13

166561C91

TOP ASSY, wedge, Serial no 2298 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

166603C91

SIDE ASSY, wedge LH, Serial no 2298 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

8шт.

15

166604C91

SIDE ASSY, wedge RH, Serial no 2298 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

16

164814C1

EXTENSION, platform lift cylinder, extra long feeder, Serial no 2298 and above

1шт.

17

169014C1

CHANNEL, feed plate guide, extra long feeder

1шт.

18

159629C91

WEDGE ASSY, platform tilting, For long feeders, Order 166459C91 wedge package consists of ref nos 13, 14 and 15

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.
