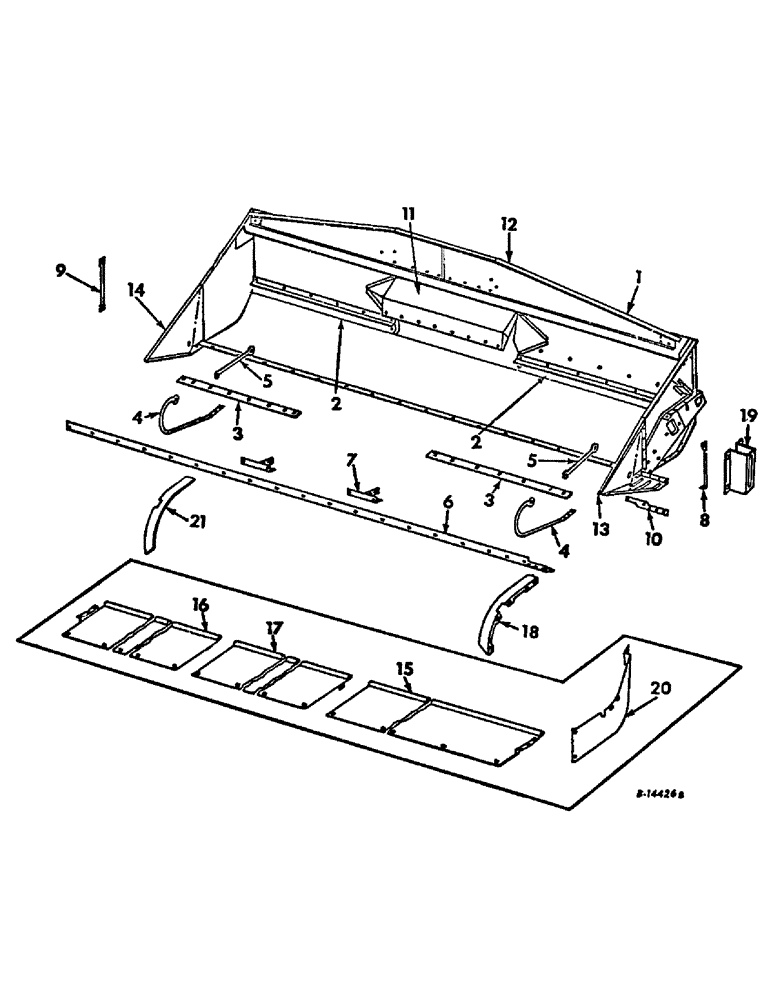

Запчасти Case IH 315 (Q-02) - PLATFORMS, PLATFORM AND BOTTOM SHIELDS Platforms

1

153635C91

PLATFORM ASSY, 13 ft, Serial no 700 and below

1шт.

1

163528C91

PLATFORM ASSY, 13-ft, Serial no 701 and above

1шт.

1

153634C91

PLATFORM ASSY, 10 ft, Serial no 700 and below

1шт.

1

163527C91

PLATFORM ASSY, 10-ft, Serial no 701 and above

1шт.

1

155504C91

PLATFORM ASSY, 14 ft, Serial no 700 and below

1шт.

1

163529C91

PLATFORM ASSY, 14-ft, Serial no 701 and above

1шт.

1

165536C91

PLATFORM ASSY, 16 ft, Serial no 701 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

475954C1

NUT, 3/8 C-Z whiz lock

4шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 C-Z slt-truss-hd whiz lock

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

2

154022C1

ANGLE, stripper, 1 used 13-ft LH and 2 used 14-ft

1шт.

2

154020C1

ANGLE, stripper LH, 1 used 10-ft

1шт.

2

154024C1

ANGLE, stripper RH, 1 used 13-ft and 10-ft

1шт.

2

165554C1

ANGLE, stripper LH 16 ft, Serial no 701 and above

1шт.

2

165555C1

ANGLE, stripper RH 16-ft, Serial no 701 and above

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex0hd mach

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

154023C1

STRIP, stripper RH, 1 used 13-ft and 10-ft

1шт.

3

154021C1

STRIP, stripper, 1 used LH 13-ft, 2 used 14-ft

1шт.

3

154019C1

STRIP, stripper LH, 10-ft

1шт.

3

165546C1

STRIP, stripper LH 16 ft, Serial no 701 and above

1шт.

3

165547C1

STRIP, stripper RH 16 ft, Serial no 701 and above

1шт.

16887R1

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

159905C91

ROD ASSY, divider, For use with cutting platforms

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

135470

PLATE

RIVET, 7/16 x 1-1/2 wagon box-hd solid

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap.

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

4шт.

5

564825R1

LINK, divider rod, For use with cutting platforms

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

606994R31

SUPPORT ASSY, cutter bar

1шт.

6

936401R93

SUPPORT ASSY, cutter bar

1шт.

6

155505C92

SUPPORT ASSY, cutter bar, 14-ft platform

1шт.

6

165548C92

SUPPORT ASSY, cutter bar, 16 ft platform

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

19420R1

BOLT, 7/16 x 3/4 C-Z hex-hd mach.

1шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

5шт.

7

606991R91

GUSSET ASSY, cutter bar support center

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach.

4шт.

17443R1

BOLT, 1/2 x 1 C-Z hex-hd mach.

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

8

610143R1

BRACE, LH side sheet

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach.

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

610144R1

BRACE, RH side sheet

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach.

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

607118R1

STIFFENER, cutter bar support

1шт.

11

162123C91

SECTION ASSY, platform dust

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach.

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

156518C91

SECTION ASSY, platform support, 13-ft platform

1шт.

12

156505C91

SECTION ASSY, platform support, 10-ft platform

1шт.

12

156514C91

SECTION ASSY, platform support, 14-ft platform

1шт.

12

165556C92

SUPPORT ASSY, platform, 16 ft platform

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

1шт.

21333R1

NUT,3/8"-16, G8

3/8 C-Z type 4 hex

1шт.

9418646

NUT,7/16"-14, G8

7/16 C-Z type 4 hex

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

SCREW, 3/8 x 1 C-Z type 4 hex-hd cap

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

SCREW, 3/8 x 1-1/4 C-Z type 4 hex-hd cap

1шт.

208490R1

SCREW, 7/16 x 1 C-Z hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

1шт.

13

610137R92

DIVIDER ASSY, LH

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach.

4шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach.

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

3шт.

14

610138R91

DIVIDER ASSY, RH

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach.

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach.

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

606998R11

SHIELD ASSY, platform bottom left, 13-ft and 14-ft

1шт.

15

936409R91

SHIELD ASSY, platform bottom left, 10-ft

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach.

3шт.

120376

NUT,5/16"-18, G5

3шт.

133891

SCREW, 3/8 x 3/4 C-Z slt-f-hd mach., 5 used 13-ft and 14-ft 4 used 10-ft

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

15

165588C91

SHIELD ASSY, platform bottom left, 16-ft

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

21756R1

WASHER

15/32 x 3/4 x 22 ga C-Z

1шт.

16

606999R11

SHIELD ASSY, platform bottom RH, 13-ft and 10-ft

1шт.

16

156242C91

SHIELD ASSY, platform bottom RH, 14-ft

1шт.

16

165590C91

SHIELD ASSY, platform bottom right, 16 ft

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach.

3шт.

120376

NUT,5/16"-18, G5

3шт.

133891

SCREW, 3/8 x 3/4 C-Z slt-f-hd mach.

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

17

607000R11

SHIELD ASSY, platform bottom center

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach.

2шт.

133891

SCREW, 3/8 x 3/4 C-Z slt-f-hd mach

5шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

21756R1

WASHER

15/32 x 3/4 x 22 ga C-Z

4шт.

18

568443R2

DEFLECTOR, platform end sheet LH, standard for rice special for grain

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

13шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

19

163699C1

BRACKET, auger drive idler

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

156252C11

SHIELD ASSY, knife Pitman

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach.

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

133891

SCREW, 3/8 x 3/4 C-Z slt-f-hd mach.

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

21

568444R2

DEFLECTOR, platform end sheet RH, standard for rice special for grain

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

3шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
