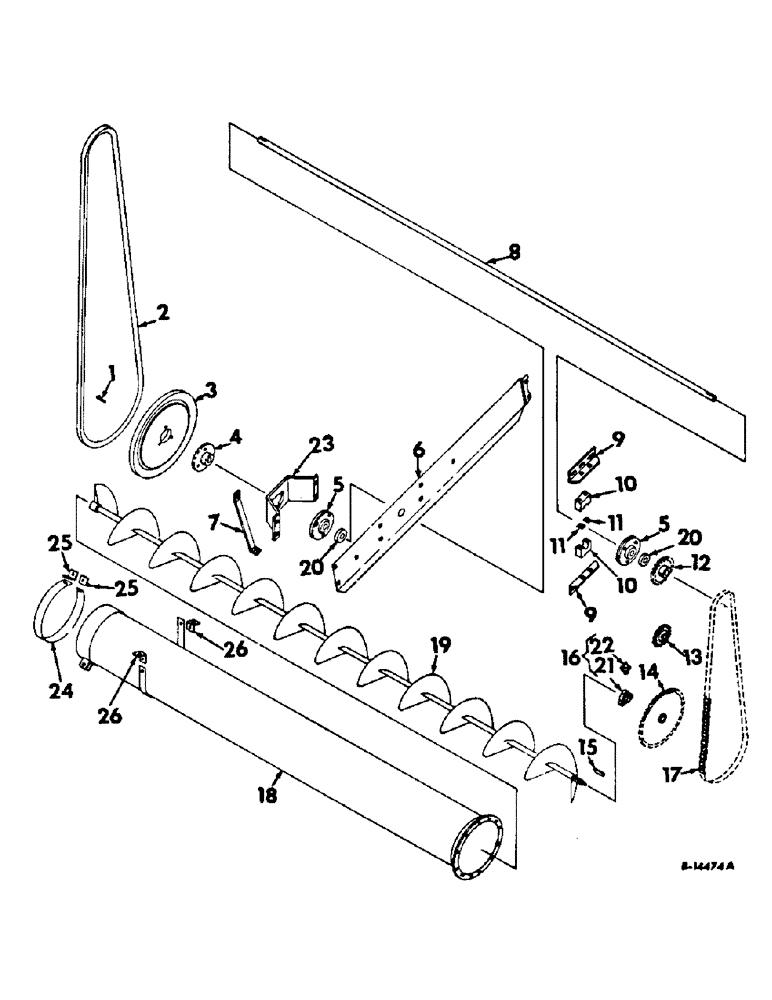

Запчасти Case IH 315 (T-12) - GRAIN HOPPER AND BAGGER, GRAIN TANK CROSS AUGER Grain Tank

1

Q1433

KEY, 5/16 x 1-3/8 gib Gib, 5/16" Sq x 1 3/8"

1шт.

2

151731C1

V-BELT,0.88" W x 125.99" L

Unloader Drive 0.88" W x 125.99" L

1шт.

3

152028C91

PULLEY ASSY, unloader jackshaft driven, 18-19/32 OD, 2-11/16 bore

1шт.

4

151720C1

HUB, unloader jackshaft pulley

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

155802C91

BEARING

ASSY, unloader shaft ball

2шт.

6

152043C1

REINFORCEMENT, unloader LH brg

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

7

152978C1

BRACE, unloader brg reinforcement

1шт.

19420R1

BOLT, 7/16 x 3/4 C-Z hex-hd mach

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

8

152041C1

SHAFT, unloader

1шт.

9

158768C1

ANGLE, unloader brg support

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

18516R1

BOLT,3/8" x 3 3/4"

3/8 x 3-3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

6шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20863R1

WASHER, 11/32 x 1 x 11 ga C-Z

6шт.

10

158767C1

BEARING, unloader drive center wood

2шт.

11

936639R1

SHIM

1шт.

12

155898C91

SPROCKET ASSY, unloader drive 21-T

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21891R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2 C-Z std-hd

1шт.

13

565442R91

SPROCKET

ASSY, upper unloader tightener 17-T

1шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374

SPARE PART

WASHER, 17/32 x 1-1/4 x 16 ga C-Z

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq x 1-1/4 x 11 ga C-Z

1шт.

14

155901C91

SPROCKET ASSY, lower unloader driven 45-T

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

2шт.

15

150532C1

KEY

1/4 x 1 sq. parallel

1шт.

16

155932C92

BEARING

ASSY, lower unloader ball

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

6шт.

17

CHAIN, lower unloader drive, Use 69 links from 10 ft roll marked 569089R91, one connecting link 456980R91 and one offset connecting link 456929R91

1шт.

191598

PIN, 3/64 x 3/8 ext prong cotter

2шт.

18

152052C91

TUBE ASSY, cross unloader, Serial no, Serial Range: 501-2297

1шт.

18

167579C1

TUBE ASSY, cross unloader, Serial no 2298 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

19

152055C91

AUGER ASSY, lower unloader RH

1шт.

20

572224R11

COLLAR

W/SET SCREW, lkg

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd set

2шт.

21

625020R91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

6шт.

22

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28NS 45 deg angle lub

1шт.

23

152042C1

BRACKET, unloader brg support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

24

167090C91

SEAL ASSY, unloader tube

1шт.

25

165520C1

CLIP, unloader tube anchor, Serial no 701 and above

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

122863

RIVET, 3/16 x 5/16 truss-hd tubular

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

155715C2

ANGLE, unloader tube attaching, Serial no 701 and above

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
