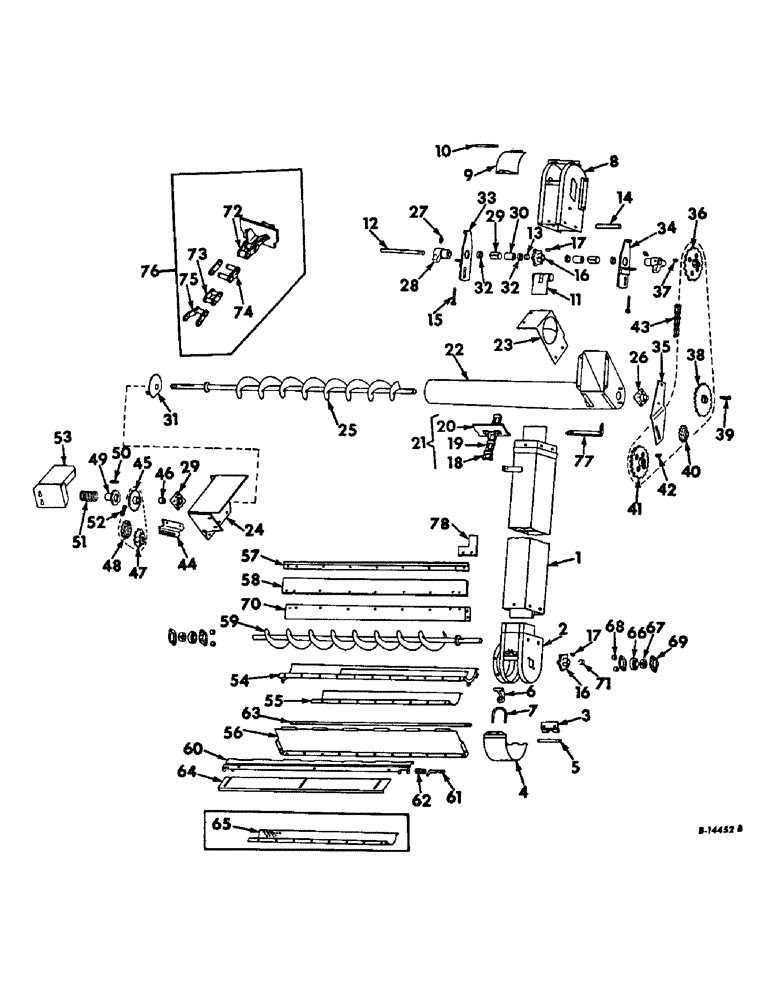

Запчасти Case IH 315 (S-06) - ELEVATORS, TAILINGS ELEVATOR, TROUGH AND DRIVE Elevators

1

152766C91

HOUSING ASSY, tailings elevator

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

10шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

16шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

6шт.

2

153330C91

BOOT ASSY, tailings elevator

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

3шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

3шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

935131R1

HINGE, tailings elevator boot half, grain, perforated screen attachment and edible beans

1шт.

3

153334C1

HINGE, elevator boot door, rice

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

156236C1

DOOR, tailings elevator boot, grain

1шт.

4

157169C1

DOOR, tailings elevator boot, perforated screen attach and edible beans

1шт.

4

157146C1

DOOR, tailings elevator boot, rice

1шт.

5

564457R1

PIN, tailings elevator boot door

1шт.

6

155909C1

LATCH

elevator boot door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 C-Z std-hd

1шт.

7

664360R1

BOLT,U, 1/4" - 20 x 69.65"

elevator boot door

1шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4-20 ESNA stop

2шт.

8

155659C91

HEAD ASSY, tailings elevator

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

165491C1

DOOR, tailings elevator head

1шт.

18628R1

BOLT,Short NK, 1/4"-20 x 1 1/4", G2

1/4 x 1-1/4 C-Z sq-nk crg

1шт.

935735R1

WING NUT

1/4 C-Z wing

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

1шт.

10

564457R1

PIN, tailings elevator head door hinge

1шт.

11

564459R1

SHIELD

head shaft

1шт.

12

152828C1

SHAFT, tailings elevator head

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z

8шт.

13

553855R1

SPACER

elevator head shaft

1шт.

14

564451R1

SPACER, tailings elevator head

1шт.

15

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

elevator conveyor chain tightener

2шт.

18683R1

BOLT

5/16 x 6 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

16

629193R1

SPROCKET ASSY.

SPROCKET, elevator conveyor chain 6-T, For use w/steel chain

2шт.

16

150719C91

SPROCKET ASSY.

SPROCKET ASSY, tailings elevator conveyor chain 6-T, For use w/roller chain

2шт.

17

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, 1/4 x 7/8 Woodruff A

2шт.

18

62COL

LINK, coupler, steel

1шт.

19

62

LINK ASSY.

LINK, plain, steel

1шт.

20

155891C91

FLIGHT W/ATTACHING LINK, conveyor chain, rubber, grain, perforated screen attach and rice

1шт.

21360K

RIVET

5/16 x 1/2 ov-hd tubular

2шт.

20

936291R91

FLIGHT W/ATTACHING LINK, conveyor chain, steel special

1шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 small rd-hd

2шт.

20

936451R91

FLIGHT W/ATTACHING LINK, conveyor chain, steel edible beans

1шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 small rd-hd

2шт.

21

152764C91

CHAIN ASSY, tailings conveyor, rubber flight and steel chain, grain, perforated screen attach and rice

1шт.

21

155879C91

CHAIN ASSY, tailings conveyor, rubber and steel flights and steel chain, edible beans

1шт.

22

152822C91

TUBE ASSY, tailings elevator delivery

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

23

152829C11

REINFORCEMENT ASSY, tailings delivery auger RH end

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

24

152763C11

SUPPORT ASSY, tailings delivery auger LH end

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

25

152760C91

AUGER ASSY, tailings delivery

1шт.

426767

NUT,7/8"-14, G5

7/8-14NF C-Z hex.

1шт.

NLS

NO LONGER SERVICED

7/8-14NF C-Z hex. jam

1шт.

21876R1

WASHER, 29/32 x 2-3/4 x 7 ga C-Z

1шт.

589937R1

WASHER

delivery auger shaft

1шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

1шт.

26

631527R91

BALL BEARING

ASSY, tailings delivery auger shaft ball

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

28

631704R1

HOUSING

elevator head shaft brg

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

631735R1

SLEEVE CYLINDER

RACE, elevator head shaft brg

2шт.

30

ST1300

BEARING

ASSY, elevator head shaft

2шт.

31

154314C91

COVER ASSY, tailings auger tube

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

32

631734R91

OIL SEAL

elevator head shaft brg housing oil

4шт.

33

631699R91

SUPPORT

BRACKET ASSY, tailings elevator LH, Serial no 700 and below

1шт.

33

164839C91

BRACKET ASSY, elevator conveyor tightener LH, Serial no 701 and above

1шт.

34

631700R91

SUPPORT

BRACKET ASSY, tailings elevator RH, Serial no 700 and below

1шт.

34

164840C91

BRACKET ASSY, elevator conveyor tightener RH, Serial no 701 and above

1шт.

35

152838C1

BRACKET, elevator drive tightener

1шт.

106969R1

WASHER

11/32 x 1-1/4 x 16 ga C-Z

2шт.

36

155717C1

SPROCKET, tailings elevator driven 24-T

1шт.

124824

NUT,Hex, 5/16" - 18

5/16-18 C-Z hex. jam

2шт.

21765R1

SCREW, 5/16 x 5/8 C-Z sq-hd cup-pt set

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 C-Z sq-hd cup-pt set

1шт.

37

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, 1/4 x 7/8 Woodruff

1шт.

38

935019R1

SPROCKET ASSY.

SPROCKET, tailings elevator 16-T, grain, rice and perforated screen

1шт.

38

154319C1

SPROCKET, tailings elevator drive 13-T, edible bean

1шт.

39

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 x 1-1/2 gib

1шт.

40

565336R91

BEARING

SPROCKET ASSY, tailings elevator drive

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 znd sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22242R1

SQ HOLE WASHER

17/32 x 1-1/4 x 14 ga C-Z

1шт.

178374R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

222442R1

WASHER, 17/32 sq x 1-1/4 x 16 ga C-Z

1шт.

41

606495R1

SPROCKET, grain elevator jack shaft 12T

1шт.

NLS

NO LONGER SERVICED

5/16-18 C-Z hex. jam

2шт.

27165R1

SCREW, 5/16 x 5/8 C-Z sq-hd cup-pt set

2шт.

42

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, 1/4 x 7/8 Woodruff

1шт.

43

CHAIN, elevator drive, grain, rice and perforated screen, Use 53 links from 10 ft roll marked 569088R91, one connecting link 457113R91 and three offset connecting links 457114R91

1шт.

43

CHAIN, elevator drive, edible bean, Use 53 links form 10 ft roll marked 569088R91, one connecting link 457113R91 and one offset link 457114R91

1шт.

44

152762C1

BRACKET, tailings delivery auger drive idler

1шт.

45

606484R11

SPROCKET ASSY, tailings delivery auger driven 16 T, Includes ref no 46

1шт.

46

606485R1

BUSHING, tailings delivery auger driven sprocket

1шт.

47

151711C1

SPROCKET, tailings delivery auger driven 12T

1шт.

48

565336R91

BEARING

SPROCKET ASSY, delivery auger drive chain tightener 11-T

1шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22242R1

SQ HOLE WASHER

17/32 sq x 1-1/4 x 14 ga C-Z

1шт.

178374R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

2шт.

49

606496R1

CLUTCH, tailings elevator auger drive

1шт.

20705R1

WASHER

1-25/32 x 2-1/2 x 16 ga C-Z

3шт.

50

Q20

KEY,1/4" Sq x 2 1/8", Par

1/4 x 2-1/8 sq parallel

1шт.

51

619034R1

SPRING

driven sprocket clutch

1шт.

52

CHAIN, tailings delivery auger drive roller, Use 47 links from 10 ft roll marked 569088C91, one connecting link 457113R91 and two offset links 457114R91

1шт.

53

153154C1

SHIELD, tailings delivery slip clutch

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

54

612499R1

SHEET

tailings auger trough center

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

11шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

11шт.

120376

NUT,5/16"-18, G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

11шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

55

612500R1

COVER, tailings auger trough center sheet

1шт.

56

606505R1

SECTION, tailings auger trough rear

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

11шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

11шт.

120376

NUT,5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

11шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

57

610301R1

PLATE, tailing auger trough seal

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

9шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

9шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

58

151095C1

SEAL, tailings auger trough

1шт.

59

152932C91

AUGER ASSY, tailings

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

60

611046R11

HINGE ASSY, tail gate

1шт.

61

611044R1

AXLE PIN,6.35mm OD

PIN, tail gate locking

2шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

2шт.

62

606245R1

SPRING

locking pin

2шт.

63

152514C1

ROD, tail gate hinge

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

64

610310R11

EXTENSION ASSY, tail gate

1шт.

18627R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1", Gr 2

BOLT, 1/4 x 1 C-Z sq-nk crg

3шт.

935735R1

WING NUT

1/4 wing

3шт.

102380

SHANK

WASHER, 1/4 C-Z med lock

3шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

3шт.

65

612501R1

SCREEN, tailings auger trough, perforated screen attach and edible beans

1шт.

66

564991R91

BEARING

ASSY, tailings auger shaft ball

2шт.

67

658006R11

COLLAR

W/SET SCREW, lkg

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt

2шт.

68

86224H

SPACER,1/4" Pipe x 3/8"

Auger shaft brg 1/4" Pipe x 3/8"

4шт.

69

612031R1

FLANGED BEARING

tailings auger shaft brg

4шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20744R1

WASHER, 11/32 sq x 7/8 x 16 ga C-Z

4шт.

70

610312R1

TROUGH, tailings auger front

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

71

522077R1

SPACER

tailings auger shaft

1шт.

72

155857C91

FLIGHT ASSY, tailings elevator conveyor chain, rubber flight and roller chain, grain special

1шт.

558430R1

RIVET

5/16 x 19/32 ov-hd tubular

2шт.

73

588566R91

LINK

plain, roller

1шт.

74

588564R91

LINK, connecting, roller

1шт.

75

588562R91

CHAIN LINK

LINK, offset, roller

1шт.

76

155650C91

CHAIN ASSY, tailings elevator conveyor, rubber flight and roller chain, grain special

1шт.

76

155858C91

CHAIN ASSY, tailings elevator conveyor, bean special rubber and steel flights and roller chain

1шт.

77

161479C1

BRACE, tightener bracket

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

78

168525C1

SEAL, tailings auger trough RH

1шт.
