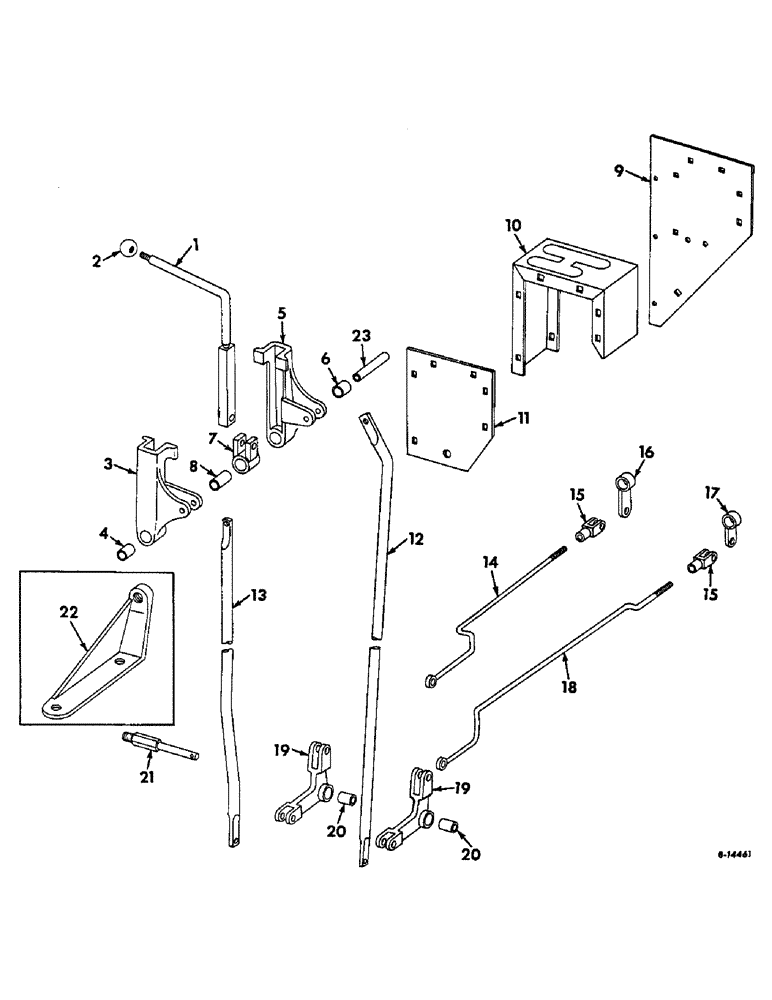

Запчасти Case IH 315 (H-16) - CONTROLS, TRANSMISSION GEAR SHIFT CONTROL Controls

1

151784C91

ROD ASSY, gear shift

1шт.

2

610638R1

KNOB

gear shift, Serial no 700 and below

1шт.

2

163574C1

KNOB

gear shift LH, Serial no 701 and above

1шт.

3

626609R11

ARM ASSY, gear shift LH, Includes ref no 4

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

4

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

shift arm

1шт.

5

626608R11

ARM ASSY, gear shift RH, Includes ref no 6

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

6

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

shift arm

1шт.

7

564520R11

PIVOT

ASSY, gear shift, Includes ref no 8

1шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

8

568920R1

BUSHING

gear shift pivot

1шт.

9

151790C1

STRIP, gear shift support

1шт.

10

153419C91

BRACKET ASSY, gear shift

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

11

151787C1

STRIP, gear shift bracket cover

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

5шт.

19677R1

BOLT, 3/8 x 4-1/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

6шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

151786C1

BRACE, 2nd and reverse upper shift

1шт.

13

151785C1

BRACE, 1st and 3rd upper shift

1шт.

14

606621R1

ROD, 1st and 3rd lower shift

1шт.

271506

DISC

7/16-20 C-Z hex.

1шт.

15

117825

CLEVIS, 7/16-20 x 2-7/8 light adj

2шт.

121224

SUPPORT

3/32" x 1"

2шт.

138085

AXLE PIN,7/16" x 1.190"

PIN, 7/16 x 1-15/16 C-Z rod end

2шт.

16

614291R1

ARM, 1st and 3rd gear shift

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

17

614288R1

ARM, 2nd and reverse gear shift

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

18

606622R1

ROD, 2nd and reverse lower shift

1шт.

271505

BODY

7/16-20 C-Z hex.

1шт.

19

153630C11

LEVER ASSY, gear shift connector, Includes ref no 20

2шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

4шт.

20

568920R1

BUSHING

connector lower

2шт.

21

606624R1

SHAFT, shift lever lower pivot

1шт.

21796R1

WASHER

PIN, 3/16 x 1-1/4 C-Z cot.

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

22

156570C1

BRACKET, shift linkage, hydrostatic ground drive

1шт.

18821R1

BOLT

5/8 x 1-1/4 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23

564519R1

SPACER, gear shift arm

1шт.
