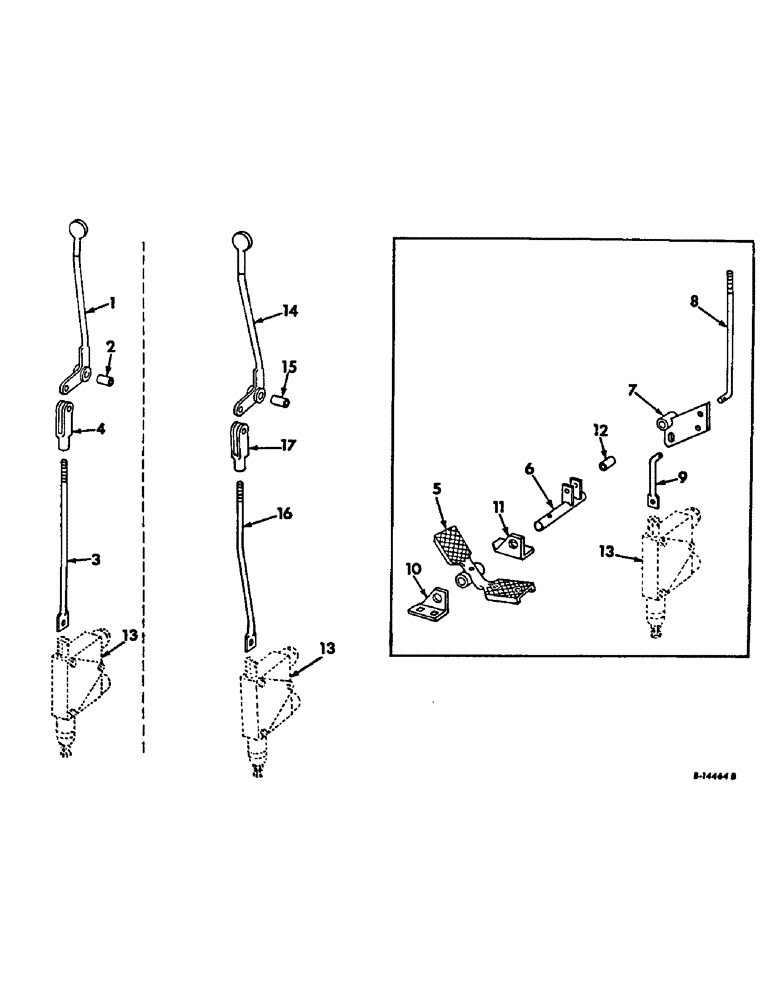

Запчасти Case IH 315 (H-14) - CONTROLS, PROPULSION AND PLATFORM LIFT CONTROLS, BELT DRIVE TRANSMISSION Controls

1

152642C2

LEVER, propulsion control, Includes ref no 2, transmission not rice or stand-up operations

1шт.

1

159925C1

LEVER, propulsion control, Includes ref no 2, propulsion belt drive transmission rice and special for stand-up operations

1шт.

2

152647C1

BUSHING, propulsion control lever, propulsion belt drive trans

1шт.

3

152718C1

ROD, propulsion control, propulsion belt drive trans

1шт.

120369

NUT,3/8"-24, G5

1шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 C-Z rod end

1шт.

4

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8 rod end, propulsion belt drive trans

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

5

153890C1

PEDAL, propulsion control, foot propulsion attach special

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

6

153880C91

PIN ASSY, propulsion control, foot propulsion attach special

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21888R1

HEADED PIN,3/8" x 3/4", G2

PIN, 3/8 x 3/4 C-Z std-hd

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

3шт.

7

153883C91

LEVER ASSY, propulsion control, foot propulsion attach special

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

610695R1

ROD, propulsion control upper, foot propulsion attach special

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

9

153889C1

ROD, propulsion control lower, foot propulsion attach special

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

10

153885C1

ANGLE, foot control pivot LH, foot propulsion attach special

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

153886C1

ANGLE, foot control pivot RH, foot propulsion attach special

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

152647C1

BUSHING, propulsion control lever, foot propulsion attach special

1шт.

13

VALVE ASSY, hydraulic control, For components see list of parts under hydraulic valve

1шт.

14

152645C2

LEVER, platform lift control, belt drive trans not rice or stand-up operation

1шт.

14

159924C2

LEVER, platform lift control, belt drive trans, standard for rice and special stand-up operation grain

1шт.

15

152647C1

BUSHING, platform lift control rod, belt drive trans

1шт.

16

152719C1

ROD, platform lift control

1шт.

120369

NUT,3/8"-24, G5

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

17

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8 rod end

1шт.

120369

NUT,3/8"-24, G5

1шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), , Hydrostatic ground drive 1/16" x 3/4"

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

648002

KNIFE

1/8" x 3/4", belt drive transmission

1шт.

23067R1

PIN, 5/16 x 7/8 C-Z std-hd, belt drive transmission

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 C-Z rod end, hydrostatic ground drive

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.
