Запчасти Case IH 315 (H-12) - CONTROLS, PLATFORM LIFT AND GROUND SPEED CONTROL HYDROSTATIC GROUND DRIVE Controls

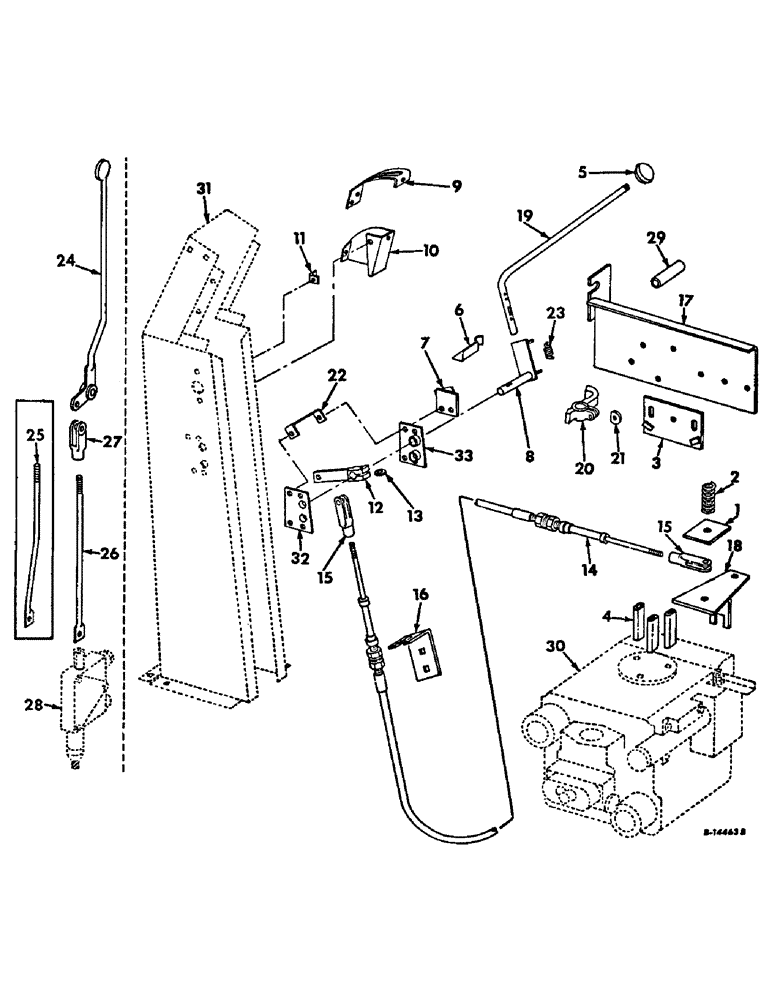

Схема запчастей Case IH 315 - (H-12) - CONTROLS, PLATFORM LIFT AND GROUND SPEED CONTROL HYDROSTATIC GROUND DRIVE Controls
29
26
13
4
31
32
24
33
9
12
11
14
21
5
27
6
3
23
8
25
28
15
2
20
15
19
30
10
17
16
22
1
18
7

Артикул

Название

Примечание

Количество

1

150627C1

FRICTION WASHER

pump control arm friction plastic

1шт.

2

28395H

SPRING

pump control arm

1шт.

3

150630C91

STOP

PLATE ASSY, pump control arm

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach.

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

4

573174R1

SPACER,5/8" Tube x 3"

pump control arm support plate

3шт.

5

559577R1

KNOB

ground speed control lever, Serial no 700 and below

1шт.

5

163574C1

KNOB

ground speed control lever, Serial no 701 and above

1шт.

6

152215C1

BRACKET, ground speed indicator stop

1шт.

134530

NUT,Hex, #6 - 32

1шт.

436668

SCREW, no. 6 x 7/8 C-Z pan-hd

1шт.

131044

LOCK WASHER

Lock, #6

1шт.

7

151921C91

BRACKET ASSY, ground speed neutral stop

1шт.

8

155023C91

BRACKET ASSY, ground speed lever

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

9

151907C1

INDICATOR, ground speed

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

10

151908C1

REINFORCEMENT, ground speed control lever

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

935612R1

BRACKET, ground speed control lever cover

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach.

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

151915C91

ARM ASSY, ground speed control lever

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

28459KA

WASHER

ground speed control lever arm

1шт.

14

151909C91

CABLE PULLING GRIP

CABLE ASSY, ground speed control

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16-18 C-Z hex jam

2шт.

15

104037

CLEVIS

ground speed control cable

2шт.

120690

PIN

5/16 x 31/32 C-Z rod end

2шт.

119120

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32 x 1 1/4"

2шт.

16

151914C1

ANGLE, cable anchor front

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

156895C91

BRACKET ASSY, pump control

1шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

SCREW, 3/8 x 4 C-Z hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

18

151917C92

ARM

ASSY, pump control actuating

1шт.

18802R1

SCREW,Hex, 7/16"-14 x 3", G8

BOLT, 7/16 x 3 C-Z hex-hd mach.

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

1шт.

19

155026C2

LEVER, ground speed control

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

1шт.

20

155025C1

PAWL, ground speed control lever

1шт.

21

28459KA

WASHER

ground speed control lever pawl

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22

151925C1

CLEVIS, steering cover tie

1шт.

23

151924C1

SPRING

ground speed control lever

1шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 C-Z hex-hd mach.

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

1шт.

24

159925C1

LEVER, platform lift control

1шт.

25

152719C1

ROD, platform lift control, For use w/hydraulic reel lift attach

1шт.

26

152718C1

ROD, platform lift control

1шт.

27

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8 rod end

1шт.

120369

NUT,3/8"-24, G5

1шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), , Hydrostatic ground drive 1/16" x 3/4"

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), , Belt drive transmission 3/32" x 3/4"

1шт.

23067R1

PIN, 5/16 x 7/8 C-Z std-hd, belt drive transmission

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 C-Z rod end, hydrostatic ground drive

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/l8 x 1-3/32 C-Z rod end

1шт.

28

VALVE ASSY, hydraulic control, For components see list of parts under hydraulic valve

1шт.

29

573174R1

SPACER,5/8" Tube x 3"

control bracket

1шт.

30

PUMP ASSY, ground drive, Refer to hydraulic drive pump unit for listing

1шт.

31

COVER ASSY, steering, Refer to steering cover and wheel, choke cable, oil pressure and temperature gauge for listing

1шт.

32

627407R91

PLATE ASSY, ground speed control lever LH

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

3шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

33

627408R91

PLATE ASSY, ground speed control lever RH

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

3шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
