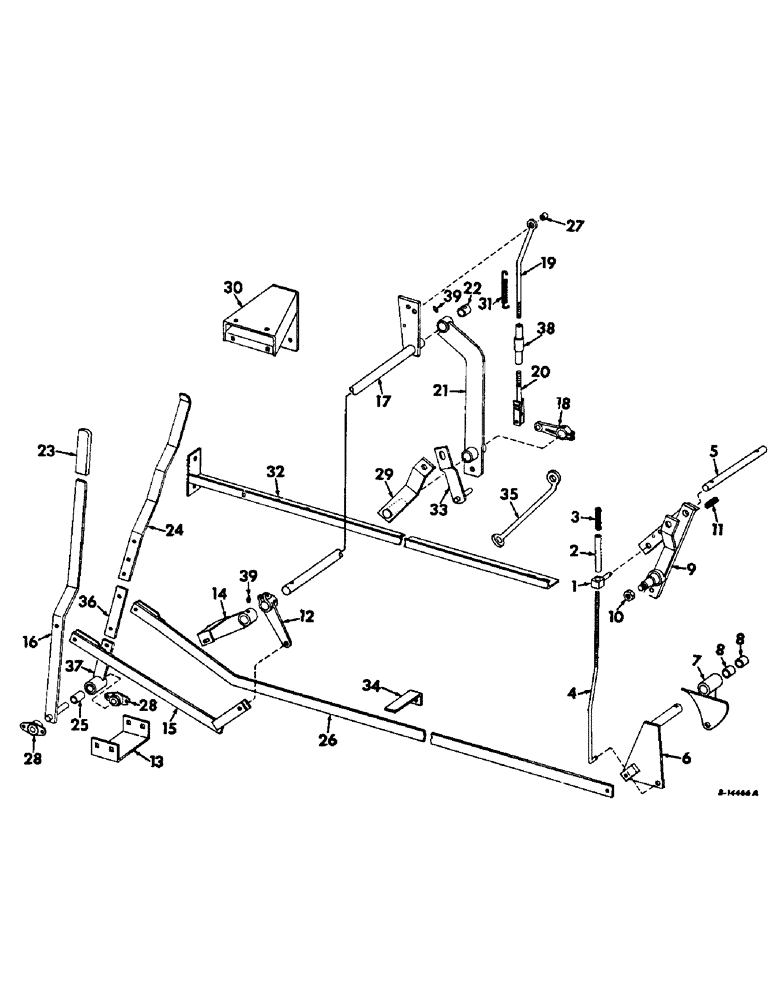

Запчасти Case IH 315 (H-10) - CONTROLS, FEEDER AND SEPARATOR CONTROLS Controls

1

564731R1

TRUNNION

upper rear control rod

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

2

935022R1

SPACER, upper rear control rod

1шт.

3

VC682

VALVE SPRING

SPRING, upper rear control rod

1шт.

4

152384C1

ROD, cyl beater clutch control rear

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

3шт.

5

152385C1

PIN, separator drive clutch pivot

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

4шт.

6

152387C91

LEVER ASSY, separator clutch control pivot

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

2шт.

7

152386C11

SUPPORT ASSY, separator clutch control, Includes ref no 8

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach.

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

8

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

separator clutch control arm

2шт.

9

152390C91

LEVER ASSY, cyl beater drive idler

1шт.

10

606546R1

JAM NUT

5/8-11 C-Z hex. jam

1шт.

11

610598R1

SPRING, cyl beater drive idler lever

1шт.

12

152578C1

ARM, feeder drive

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21909R1

PIN, 5/16 x 1-3/4 C-Z std-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

152648C1

CHANNEL, feeder pivot control

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach.

3шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

21556R1

SCREW

3/8 x 1 C-Z slt-pan-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

14

152649C91

SUPPORT ASSY, feeder control shaft

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

15

152653C91

ARM ASSY, feeder control

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

22933R1

PIN, 1/2 x 1-5/16 C-Z rod end

2шт.

16

152657C91

LEVER ASSY, feeder control

1шт.

17

152660C92

ROD ASSY, feeder clutch

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

2шт.

18

152662C1

ARM, feeder tightener bolt

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

19

168880C1

ROD, tightener

1шт.

20

936797R91

CLEVIS ASSY, feeder control

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 hex. jam

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22900R1

HEADED PIN

PIN, 3/8 x 1-1/4 C-Z std hd

1шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

2шт.

21

166462C91

LEVER ASSY, feeder control pivot, Includes ref no 22

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

559317R1

BUSHING,25.55mm ID x 28.6mm OD x 38.1mm L

feeder control arm hub upper

1шт.

23

938885R1

GRIP

control lever

1шт.

24

152667C2

LEVER ASSY, separator clutch control, Includes ref no 25

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z whiz lock

2шт.

25

938847R91

BEARING ASSY, clutch control lever

1шт.

26

152670C91

ARM ASSY, separator clutch control, Serial no, Serial Range: 501-2297

1шт.

26

168431C1

ARM ASSY, separator clutch control, Serial no 2298 and above

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

22933R1

PIN, 1/2 x 1-5/16 C-Z rod end

1шт.

27

567987R1

SPACER,10.3mm ID x 15.88mm OD x 17.5mm L

feeder tightener bolt

1шт.

28

938814R91

BEARING

ASSY, feeder pivot control

2шт.

29

152744C91

BRACKET ASSY, feeder clutch idler

1шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga

3шт.

30

152746C91

SUPPORT ASSY, feeder pivot support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

31

228

SPRING

feeder clutch throw-out

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

32

153517C92

ANGLE ASSY, feeder pivot arm

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach.

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

33

153645C91

SUPPORT ASSY, feeder belt guide

1шт.

34

156333C1

SUPPORT, separator control bar

1шт.

35

159548C1

BRACE, pivot arm angle

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

2шт.

36

166463C1

BAR, feeder pivot lever

1шт.

37

168600C91

HUB ASSY, separator clutch control lever, Includes ref no 25

1шт.

38

168881C1

TURNBUCKLE, clutch tightener bolt

1шт.

39

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 ptf str lub

2шт.
