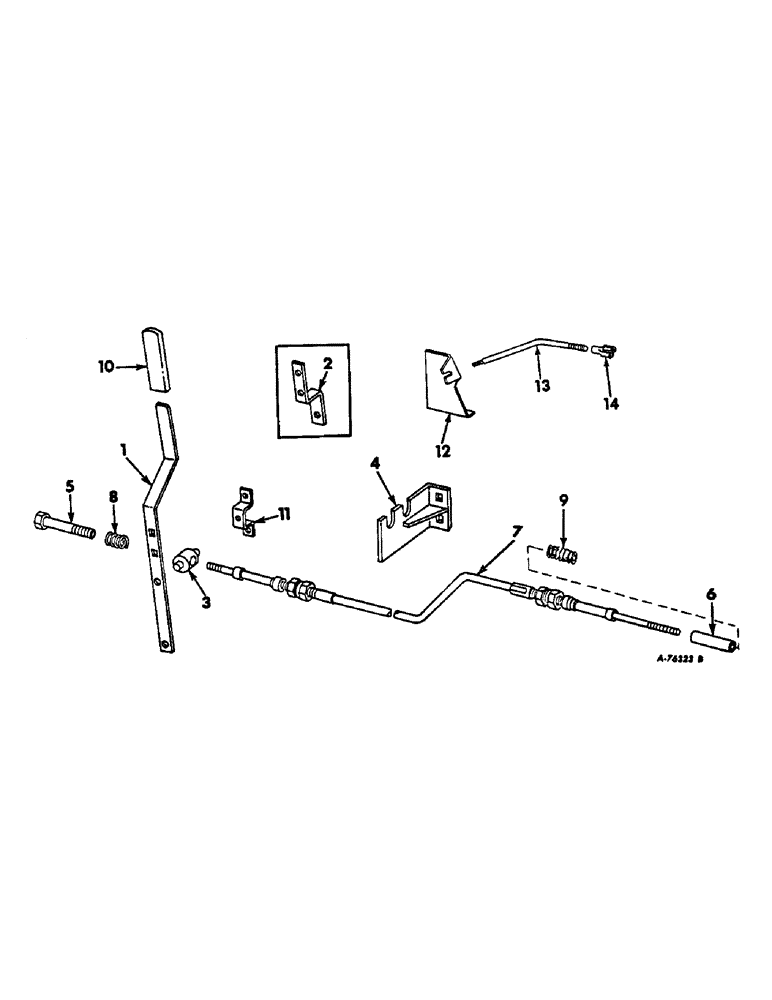

Запчасти Case IH 315 (H-09) - CONTROLS, THROTTLE CONTROL Controls
№
Артикул
Название
Примечание
Количество
1
152794C1
LEVER, throttle control, Serial no 700 and below
1шт.
1
163575C1
LEVER, throttle control, Serial no 701 and above
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
2шт.
20736R1
BOLT, 3/8 x 2 C-Z dld hex-hd mach.
1шт.
120376
NUT,5/16"-18, G5
2шт.
425-126
SLOTTED NUT,3/8"-16, G5
NUT, 3/8 C-Z slt hex.
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
469668R1
WASHER
13/32 x 3/4 x 16 ga C-Z
1шт.
2
152795C1
BRACKET, throttle control lever, Serial no 700 and below
1шт.
3
152796C1
PIVOT, throttle control
1шт.
4
153511C91
BRACKET ASSY, throttle control front
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
5
152970C1
BOLT, governor control cable front, Serial no 700 and below
1шт.
5
163577C1
BOLT, governor control cable front, Serial no 701 and above
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
178373R1
WASHER
17/32 x 1 x 16 ga C-Z
1шт.
6
152971C1
COUPLING, governor control cable rear
1шт.
7
152968C91
CABLE ASSY, throttle
1шт.
120367
NUT,Hex, 1/4" - 28, Gr 5
1/4-28 C-Z hex
1шт.
8
353213R2
SPRING
throttle control cable, Serial no 700 and below
1шт.
8
514726R2
SPRING, throttle control cable, Serial no 701 and above
1шт.
9
611420R1
SPRING
throttle control pressure
1шт.
10
153381C1
GRIP, throttle lever
1шт.
11
163576C1
BRACE, throttle control lever, Serial no 701 and above
1шт.
12
165801C1
CLAMP
BRACKET, throttle, diesel engine
1шт.
13
165800C1
LINK, throttle control, diesel engine
1шт.
124920
JAM NUT,Jam, 5/16"-24, G5
5/16-20 C-Z hex jam
1шт.
14
144242
CLEVIS
5/16-24 x 2-1/4 C-Z rod end, diesel engine
1шт.
432-610
COTTER PIN,3/32" x 5/8"
3/32" x 5/8"
1шт.
427-5094
CLEVIS PIN,7.92mm OD x 23.88mm L
PIN, 5/16 x 31/32 C-Z rod end
1шт.
Выбрано товаров: 32
