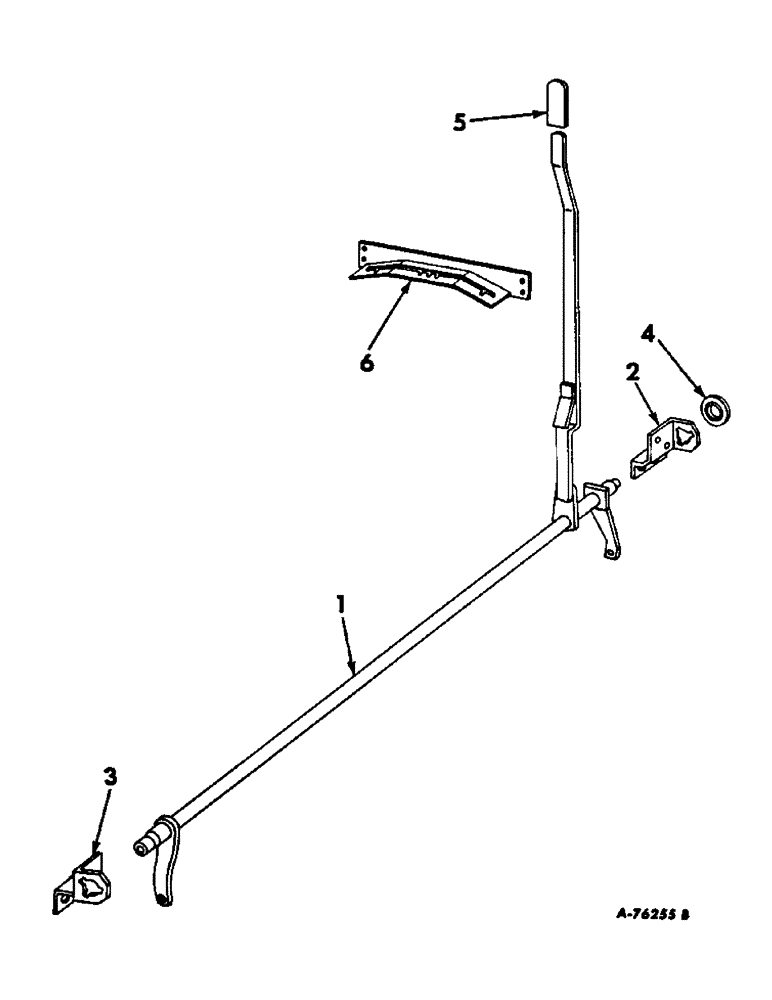

Запчасти Case IH 315 (H-07) - CONTROLS, CYLINDER CONTROL LEVER Controls

1

152590C91

LEVER ASSY, cyl control, Serial no 700 and below

1шт.

1

163632C92

LEVER ASSY, cylinder control, Serial no 701 and above

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

2

163634C91

BRACKET ASSY, cyl adj support LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap.

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

163635C91

BRACKET ASSY, cylinder adjusting support RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

18797R1

BOLT

7/16 x 1-3/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

120376

NUT,5/16"-18, G5

WASHER, 3/8 C-Z med lock

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 11 ga

1шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

1шт.

4

152619C91

BEARING ASSY, cylinder adjusting shaft

1шт.

5

938885R1

GRIP

HANDLE, cylinder control lever

1шт.

6

152602C91

SECTOR ASSY, cylinder control

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
