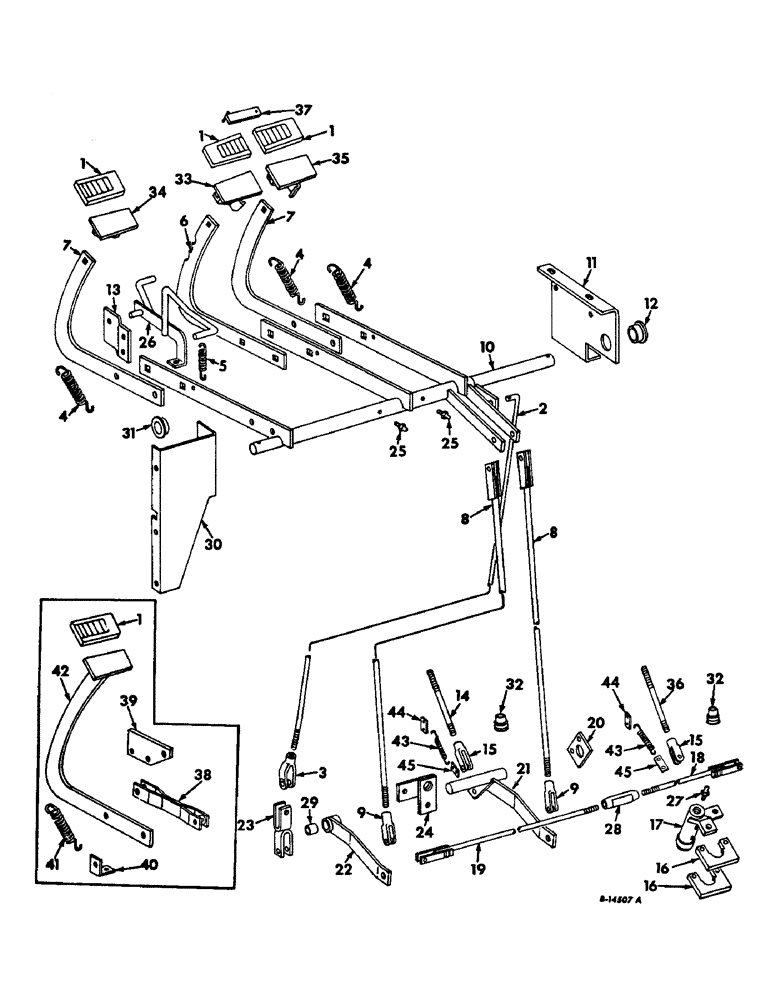

Запчасти Case IH 315 (H-04) - CONTROLS, BRAKE, CLUTCH AND FOOT-N-INCH CONTROLS, SERIAL NO. 701 AND ABOVE Controls

1

863426R1

PAD

clutch and brake pedal

3шт.

2

152312C1

ROD, clutch, belt drive transmission

1шт.

120369

NUT,3/8"-24, G5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

3

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8, belt drive transmission

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

4

228

SPRING

lever return, 3 used belt drive transmission, 2 used hydrostatic ground drive

3шт.

5

37AC

SPRING

brake lock return

1шт.

6

163531C1

LEVER, LH brake pedal

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

7

163530C1

LEVER, 2 used clutch and RH brake pedal for belt drive transmission, 1 used RH brake pedal for hydrostatic ground drive

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

8

152316C91

ROD ASSY, brake upper

2шт.

NLS

NO LONGER SERVICED

7/16-20 C-Z hex

2шт.

121224

SUPPORT

3/32" x 1"

2шт.

138078

PIN, 3/8 x 1-3/32 C-Z rod end

2шт.

9

117825

CLEVIS, 7/16-20 x 2-7/8 adj rod end

2шт.

121224

SUPPORT

3/32" x 1"

2шт.

138085

AXLE PIN,7/16" x 1.190"

PIN, 7/16 x 1-15/16 C-Z rod end

2шт.

10

152323C91

ROCKSHAFT ASSY, brake

1шт.

20328

PIN, 3/16 x 1-1/2 C-Z cot

2шт.

20340

PIN, 1/4 x 1-1/2 C-Z cot

3шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

2шт.

11

152320C11

SUPPORT ASSY, clutch and brake rockshaft, Includes ref no. 12

1шт.

172487

SCREW,Hex, 3/8" - 16 x 1"

BOLT, 3/8 x 1 znp hex-hd tapping

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

606936R1

PIVOT ASSY.

BUSHING, rockshaft pivot

1шт.

13

152355C1

BRACE, brake locking

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

617364R1

ROD, brake lower

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

15

357043R1

CLEVIS,3/8" - 24

brake lower rod

2шт.

121224

SUPPORT

3/32" x 1"

2шт.

20289R1

PIN, 7/16 x 1-17/32 C-Z rod end

2шт.

16

614276R1

PLATE, brake linkage locking

2шт.

18459R1

BOLT, 3/8 x 1-1/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

17

163691C91

PIVOT ASSY, RH brake

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

936870R91

CLEVIS ASSY, right brake locking

1шт.

121224

SUPPORT

3/32" x 1"

1шт.

138078

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

19

936868R91

CLEVIS ASSY, right brake LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

121224

SUPPORT

3/32" x 1"

1шт.

138078

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

20

614275R1

BAR, brake rockshaft support

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21

606940R92

LEVER ASSY, RH brake

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

121224

SUPPORT

3/32" x 1"

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

23066R1

CLEVIS PIN,3/8" x 1 7/16"

PIN, 3/8 x 1-7/16 C-Z rod end

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

606942R22

ARM ASSY, LH brake lower, Includes ref no 29

1шт.

23

936864R91

CLEVIS ASSY, RH brake

1шт.

121224

SUPPORT

3/32" x 1"

2шт.

23066R1

CLEVIS PIN,3/8" x 1 7/16"

PIN, 3/8 x 1-7/16 C-Z rod end

2шт.

24

936866R91

LEVER ASSY, lower

1шт.

25

219-28

LUBE NIPPLE,5/16" - 32

FITTING, 5/16-32NF str lub

2шт.

26

152318C91

LEVER ASSY, brake locking

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28PTF 90 deg angle lub

2шт.

28

M383D

TURNBUCKLE

connecting rod

1шт.

29

568615R2

BEARING

BUSHING, brake lower arm hub

1шт.

30

155610C11

SECTION ASSY, LH brake shaft support, Includes ref no 31, For use w/14.9-26, 16.9-26 and 18.4-26 main wheel tires

1шт.

30

155611C11

SECTION ASSY, LH brake shaft support, Includes ref no 31, For use w/23.1-26 main wheel tires standard for rice, 14.9-26, 16.9-26, 18.4-26 main wheel tires and operators cab

1шт.

31

606936R1

PIVOT ASSY.

BUSHING, support

1шт.

32

357044R1

INSULATOR

BOOT, brake housing

2шт.

33

163426R1

PEDAL LH BRAKE

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

34

163425C1

PEDAL

clutch, belt drive transmission

1шт.

35

163427C1

PEDAL

RH brake

1шт.

36

163688C1

ROD, brake lower RH

1шт.

37

614251R11

BAR

LOCK ASSY, brake pedal

1шт.

19938R1

PIN,1/8" x 7/8", Coiled

1шт.

38

164404C91

YOKE ASSY, foot-n-inch, hydrostatic ground drive

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

39

164531C1

SUPPORT, foot-n-inch valve control, hydrostatic ground drive

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

40

164597C1

ANGLE, foot-n-inch control pedal return spring, hydrostatic ground drive

1шт.

41

610598R1

SPRING, foot-n-inch control pedal, hydrostatic ground drive

1шт.

42

152315C91

LEVER ASSY, foot-n-inch control pedal, hydrostatic ground drive

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 znd sq-nk crg

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

43

165

SPRING

brake return

1шт.

44

634109R1

STRIP, brake arm spring front, Serial no. 2298 and above

1шт.

45

168376C1

CLIP, spring rear, Serial no. 2298 and above

1шт.
