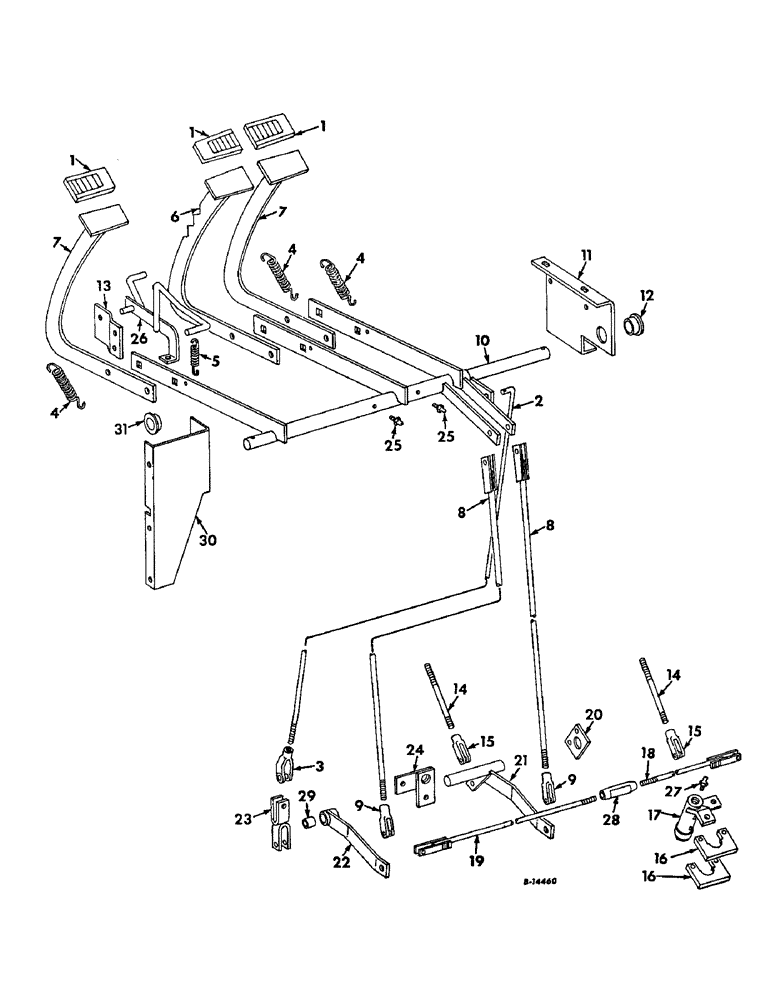

Запчасти Case IH 315 (H-02) - CONTROLS, BRAKE AND CLUTCH CONTROLS, SERIAL NO. 700 AND BELOW Controls

1

863426R1

PAD

clutch and brake pedal, 3 used belt drive transmission, 2 used hydrostatic ground drive

3шт.

2

152312C1

ROD, clutch, belt drive transmission

1шт.

120369

NUT,3/8"-24, G5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

3

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8, belt drive transmission

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

4

228

SPRING

lever return, 3 used belt drive transmission, 2 used hydrostatic ground drive

3шт.

5

37AC

SPRING

brake lock return

1шт.

6

152313C91

LEVER ASSY, left brake pedal

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach.

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

7

152315C91

LEVER ASSY, clutch & RH brake pedals, 2 used belt drive transmission, 1 used hydrostatic ground drive

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach.

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

8

152316C91

ROD ASSY, brake upper

2шт.

271506

DISC

7/16-20 C-Z hex.

2шт.

121224

SUPPORT

3/32" x 1"

2шт.

138078

PIN, 3/8 x 1-3/32 C-Z rod end

2шт.

9

117825

CLEVIS, 7/16-20 x 2-7/8 adj rod end

2шт.

121224

SUPPORT

3/32" x 1"

2шт.

138085

AXLE PIN,7/16" x 1.190"

PIN, 7/16 x 1-15/16 C-Z rod end

2шт.

10

152323C91

ROCKSHAFT ASSY, brake

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

591713R1

WASHER, 1-1/32 x 1-1/2 x 16 ga C-Z

2шт.

11

152320C11

SUPPORT ASSY, clutch & brake rockshaft, Includes ref no 12

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

606936R1

PIVOT ASSY.

BUSHING, rockshaft pivot

1шт.

13

152355C1

BRACE, brake locking

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach.

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

617364R1

ROD, brake lower

2шт.

425-117

NUT,7/16"-20, G5

7/16-20NF C-Z hex.

2шт.

15

357043R1

CLEVIS,3/8" - 24

brake lower rod

2шт.

121224

SUPPORT

3/32" x 1"

1шт.

138085

AXLE PIN,7/16" x 1.190"

PIN, 7/16 x 1-15/64 C-Z rod end

2шт.

16

614276R1

PLATE, brake linkage locking

2шт.

18459R1

BOLT, 3/8 x 1-1/4 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

17

936872R91

LEVER ASSY, lower RH brake

1шт.

18

936870R91

ROD ASSY, right brake RH

1шт.

121224

SUPPORT

3/32" x 1"

1шт.

138078

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

19

936868R91

ROD ASSY, right brake LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

121224

SUPPORT

3/32" x 1"

1шт.

138078

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

20

614275R1

BAR, brake rockshaft support

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach.

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21

606940R92

LEVER ASSY, RH brake

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

121224

SUPPORT

3/32" x 1"

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

23066R1

CLEVIS PIN,3/8" x 1 7/16"

PIN, 3/8 x 1-7/16 C-Z rod end

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

606942R22

ARM ASSY, LH brake lower, Includes ref no 29

1шт.

23

936864R91

CLEVIS ASSY, RH brake

1шт.

121224

SUPPORT

3/32" x 1"

2шт.

23066R1

CLEVIS PIN,3/8" x 1 7/16"

PIN, 3/8x 1-7/16 C-Z rod end

2шт.

24

936866R91

LEVER ASSY, lower

1шт.

25

219-28

LUBE NIPPLE,5/16" - 32

FITTING, 5/16-32NF str lub

2шт.

26

152318C91

LEVER ASSY, brake locking

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

27

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90 deg angle lub

2шт.

28

H383D

TURNBUCKLE, connecting rod

1шт.

29

568615R2

BEARING

BUSHING, brake lower arm hub

1шт.

30

155610C11

SECTION ASSY, LH brake shaft support, For use w/13-26 or 14-26 tires

1шт.

30

155611C11

SECTION ASSY, LH brake shaft support, For use w/18.26 tires standard for rice and 13.26, 14.26 or 15.26 tires and operators cab attachment, Includes ref no 31

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach.

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

31

606936R1

PIVOT ASSY.

BUSHING, support

1шт.
