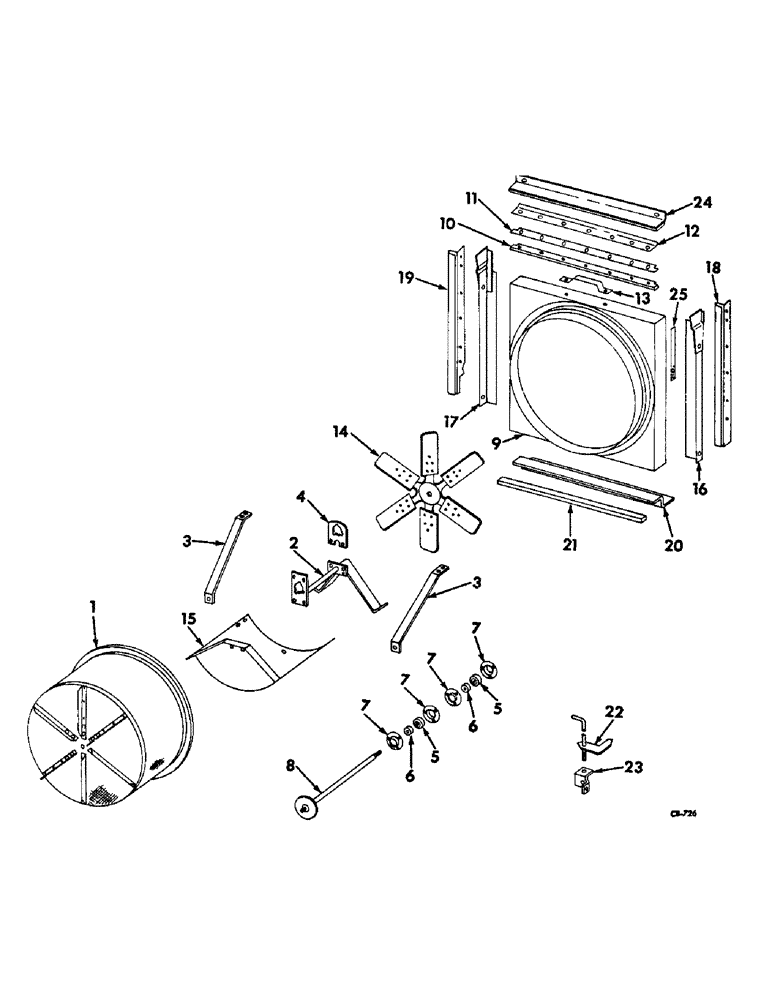

Запчасти Case IH 315 (A-08) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR ROTARY AIR SCREEN, DIESEL ENGINE Chassis, Radiator & Sheet Metal
№
Артикул
Название
Примечание
Количество
1
159702C91
SCREEN
ASSY, radiator rotary fan
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
12шт.
21352R1
RIVET,Tr Hd, 3/16" x .281", Alum.
3/16 x 9/32 truss-hd semi tub
18шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt-truss hd whiz lock
12шт.
2
152806C91
SUPPORT ASSY, radiator screen bearing
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
2шт.
106883
RIVET,Truss Hd, 3/16" x 3/8"
4шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss hd whiz lock
2шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga C-Z
2шт.
3
154885C1
BRACE
radiator screen bearing support
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
2шт.
106883
RIVET,Truss Hd, 3/16" x 3/8"
4шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss hd whiz lock
2шт.
4
153570C1
BRACKET
radiator screen bearing support
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
2шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss hd whiz lock
2шт.
5
468390R91
BEARING, BALL,0.6255" ID x 40 mm OD x 0.75"
BEARING ASSY, ball
2шт.
6
468391R11
COLLAR
W/SET SCREW, locking
2шт.
7
661147R1
FLANGED BEARING
rotary sieve bearing
4шт.
12653R1
BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2
BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2
6шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
6шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
6шт.
8
159703C91
ROD
ASSY, radiator rotary fan
1шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
2шт.
93-41039
LOCK WASHER,Ext Tooth, 3/8"
WASHER, 3/8 C-Z med lock
2шт.
619856R1
WASHER
13/32 x 1 x 16 ga C-Z
1шт.
158716R1
WASHER, 21/32 x 2 x 5/16
1шт.
9
153664C91
SHROUD ASSY, radiator rotary screen
1шт.
18626R1
CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT, 1/4 x 1/2 C-Z sq-nk crg
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
10
154029C1
STRIP, rotary radiator seal
1шт.
18654R1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
1/4 x 3/4 C-Z hex-hd mach
7шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
7шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
7шт.
11
154028C1
SEAL, rotary radiator seal
1шт.
12
318106R1
SEAL, sta-form
1шт.
13
614920R1
HANDLE, shroud
1шт.
18626R1
CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT, 1/4 x 1/2 C-Z sq-nk crg
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
14
158710C91
BLADE ASSY, 6 fan
1шт.
15
152909C91
DEFLECTOR ASSY, radiator screen
1шт.
16
153798C91
ANGLE ASSY, radiator screen slide
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd mach
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
17
153799C91
ANGLE ASSY, radiator screen slide support RH
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd mach
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
18
153656C1
SLIDE, radiator screen LH
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd mach
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
19
153657C1
SLIDE, radiator screen RH
1шт.
20
153658C11
REINFORCEMENT W/SEAL, radiator screen support, Includes ref no 21
1шт.
21
154277C1
SEAL, sponge rubber
1шт.
22
154139C91
LEVER
ASSY, rotary fan support
1шт.
425-145
JAM NUT,Jam, 5/16"-18, G5
5/16 C-Z hex jam
2шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga C-Z
1шт.
23
154136C1
ANGLE, rotary fan support
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd mach
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
24
161263C11
ANGLE ASSY, radiator top seal, Includes ref no. 12
1шт.
25
461678R1
SEAL
TAPE
2шт.
Выбрано товаров: 68
