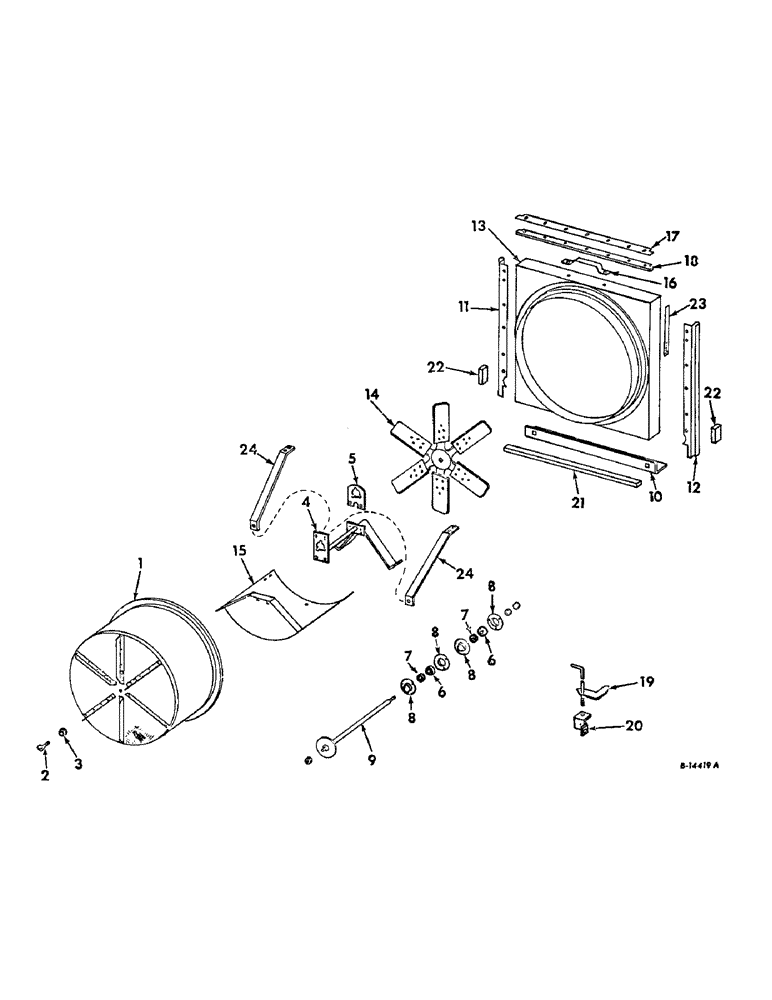

Запчасти Case IH 315 (A-06) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR ROTARY AIR SCREEN, GASOLINE ENGINE Chassis, Radiator & Sheet Metal

1

159702C91

SCREEN

SIEVE ASSY, radiator rotating

1шт.

21352R1

RIVET,Tr Hd, 3/16" x .281", Alum.

3/16 x 9/32 truss-hd semi-tub

18шт.

2

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss hd

12шт.

3

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

12шт.

4

152806C91

SUPPORT ASSY, radiator screen brg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

4шт.

432227R1

SCREW, 5/16 x 3/4 C-Z slt-truss-hd whiz lock

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

5

153570C1

BRACKET

radiator screen brg support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd whiz lock

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

6

468390R91

BEARING, BALL,0.6255" ID x 40 mm OD x 0.75"

BEARING ASSY, radiator rotating sieve

2шт.

7

468391R11

COLLAR

W/SET SCREW LKG

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

2шт.

8

661147R1

FLANGED BEARING

rotating sieve brg

4шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

9

159703C91

ROD

ASSY, radiator rotating sieve

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

3шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 C-Z int-tooth lock

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga CZ

1шт.

158716C1

WASHER

21/32 x 2 x 5/16 thick

1шт.

10

152811C1

ANGLE, rotary radiator support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

152812C1

GUIDE, radiator support left

1шт.

362662R1

NUT, 5/16-24 speed grip

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

12

152813C1

GUIDE, radiator support right

1шт.

362662R1

NUT, 5/16-24 speed grip

5шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16-24 x 3/4 C-Z hex-hd cap

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

13

152815C91

SHROUD ASSY, radiator rotating screen

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

158710C91

BLADE ASSY, fan

1шт.

15

152909C91

DEFLECTOR ASSY, radiator screen

1шт.

16

614920R1

HANDLE, shroud

1шт.

17

154029C1

STRIP, rotating radiator seal

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

7шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7+шт.

18

154028C1

SEAL, rotating radiator seal

1шт.

19

154125C91

LEVER ASSY, rotating fan support

1шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex. jam

2шт.

20

154129C1

BRACKET, rotating fan support

1шт.

21

388013R1

SEAL, sta-form

1шт.

22

159541C1

SEAL, radiator air screen guide bottom

2шт.

23

461678R1

SEAL

TAPE

5шт.

24

154885C1

BRACE

radiator screen brg support

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd whiz lock

2шт.
