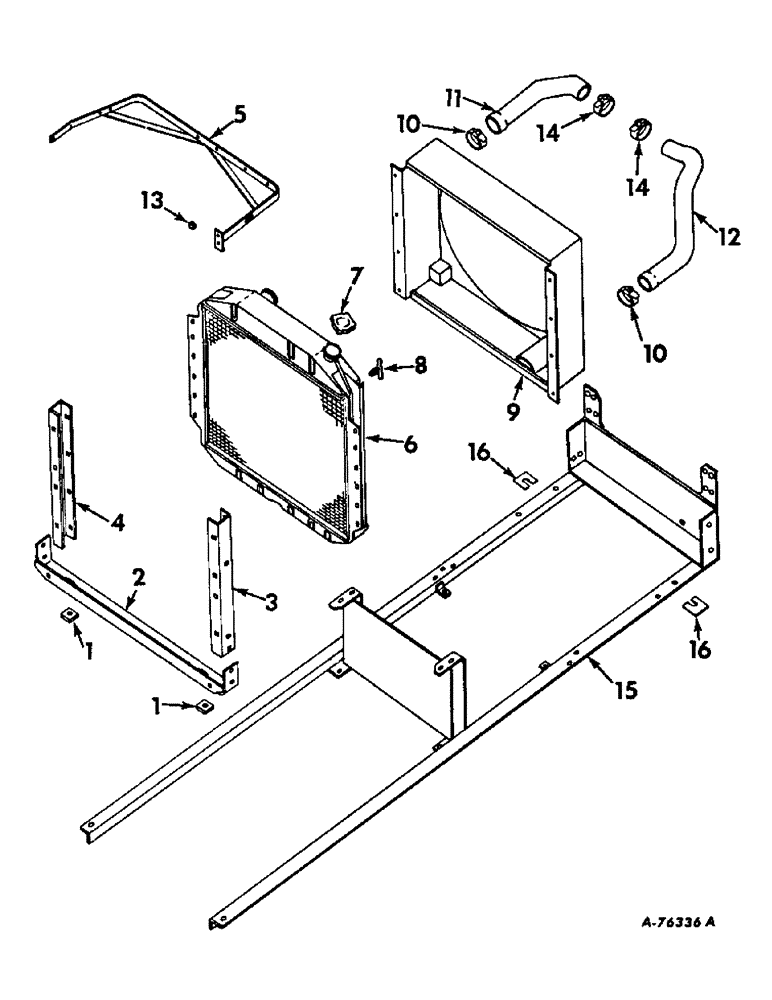

Запчасти Case IH 315 (A-02) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR, HOSES AND ENGINE SUPPORT FRAME Chassis, Radiator & Sheet Metal

1

274716R1

PAD, radiator mounting

2шт.

2

396889R1

SUPPORT ASSY, radiator

1шт.

15055R1

BOLT, 7/16 x 1-3/4 sq-nk crg

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

4шт.

3

318284R2

CHANNEL, radiator chute and shroud LH

1шт.

111543R91

NUT, 3/8-24 speed grip

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, 3/8-24 x 1 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

318285R3

CHANNEL, radiator chute and shroud RH

1шт.

111543R91

NUT, 3/8-24 speed grip

4шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, 3/8-24 x 1 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

378047R11

BRACE ASSY, radiator

1шт.

110579R91

NUT

5/16-24 speed grip

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

400414R1

RADIATOR ASSY, will work for 393803R91

1шт.

110579R91

NUT

5/16-24 speed grip

8шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

8шт.

7

73047R91

CAP

radiator pressure

1шт.

8

144569

COCK, DRAIN

COCK, 1/4 drain, radiator drain

1шт.

9

530155R91

SHROUD W/PRODUCT GRAPHIC 2754445R1, will work for 396891R1

1шт.

110579R91

NUT

5/16-24 speed grip

8шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SCREW, 5/16-18 x 3/4 hex-hd cap

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

7шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

10

39219H

CLAMP

radiator hose

2шт.

11

379621R1

RADIATOR HOSE,2.00" ID, 2.25" ID x 12.38", SAE 20R4 CLASS R, GRADE 1A

Inlet elbow 2.00" ID, 2.25" ID x 12.38", SAE 20R4 CLASS R, GRADE 1A

1шт.

12

387941R1

RADIATOR HOSE,2.00" ID, 2.12" ID x 15.31", SAE 20R4, CLASS R, GRADE 1A

Outlet elbow 2.00" ID, 2.12" ID x 15.31", SAE 20R4, CLASS R, GRADE 1A

1шт.

13

557264R1

WASHER

11/32 x 3/4 x 11 ga

2шт.

13

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z, to be used together, will work for 469925R1

1шт.

14

39205H

CLAMP

radiator hose

2шт.

15

152288C92

FRAME ASSY, engine support, gasoline engine

1шт.

15

165785C92

FRAME ASSY, engine support, diesel engine

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

271718

SPECIAL WASHER

SCREW, 5/8 x 1-3/8 C-Z hex-hd cap

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8 x 1-3/4 C-Z hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

615855R1

WASHER, 11/32 x 3/4 x 16 ga C-Z

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

4шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

3шт.

21375R1

WASHER

17/32 x 1-1/4 x 7 ga C-Z

4шт.

16

570012R1

STRIP, engine support frame shim, gasoline engine w/hydrostatic ground drive

6шт.
