(N-09[A]) - PARTS ACCESSORIES AND ATTACHMENTS, WINDSHIELD WASHER

Запчасти Case IH 315 (N-09[A]) - PARTS ACCESSORIES AND ATTACHMENTS, WINDSHIELD WASHER Accessories & Attachments

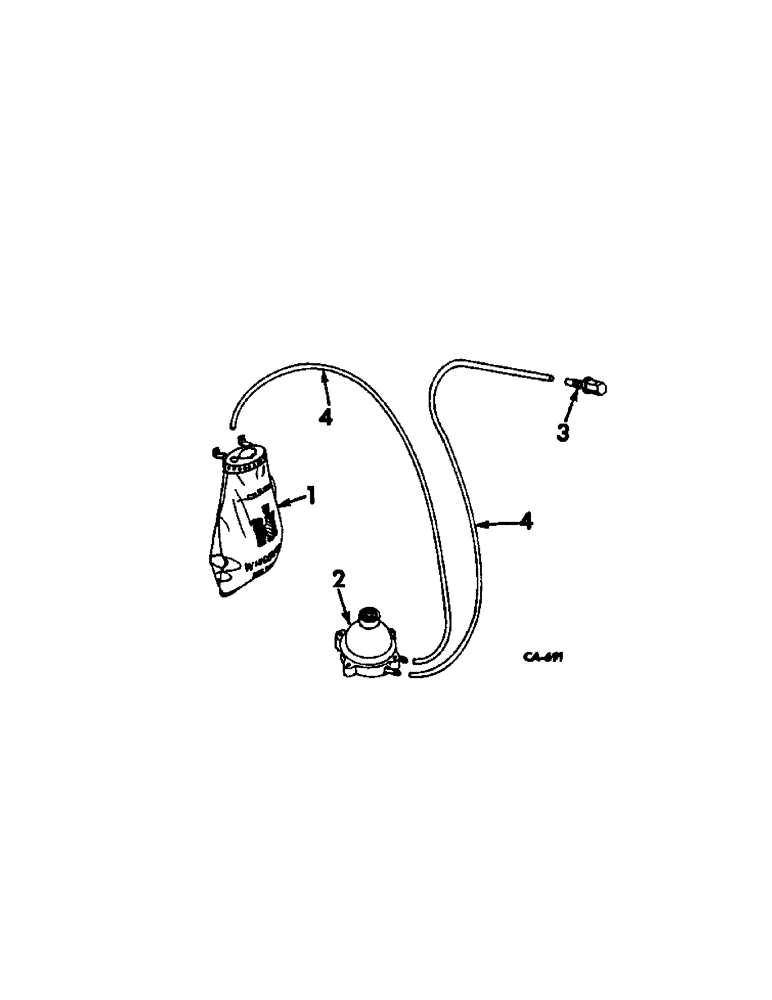

Схема запчастей Case IH 315 - (N-09[A]) - PARTS ACCESSORIES AND ATTACHMENTS, WINDSHIELD WASHER Accessories & Attachments
1
2
3
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

996835R91

KIT ASSY, windshield washer, Consists of the following

1шт.

1

996836R91

BAG ASSY, reservoir

1шт.

2

996837R91

DOME ASSY, pressure

1шт.

3

244000R1

NOZZLE

1шт.

4

HOSE, windshield washer, Use 12 ft 7/32 in. ID hose from 50 ft roll marked 995994R1

1шт.

Выбрано товаров: 0
