(N-08) - PARTS ACCESSORIES AND ATTACHMENTS, HEATER COMPONENTS

Запчасти Case IH 315 (N-08) - PARTS ACCESSORIES AND ATTACHMENTS, HEATER COMPONENTS Accessories & Attachments

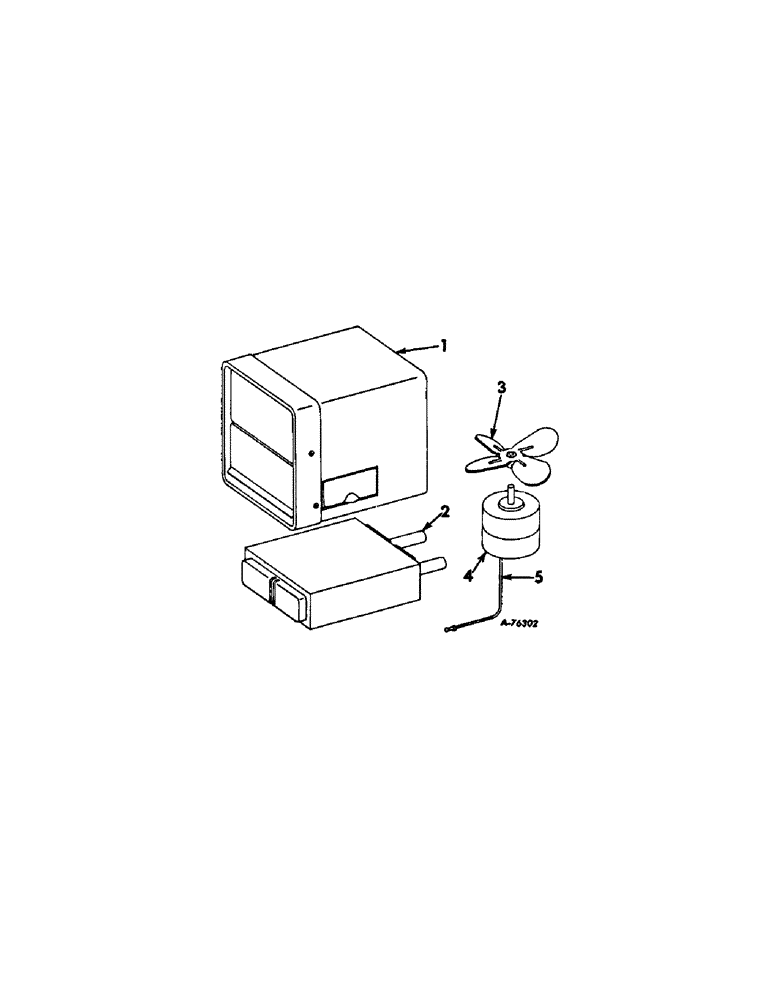

Схема запчастей Case IH 315 - (N-08) - PARTS ACCESSORIES AND ATTACHMENTS, HEATER COMPONENTS Accessories & Attachments
4
3
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

936197R91

HEATER ASSY, operators cab attach, Includes ref nos 1 thru 5

1шт.

2

936491R91

CORE

ASSY, heater

1шт.

3

936490R91

FAN

ASSY, 6-in diameter

1шт.

4

936489R91

MOTOR

ASSY

1шт.

5

46894H

WIRE CONNECTOR,14 - 16 SAE

TERMINAL, male tip

1шт.
