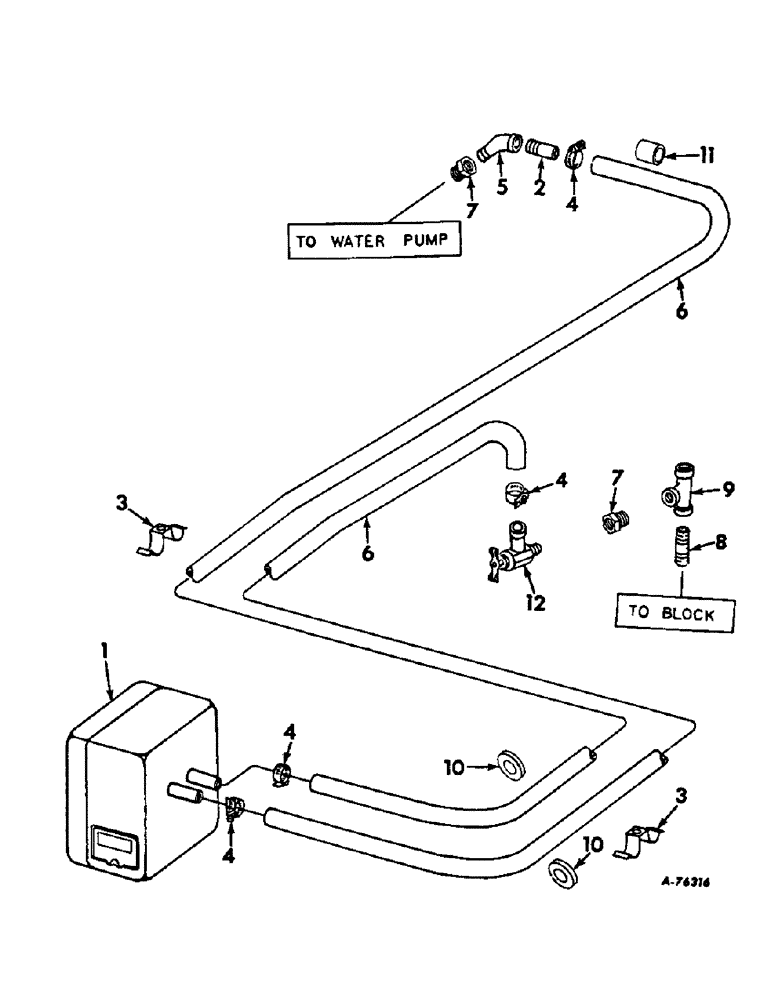

Запчасти Case IH 315 (N-07) - PARTS ACCESSORIES AND ATTACHMENTS, OPERATORS CAB HEATER Accessories & Attachments

1

936197R91

HEATER ASSY

1шт.

2

574631R1

FITTING

NIPPLE, heater hose

1шт.

3

574522R1

CLIP, heater hose

2шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 hex-hd mach

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

136661H

WASHER

17/64 x 1 x 16 ga

2шт.

4

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, heater hose

4шт.

5

120702

ELBOW,45 Degree, 3/8" NPT Street

street 45 deg

1шт.

6

634654R1

HOSE, heater

1шт.

7

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, reducing pipe 1/2 to 3/8

2шт.

8

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, 1/2 x 1-1/8 closed pipe

1шт.

9

138105

TEE,1/2" NPT, Fem

1/2 pipe

1шт.

10

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

rubber

2шт.

11

371108R1

SPACER,3/8" Pipe x .844"

alternator support bracket

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8 x 3-1/2 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

301803R91

VALVE

ASSY, shut off

1шт.
