(N-06) - PARTS ACCESSORIES AND ATTACHMENTS, OPERATORS CAB PRESSURIZER

Запчасти Case IH 315 (N-06) - PARTS ACCESSORIES AND ATTACHMENTS, OPERATORS CAB PRESSURIZER Accessories & Attachments

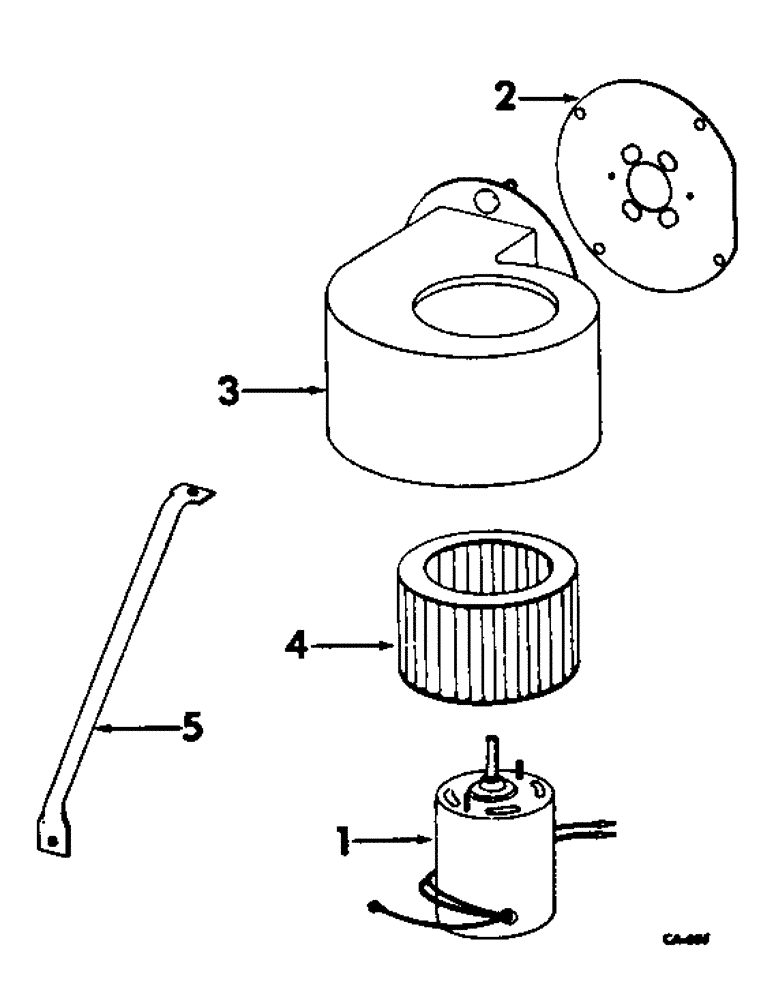

Схема запчастей Case IH 315 - (N-06) - PARTS ACCESSORIES AND ATTACHMENTS, OPERATORS CAB PRESSURIZER Accessories & Attachments
1
4
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

161197C91

PRESSURIZER ASSY 12-VOLT

1шт.

1

163478C91

MOTOR

ASSY, electric

1шт.

2

163479C1

PLATE, motor mounting

1шт.

3

163477C91

SCROLL ASSY

1шт.

4

167094C1

FAN

BLOWER

1шт.

5

168299C1

TUBE, blower support

1шт.
