(N-05) - PARTS ACCESSORIES AND ATTACHMENTS, CAB WINDOW GLASS DIMENSIONS

Запчасти Case IH 315 (N-05) - PARTS ACCESSORIES AND ATTACHMENTS, CAB WINDOW GLASS DIMENSIONS Accessories & Attachments

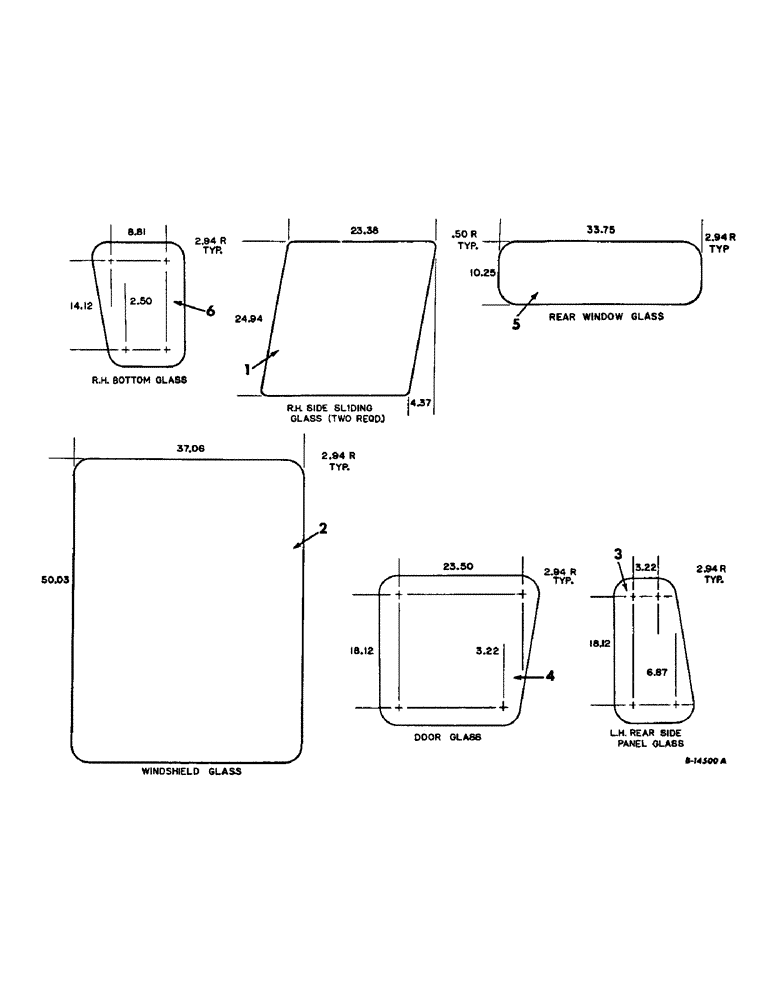

Схема запчастей Case IH 315 - (N-05) - PARTS ACCESSORIES AND ATTACHMENTS, CAB WINDOW GLASS DIMENSIONS Accessories & Attachments
4
6
2
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

164692C1

GLASS, sliding window

2шт.

2

164688C1

GLASS, windshield

1шт.

3

164690C1

GLASS, rear side

1шт.

4

164689C1

GLASS, door

1шт.

5

164693C1

GLASS, rear window

1шт.

6

164691C1

GLASS, RH bottom

1шт.
