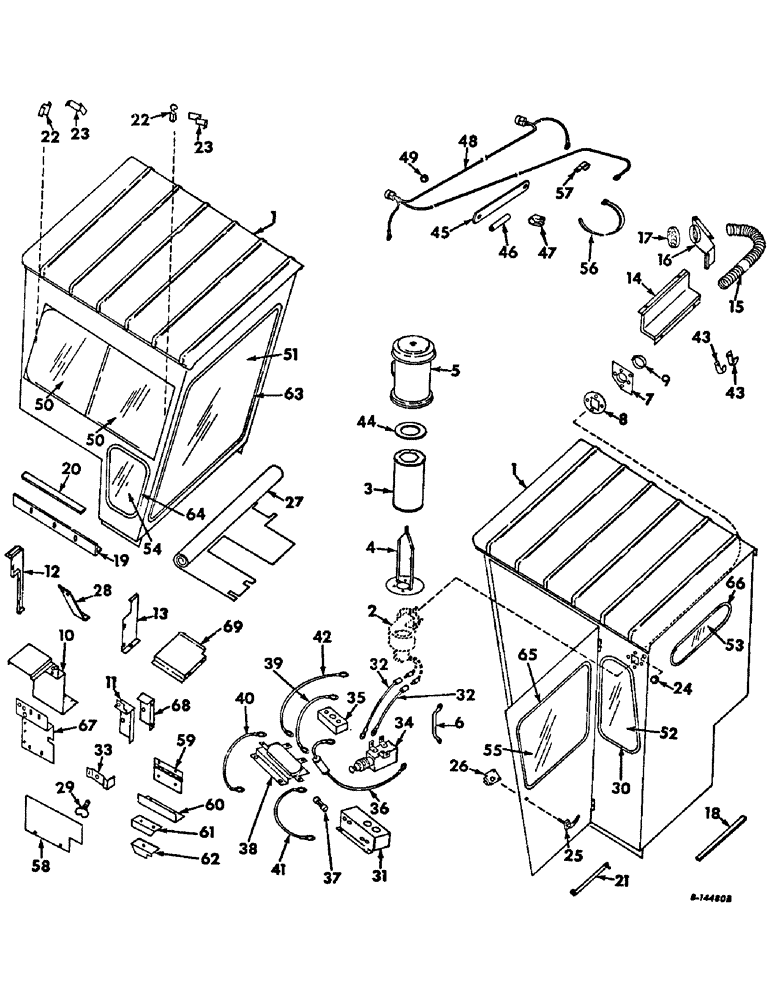

Запчасти Case IH 315 (N-02) - PARTS ACCESSORIES AND ATTACHMENTS, OPERATORS CAB Accessories & Attachments

1

159610C92

CAB ASSY, operators

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

18788R1

BOLT

3/8 x 3/4 C-Z hex-hd mach

5шт.

120376

NUT,5/16"-18, G5

3шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd tapping

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

2

PRESSURIZER ASSY 12-VOLT, Refer to pressurizer unit for listing

1шт.

3

161299C91

ELEMENT

FILTER, fan intake

1шт.

4

161152C91

ADAPTER ASSY, filter

1шт.

5

161151C91

COVER

ASSY, vertical filter

1шт.

126177

WING NUT

NUT, 1/4 C-Z wing

1шт.

WASHER, 1/4 x 3/4 x 1/8 rubber

1шт.

6

132637R1

HANDLE

grab

1шт.

120368

NUT,5/16"-24, G5

2шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z med lock

2шт.

7

161155C1

COLLAR, blower

1шт.

8

161158C1

SEAL, air pressure

1шт.

9

309693R91

HOSE CLAMP,#60, 3.31/4.25 Type F Worm

CLAMP, hose

1шт.

10

159611C91

PANEL ASSY, right side, Serial no, Serial Range: 501-2297

1шт.

11

159612C1

PANEL, side, Serial no, Serial Range: 501-2297

1шт.

12

159613C1

PANEL, rear side, Serial no, Serial Range: 501-2297

1шт.

12

168300C1

PANEL, rear side, Serial no 2298 and above

1шт.

13

159614C1

FILLER, rear side panel, Serial no, Serial Range: 501-2297

1шт.

120368

NUT,5/16"-24, G5

2шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z int-tooth lock

2шт.

14

161164C11

PLENUM ASSY, air

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

121637

LOCK WASHER

WASHER, 1/4 light lock

4шт.

15

161159C1

HOSE, pressure air inlet

1шт.

16

161153C91

BRACKET ASSY, air outlet

1шт.

17

161156C91

DEFLECTOR ASSY, vent

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

121637

LOCK WASHER

WASHER, 1/4 light lock

2шт.

18

161188C1

SEAL, mounting angle

1шт.

19

161191C1

ANGLE, right horizontal mounting

1шт.

20

161187C1

SEAL, right horizontal mounting

1шт.

21

161193C11

CHECK ASSY, door strap

1шт.

22

161190C1

HANDLE, window pull

2шт.

23

161189C1

LATCH, sliding window

2шт.

24

112734

GROMMET, rubber 3/8" ID x 11/16" x .062"

1шт.

25

393237R91

HANDLE

ASSY, door

1шт.

26

939444R91

LATCH ASSY, door

1шт.

27

154318C1

MAT, operators platform floor

1шт.

28

158725C1

BRACE, operators cab RH

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

29

159840C1

SCREW,Wing, 5/16" - 18 x 5/8"

thumb

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

30

170446C1

SEAL, glass moulding 67 in.

1шт.

30

170447

STRIP, filler 67 in.

1шт.

31

161195C1

SHIELD, heater and blower switch

1шт.

145189

SCREW, 10 x 3/8 C-Z slt-pan-hd tap

2шт.

32

CABLE ASSY, switch to blower, Use 92 in. of 14 ga wire from 100 ft roll marked 995055R1, one 54772R1 and one 46893H terminal

1шт.

33

565449R1

CLIP

door hold down

1шт.

34

154850C91

SWITCH

pressurizer blower

1шт.

35

937524R1

BLOCK, junction

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no 10-24 x 1 pan-hd slt

3шт.

36

155497R91

CABLE ASSY, Serial Range: block-switch

1шт.

37

432644

FUSE,20 Amp, Type SFE

20 amp 1-1/4 in long

1шт.

38

317922R91

RELAY

ASSY

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

39

CABLE ASSY, relay to block, Use 6-1/2 in. of 14 ga wire from 100 ft roll marked 995055R1 and two 54772R2 terminals

1шт.

40

CABLE ASSY, relay to ground, Use 6-1/2 in. of 14 ga wire from 100 ft roll marked 995055R1 and two 54772R2 terminals

1шт.

41

CABLE ASSY, relay to ignition, Use 45 in. of 16 ga wire from 100 ft roll marked 995056R1, one 54772R2 terminal and one 54781R2 terminal

1шт.

42

CABLE ASSY, relay to ammeter, Use 44 in. of 12 ga wire from 100 ft roll marked 995054R1, one 54772R2 terminal and one 54782R2 terminal

1шт.

43

362127R1

CLIP

wire

2шт.

44

161157C1

SEAL

filter

1шт.

45

574613R11

STRAP W/GROMMET, ladder rope

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

46

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

PIPE, headlight

1шт.

18790R1

BOLT

3/8 x 6-1/2 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

47

350920R1

CLAMP

headlight

1шт.

48

155927C92

CABLE ASSY, headlight

1шт.

49

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

1шт.

49

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

headlight wire

1шт.

50

GLASS, sliding window, For details see unit listed under cab window glass dimensions

1шт.

51

GLASS, windshield, For details see unit listed under cab window glass dimensions

1шт.

52

GLASS, rear side, For details see unit listed under cab window glass dimensions

1шт.

53

GLASS, rear window, For details see unit listed under cab window glass dimensions

1шт.

54

GLASS, RH bottom, For details see unit listed under cab window glass dimensions

1шт.

55

GLASS, door, For details see unit listed under cab window glass dimensions

1шт.

56

702093C1

CABLE TIE

CLAMP, headlight

1шт.

57

362127R1

CLIP

wire

1шт.

58

168301C1

EXTENSION, deck plate

1шт.

59

168302C1

HINGE AND HINGE EXTENSION ASSY

1шт.

60

168303C1

EXTENSION ASSY, bottom angle

1шт.

61

168304C1

EXTENSION ASSY, bottom rear

1шт.

62

168305C1

EXTENSION ASSY, bottom side

1шт.

63

170442C1

SEAL, glass moulding 172 in.

1шт.

63

170443C1

STRIP, filler 172 in.

1шт.

64

169558C1

SEAL, glass moulding 64 in.

1шт.

64

169559C1

STRIP, filler 64 in.

1шт.

65

170444C1

SEAL, glass moulding 102 in.

1шт.

65

170445C1

STRIP, filler 102 in.

1шт.

66

394454R1

SEAL, glass moulding 86 in.

1шт.

66

394458R1

STRIP, filler 86 in.

1шт.

67

168306C1

FILLER ASSY, side panel, Serial no 2298 and above

1шт.

68

168502C1

PANEL, side, Serial no 2298 and above

1шт.

69

168307C1

COVER, filler side panel, Serial no 2298 and above

1шт.
