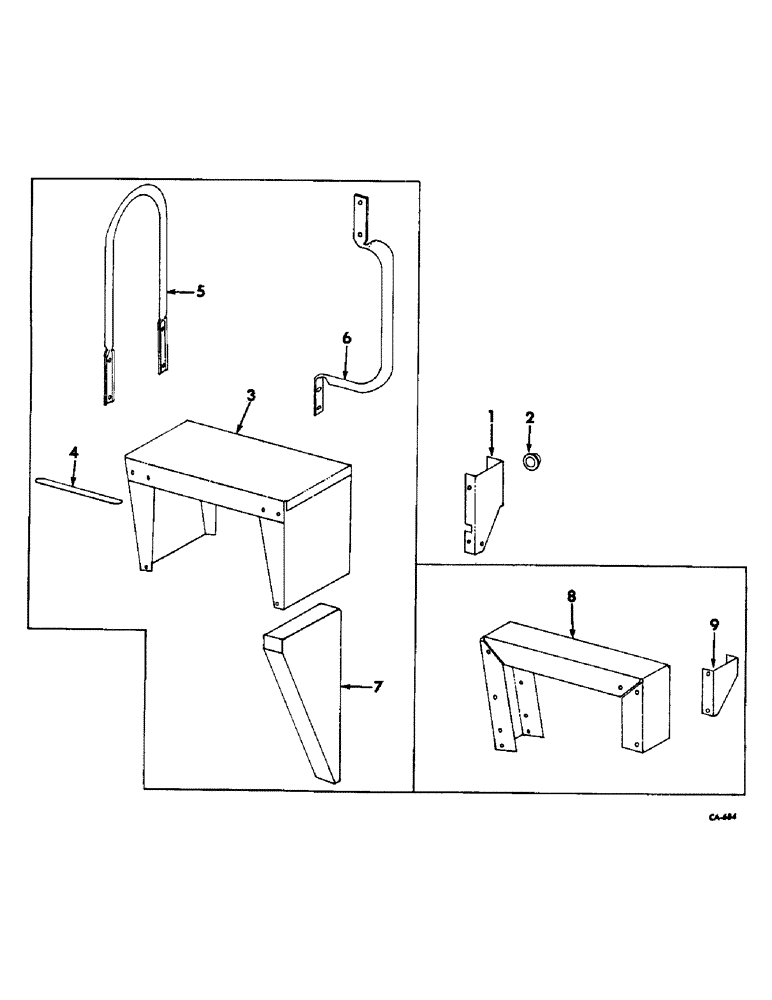

Запчасти Case IH 315 (M-04) - SEAT, OPERATORS PLATFORM AND MISC., OPERATORS PLATFORM EXTENSION (10) - OPERATORS PLATFORM

1

155611C11

SECTION ASSY, LH brake shaft support, Includes ref no 2

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

606936R1

PIVOT ASSY.

BUSHING, support

1шт.

3

154120C91

PLATFORM ASSY, operators, For use w/23.1-26 main wheel tires

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

4шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

155615C1

TREAD, deck extension, For use w/23.1-26 main wheel tires

1шт.

5

158705C1

RAIL, ladder extension hand, For use w/23.1-26 main wheel tires

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

159736C1

RAIL, ladder extension hand, For use w/23.1-26 main wheel tires, Used w/cab not main axle extension

1шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

163562C1

SHEET, operators platform fill, For use w/23.1-26 main wheel tires

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 C-Z hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

3/8 C-Z hex

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

8

158704C1

SPACER, operators platform, For use w/14.9-26, 16.9-26 or 18.4-26 main wheel tires

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9

164951C1

EXTENSION, operators platform, For use w/14.9-26, 16.9-26 or 18.4-26 main wheel tires and operators cab

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20893R1

WASHER

1-1/32 x 1 x 11 ga C-Z

2шт.
