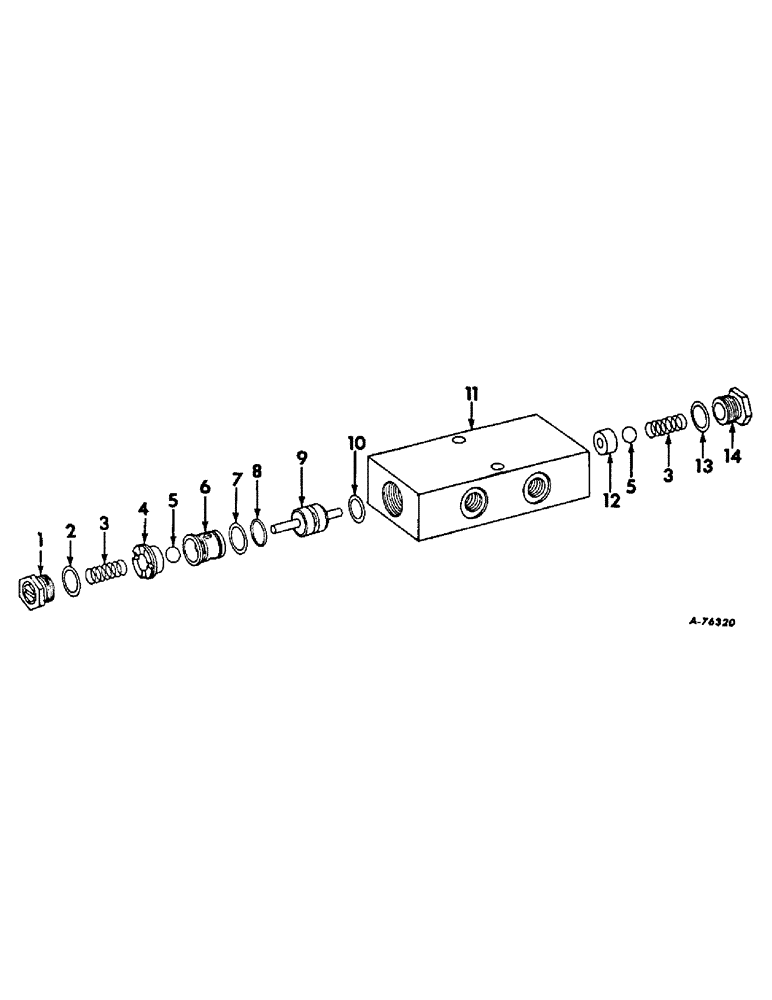

Запчасти Case IH 315 (F-41) - HYDRAULICS SYSTEM, STEERING HYDRAULIC CHECK VALVE (07) - HYDRAULIC SYSTEM

673293R92

VALVE

ASSY, steering lockout double acting

1шт.

1

385559R91

PLUG

AND VALVE ASSY

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64

1шт.

3

372649R1

SPRING

check valve

2шт.

4

374172R1

NUT

check valve ball retainer

1шт.

5

17016R1

BALL,1/2" Dia

2шт.

6

374087R11

RETAINER

ASSY, check valve ball

1шт.

7

574069R1

O-RING,0.750" ID x .062"

3/4 x 7/8 x 1/16

1шт.

8

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16

1шт.

9

374085R11

PISTON

ASSY, check valve actuator

1шт.

10

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

11

673481R11

VALVE

BLOCK ASSY, check valve, Includes ref no. 12

1шт.

12

391574R1

RETAINER, ball

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

14

374089R1

PLUG

check valve

1шт.
