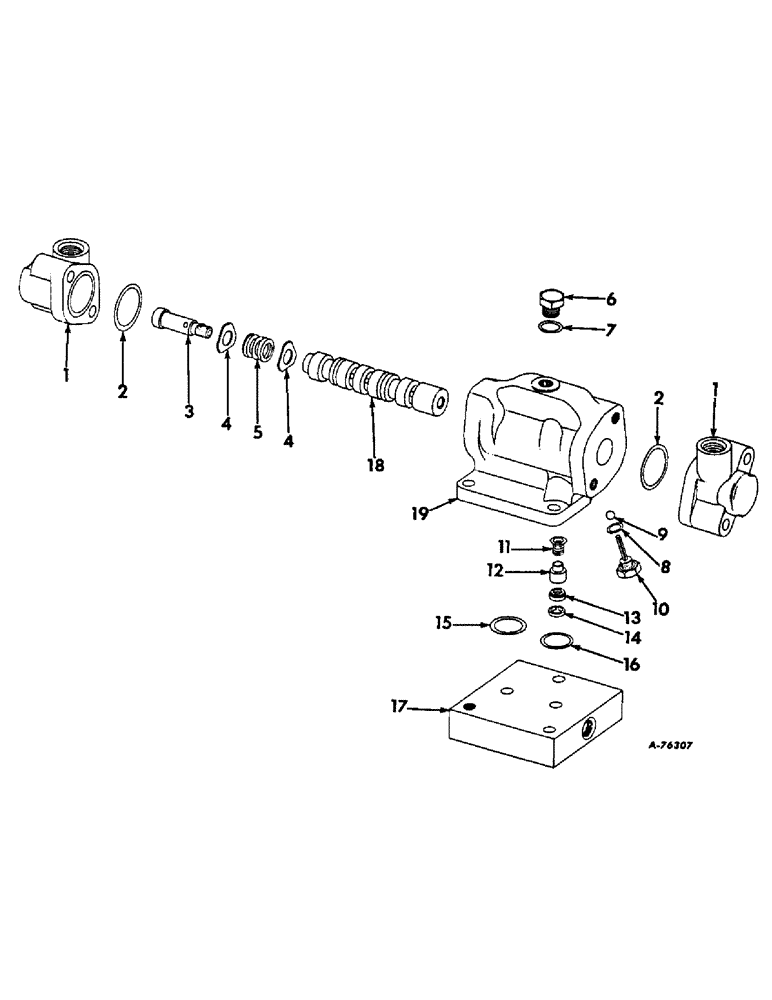

Запчасти Case IH 315 (F-40) - HYDRAULICS SYSTEM, STEERING VALVE (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
396726R91
LOCK VALVE
VALVE ASSY, steering, Includes ref nos. 1 through 14
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 C-Z hex-hd cap
1шт.
18781R1
BOLT,Hex, 3/8"-16 x 2", G2
3/8 x 2 C-Z hex-hd mach
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
1
379894R1
CAP
end
2шт.
180130
BOLT,Hex, 3/8" - 16 x 2", Gr 5
SCREW, 3/8 x 2 C-Z hex-hd cap
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
2
387088R1
SEALING RING,1.237" ID x 0.103" Width
SEAL, end cap
2шт.
3
379896R1
SCREW,3/8" - 24, Drilled, W/ Nylon Pellet
spring centering
1шт.
4
379897R1
WASHER
centering screw
2шт.
5
395754R1
SPRING
valve centering
1шт.
6
9410357
PLUG
o-ring boss
1шт.
7
369384R1
O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro
5-1, 90 Duro, .414" ID x .072" Thk, Boss plug
1шт.
8
379795R1
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
3-1, .301" ID x .064" Thk, Boss plug
1шт.
9
16008R1
BALL,1/4" Dia, Steel
1/4 diameter
1шт.
10
379901R91
PLUG
ASSY
1шт.
11
382125R1
SPRING
pressure check
1шт.
12
382126R1
NO LONGER SERVICED
VALVE, check
1шт.
13
379810R1
SEAL
ball seat
1шт.
14
382127R1
WASHER
SPACER, check valve
1шт.
15
362796R1
O-RING,0.924" ID x 0.103" Width
15/16 x 1-1/8 x 3/32
1шт.
16
369908R1
O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro
13/16 x 1 x 3/32
1шт.
17
633383R1
BLOCK, steering valve mounting
1шт.
18
SPOOL, Order valve assy 396726R91
1шт.
19
BODY, Order valve assy 396726R91
1шт.
379793R91
O-RING
SERVICE PACKAGE, Consists of
1шт.
379810R1
SEAL
ball seat
1шт.
379795R1
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
3-1, .301" ID x .064" Thk, Boss plug
1шт.
387088R1
SEALING RING,1.237" ID x 0.103" Width
SEAL, end cap
2шт.
369384R1
O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro
5-1, 90 Duro, .414" ID x .072" Thk, Boss plug
1шт.
Выбрано товаров: 31
