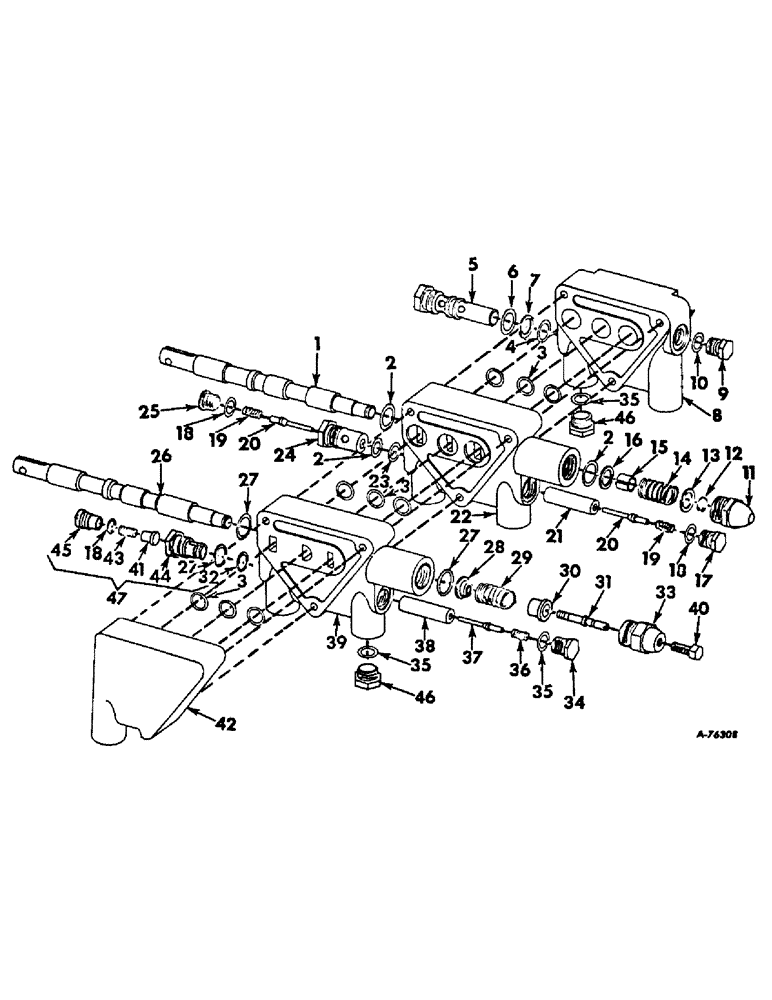

Запчасти Case IH 315 (F-36) - HYDRAULICS SYSTEM, PLATFORM LIFT VALVE, NOT HYDROSTATIC GROUND DRIVE (07) - HYDRAULIC SYSTEM

158378C92

VALVE ASSY, two spool

1шт.

1

SPOOL, Order 588348R91 valve assy

1шт.

2

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 9/16

3шт.

3

587579R1

O-RING

11/16 x 3/4 ID

9шт.

4

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3/32 x 5/8 ID

1шт.

5

167447C91

VALVE

ASSY, relief 1750-PSI, Includes ref nos. 4, 6 and 7

1шт.

6

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 9/16

1шт.

7

587585R1

WASHER

backup

1шт.

8

587569R1

PLATE, valve port

1шт.

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

SCREW, 5/16 x 4-3/4 cap

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9

588347R1

PLUG

1шт.

10

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

11

588346R91

CAP ASSY

1шт.

12

572998R1

SNAP RING

1шт.

13

557268R1

WASHER

1шт.

14

588353R1

SPRING

spool centering

1шт.

15

588354R1

SLEEVE, spool

1шт.

16

11002VA

WASHER

1шт.

17

588347R1

PLUG

1шт.

18

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

19

574789R1

SPRING

2шт.

20

588351R91

VALVE

POPPET ASSY

2шт.

21

588352R1

PLUNGER

lockout

1шт.

22

588344R91

VALVE ASSY, four-way, Includes ref nos. 1, 2, 11 thru 21, 23, 24 and 25

1шт.

23

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.

24

588349R1

SEAT

lockout

1шт.

25

391458R1

PLUG

slotted

1шт.

26

SPOOL, Order 159376C91 valve assy

1шт.

27

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 9/16

3шт.

28

937194R1

SPRING WASHER

spool spring

1шт.

29

588353R1

SPRING

spool centering

1шт.

30

937195R1

SPRING WASHER

spool spring

1шт.

31

937197R1

SCREW,1/4" - 20 x 2-5/16"

spool spring

1шт.

32

169240R1

O-RING

3/32 x 9/16

1шт.

33

937198R91

CAP

ASSY

1шт.

34

159801C1

PLUG

hex.

1шт.

35

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3шт.

36

159382C1

SPRING

lockout

1шт.

37

159380C91

VALVE

POPPET ASSY

1шт.

38

159379C1

PLUNGER

lockout

1шт.

39

159376C91

VALVE

ASSY, four way, Includes ref nos. 18, 26 thru 41, 43 thru 46

1шт.

40

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

41

387436R1

TAPPET

PLUNGER, check

1шт.

42

161143C1

PLATE, end

1шт.

43

387437R1

SPRING

check

1шт.

44

159381C1

PLUG, hex.

1шт.

45

PLUG, sltd, Not serviced separately order plug assy 159803C91

1шт.

46

9410359

PLUG

hex.

2шт.

47

159803C91

VALVE

PLUG ASSY, Includes ref nos. 18, 27, 32, 41, 43, 44 and 45

1шт.

159383C91

PACKAGE

KIT ASSY, seal repair, For 159376C91 valve, Consists of

1шт.

321956R1

GASKET

O-RING

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

310925R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

S

3шт.

159380C91

VALVE

POPPET

1шт.

161228C91

KIT ASSY, major seal repair, For use w/159378C92 valve assy, Consists of

1шт.

KIT ASSY, EA section repair

1шт.

KIT ASSY, AS section repair

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

S

2шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

352707R1

O-RINGS

3шт.

588351R1

POPPET ASSY

2шт.

KIT ASSY, between section repair

1шт.

574069R1

O-RING,0.750" ID x .062"

9шт.

KIT ASSY, port plate repair

1шт.

O-RING, 3/32 x 41/64 ID

1шт.
