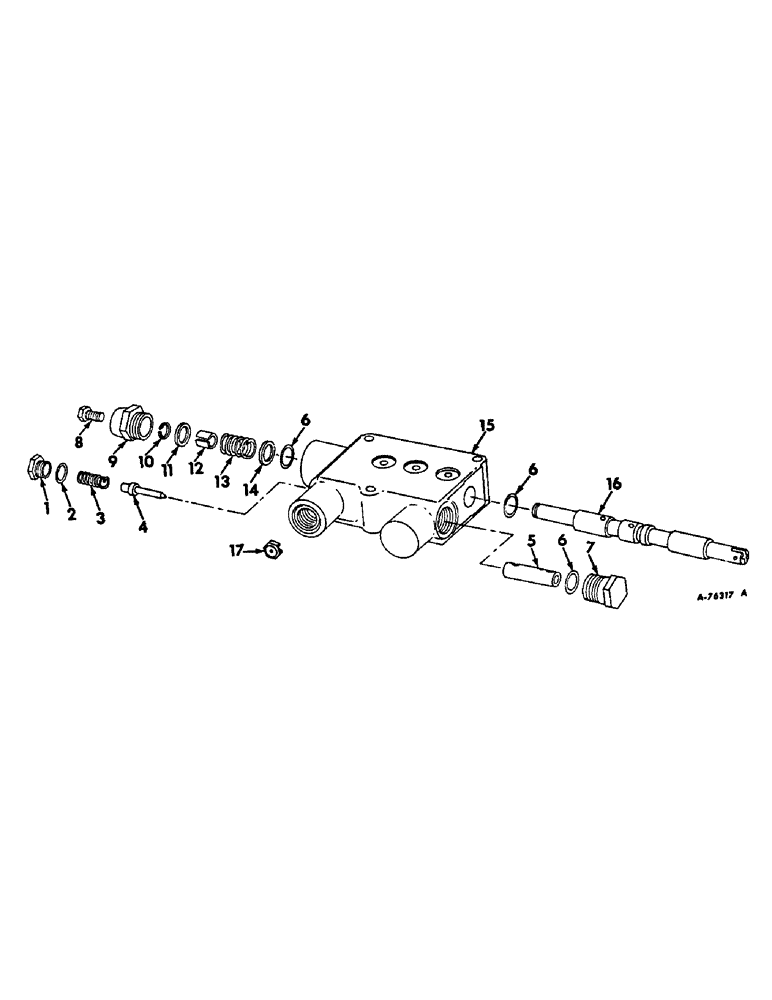

Запчасти Case IH 315 (F-34) - HYDRAULICS SYSTEM, HYDRAULIC REEL LIFT VALVE (07) - HYDRAULIC SYSTEM

935585R92

VALVE ASSY, hyd reel lift three-way

1шт.

272401

GASKET,Hex, 5/16" - 18 x 4 3/4", Gr 5

SCREW, 5/16 x 4-3/4 C-Z hex-hd cap, For hydrostatic ground drive

3шт.

20484R1

BOLT,Hex, 5/16" - 18 x 6 1/2", Gr 5

SCREW, 5/16 x 6-1/2 C-Z hex-hd cap, For belt drive transmission

3шт.

1

588347R1

PLUG

1шт.

2

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

1шт.

3

574789R1

SPRING

lockout

1шт.

4

588351R1

POPPET ASSY

1шт.

5

935586R1

PLUNGER, lockout

1шт.

6

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

3шт.

7

588342R1

PLUG

hex.

1шт.

8

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

9

588343R91

CAP ASSY

1шт.

10

572998R1

RING, snap

1шт.

11

557268R1

WASHER

1шт.

12

588345R1

SLEEVE

spool

1шт.

13

588353R1

SPRING

spool centering

1шт.

14

11002VA

WASHER

1шт.

15

BODY, Order valve assy 935585R92

1шт.

16

SPOOL, Order valve assy 935585R92

1шт.

17

164787C1

PLATE, valve orifice

1шт.

159644C91

KIT

seal repair, Consists of

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3шт.

588351R91

VALVE

POPPET ASSY

1шт.

155199C91

VALVE

ASSY, flow control

1шт.
