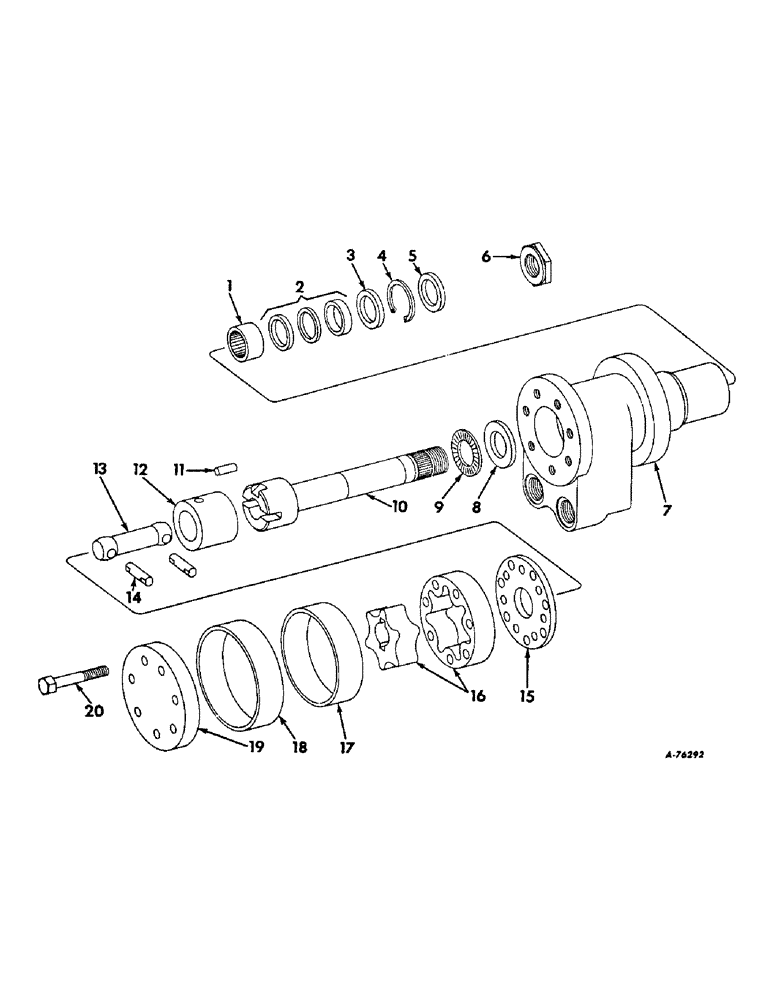

Запчасти Case IH 315 (F-33) - HYDRAULICS SYSTEM, STEERING HAND PUMP ASSY (07) - HYDRAULIC SYSTEM

378578R94

HYDRAULIC STEERING

PUMP ASSY, steering hand

1шт.

378578R93

HYDRAULIC STEERING

PUMP ASSY, steering hand

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, needle

1шт.

2

379782R92

SERVICE KIT

PACKAGE, steering hand pump service

1шт.

3

379786R1

WASHER

pump shaft

1шт.

4

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, pump shaft

1шт.

5

226032R1

SEAL

steering hand pump dust, Not included in pump assy

1шт.

6

F19646

LOCK NUT,13/16"-20, Thin

NUT, coupling shaft wheel

1шт.

7

379694R91

BODY

PUMP BODY W/BEARING ASSY, Includes ref nos. 1 and 12

1шт.

8

379785R1

THRUST WASHER

RACE, needle thrust

1шт.

9

379783R91

THRUST BEARING

BEARING, needle

1шт.

10

379784R1

SHAFT

coupling

1шт.

11

379700R1

PIN

pump spool

1шт.

12

COMMUTATOR, Order body assy 379694R91

1шт.

13

379701R1

LINK

pump

1шт.

14

379693R1

PIN

pump link

2шт.

15

379695R1

SPACER

pump

1шт.

16

379697R2

NO LONGER SERVICED

ROTOR SET

1шт.

17

379781R1

BOOT

SEAL, motor

1шт.

18

379696R1

RING

RETAINER, seal

1шт.

19

379698R1

COVER

END, cover hydraulic pump

1шт.

20

379699R1

BOLT,Spcl, Hex, 5/16" - 18 x 1 3/4", Gr 5, HT

pump end cover

7шт.
