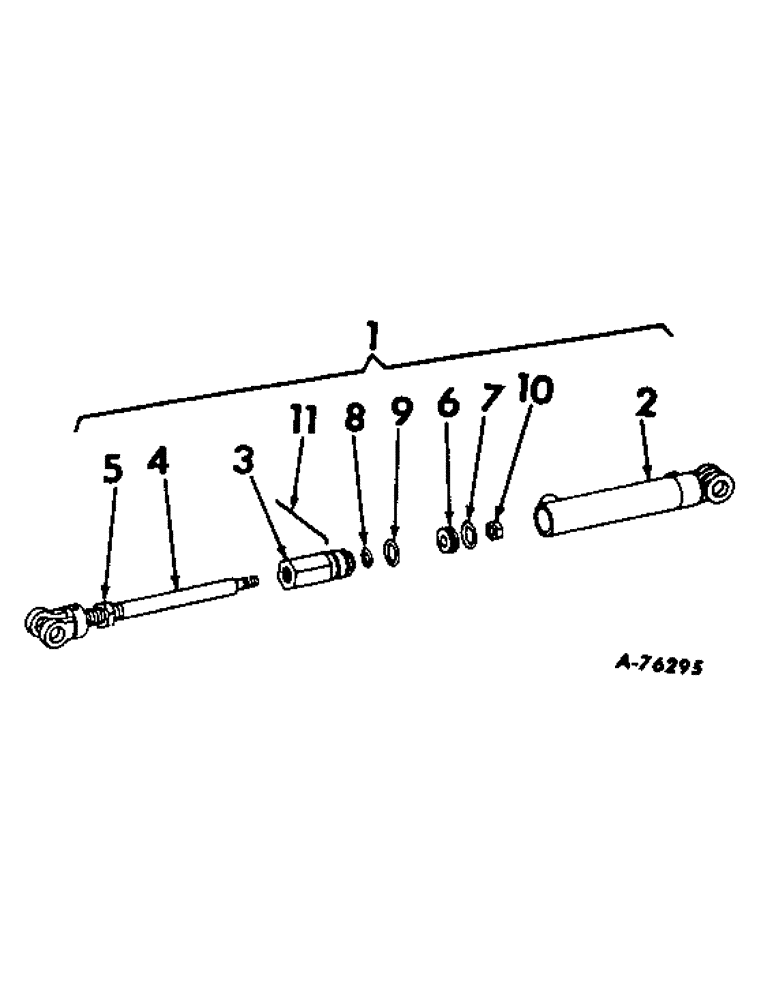

Запчасти Case IH 315 (F-28) - HYDRAULICS SYSTEM, PROPULSION CONTROL CYLINDER, NOT HYDROSTATIC GROUND DRIVE (07) - HYDRAULIC SYSTEM

1

387864R91

CYLINDER, hydraulic propulsion control

1шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

PIN, 5/8 x 1-3/4 std-hd

1шт.

PO26455

LARGE PIN,5/8" x 1 7/8"

PIN, 5/8 x 1-7/8 std-hd

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

615131R1

WASHER

21/32 x 1 x 22 ga

2шт.

2

387865R91

TUBE,7.762" Length

ASSY

1шт.

3

381825R1

HEAD

1шт.

4

381826R11

PISTON ROD

ROD ASSY

1шт.

5

381827R1

NUT

1/2 lock

1шт.

6

381828R1

PISTON

HEAD, piston

1шт.

7

384598R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

3/4 x 1 x 1/8

1шт.

8

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1/2 x 11/16 x 3/32

1шт.

9

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

1шт.

10

381829R1

NUT

5/16 lock

1шт.

11

381830R1

ELECTRICAL WIRE

RETAINER, cylinder head

1шт.
