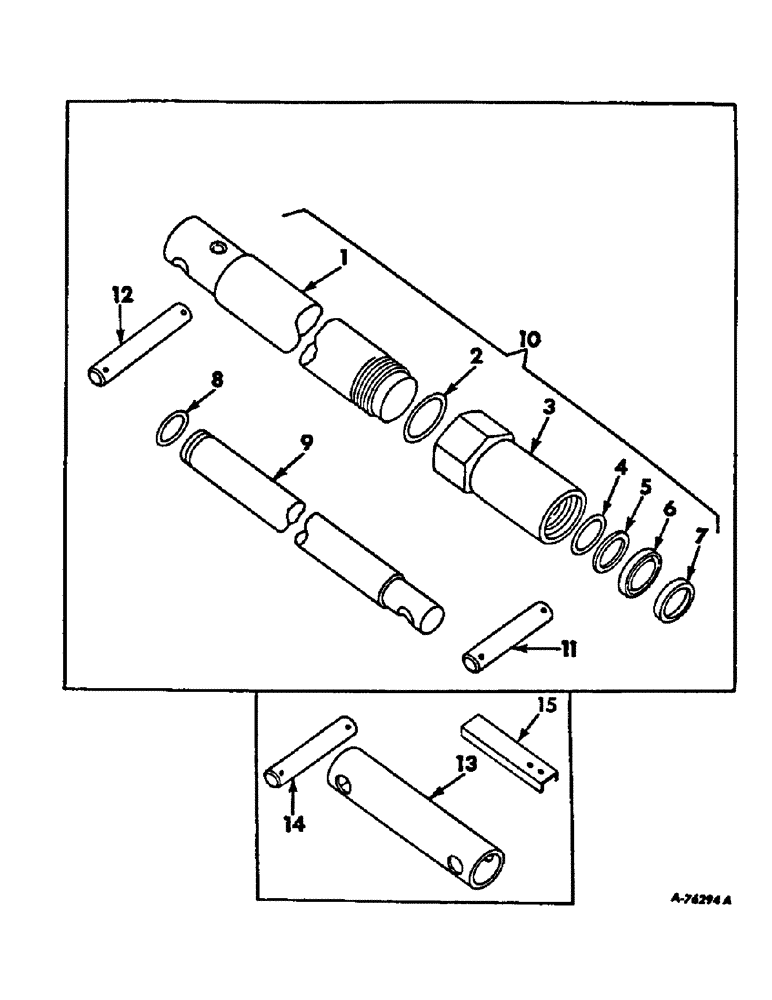

Запчасти Case IH 315 (F-27) - HYDRAULICS SYSTEM, PLATFORM LIFT CYLINDER AND EXTENSION (07) - HYDRAULIC SYSTEM

1

383775R11

TUBE ASSY, cylinder 17.87" Length

1шт.

2

366581R1

O-RING,2.612" ID x 0.103" Width

2-5/8 x 2-13/16 x 3/32

1шт.

3

383778R11

HEAD

ASSY, rod end, Includes ref nos. 6 and 7

1шт.

4

464048R1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2 x 2-3/8 x 3/16

1шт.

5

378726R1

BACK-UP RING

piston rod back-up

1шт.

6

383783R1

SEAL

SEAL, piston rod dust

1шт.

7

383779R1

RETAINER

piston rod dust seal

1шт.

8

378752R1

RING, PISTON

rod stop

1шт.

9

383780R2

ROD, piston

1шт.

10

383762R92

CYLINDER ASSY, platform hyd lift, Includes ref no. 1 through 9

2шт.

11

564986R1

PIN, platform hyd lift cyl front

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

4шт.

12

573762R1

PIN,25.4mm OD x 130.97mm L

platform hyd lift cyl rear

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

4шт.

13

610908R2

EXTENSION, feeder lift cylinder 5 inch, For machines w/long feed conveyors

2шт.

13

607102R2

EXTENSION, feeder lift cylinder 14 inch, For machines w/extra long feed conveyors

2шт.

13

935601R2

EXTENSION, platform lift 8-1/4 inch, Long feeder for maze

2шт.

13

164814C1

EXTENSION, platform lift 19 inch, Extra long feeder for use w/wedge attachment

2шт.

14

564986R1

PIN, cylinder lift extension

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

4шт.

15

169015C1

CHANNEL, feed plate guide, long feeder for maize

1шт.

383692R92

KIT ASSY, hydraulic, For cylinder assy 383762R91, Consists of

1шт.

464048R1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

1шт.

378726R1

BACK-UP RING

1шт.

383783R1

SEAL

SEAL

1шт.

383779R1

RETAINER

1шт.

366581R1

O-RING,2.612" ID x 0.103" Width

1шт.
